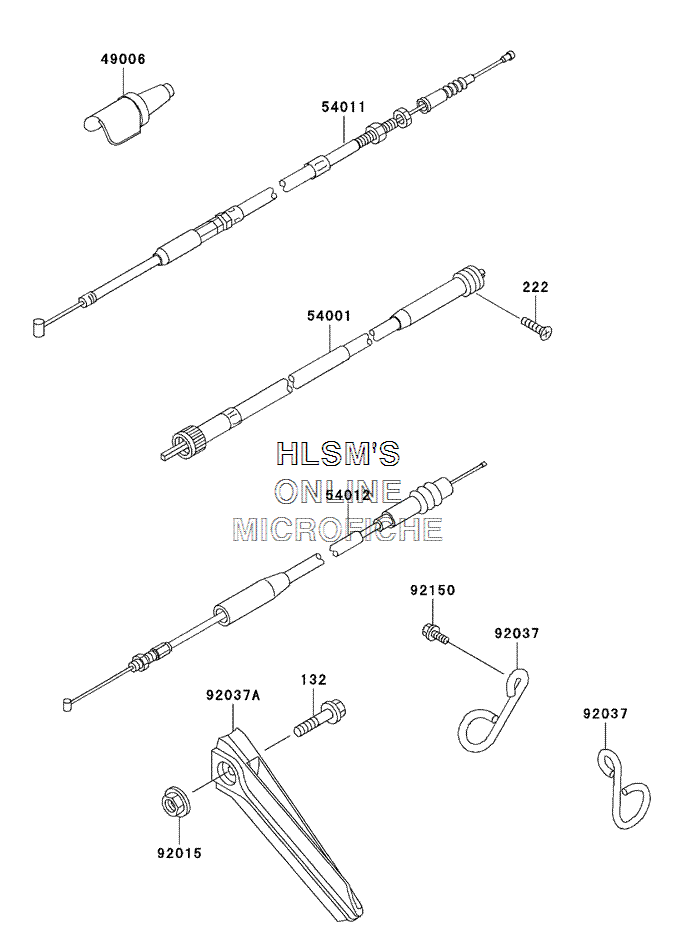

CABLES для Kawasaki KDX 220R - 2004 года выпуска
-
№АртикулНазвание
-
132132G0630 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
222222C0520 SCREW, CSK, RD, CROSSCREW, CSK, RD, CROS
-
4900649006-1189 BOOTBOOT
-
5400154001-1201 CABLE, SPEEDMETERCABLE, SPEEDMETER
-
5401154011-1342 CABLE, CLUTCHCABLE, CLUTCH
-
5401254012-1485 CABLE, THROTTLECABLE, THROTTLE
-
9201592015-1193 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
-
9203792037-1064 CLAMP, CABLECLAMP, CABLE
-
92037A92037-1481 CLAMP, CABLECLAMP, CABLE
-
9215092150-1340 BOLT, 6X14BOLT, 6X14
