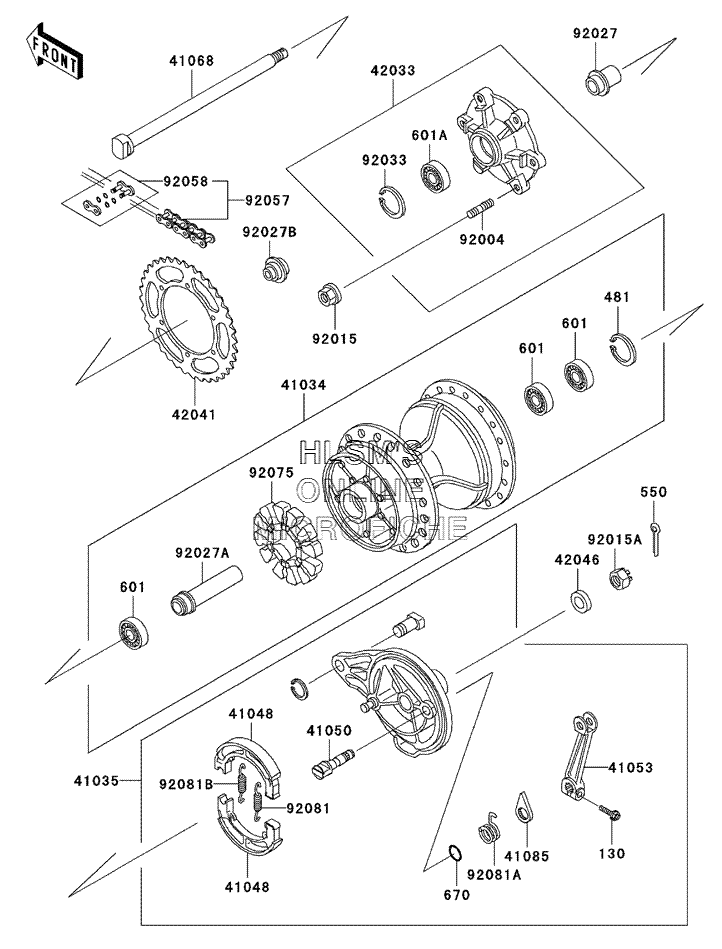

REAR HUB для Kawasaki KLR250 - 2004 года выпуска
-
№АртикулНазвание
-
130130G0625 BOLT, FLANGED, 6X25BOLT, FLANGED, 6X25
-
481481J3500 CIRCLIP, TYPE, C, 35MMCIRCLIP, TYPE, C, 35MM
-
550550D4035 PIN, COTTER, 4.0X35PIN, COTTER, 4.0X35
-
601601B6003UG BEARING, BALL, #6003UGBEARING, BALL, #6003UG
-
601A601B6004UG BEARING, BALL, #6004UGBEARING, BALL, #6004UG
-
670670B2015 O-RING, 15MMO-RING, 15MM
-
4103441034-1113 DRUM, ASSY, REAR BRAKEDRUM, ASSY, REAR BRAKE
-
4103541035-1289 PANEL, ASSY, BRAKE, REARPANEL, ASSY, BRAKE, REAR
-
4104841048-1084 SHOE, BRAKESHOE, BRAKE
-
4105041050-1058 CAM, BRAKECAM, BRAKE
-
4105341053-1061 LEVER, BRAKE CAMLEVER, BRAKE CAM
-
4106841068-1178 AXLE, REARAXLE, REAR
-
4108541085-005 INDICATORINDICATOR
-
4203342033-1111 COUPLING, ASSY, REAR HUBCOUPLING, ASSY, REAR HUB
-
4204142041-1191 SPROCKET, HUB, 44TSPROCKET, HUB, 44T
-
4204642046-009 WASHER, 17.3X32X3.2WASHER, 17.3X32X3.2
-
9200492004-1149 STUD, 8X18STUD, 8X18
-
9201592015-1432 NUT, 8MMNUT, 8MM
-
92015A92015-1947 NUT, CASTLE, 16MMNUT, CASTLE, 16MM
-
9202792027-1770 COLLAR, REAR HUB COUPLING, L=23COLLAR, REAR HUB COUPLING, L=23
-
92027A92027-1823 COLLAR, REAR BRAKE DRUM, L=78COLLAR, REAR BRAKE DRUM, L=78
-
92027B92027-1826 COLLAR, REAR HUB COUPLING, L=13COLLAR, REAR HUB COUPLING, L=13
-
9203392033-1041 RING, SNAP, 42MMRING, SNAP, 42MM
-
9205792057-0015 CHAIN, DRIVE, EK520LV, OX104LCHAIN, DRIVE, EK520LV, OX104L
-
9205892058-1100 JOINT, CHAIN, DRIVEJOINT, CHAIN, DRIVE
-
9207592075-1068 DAMPER, SHOCK, REAR HUBDAMPER, SHOCK, REAR HUB
-
9208192081-1550 SPRING, BRAKE SHOESPRING, BRAKE SHOE
-
92081A92081-1615 SPRING, BRAKE CAM LEVER RETURNSPRING, BRAKE CAM LEVER RETURN
-
92081B92081-1766 SPRING, BRAKE SHOESPRING, BRAKE SHOE
