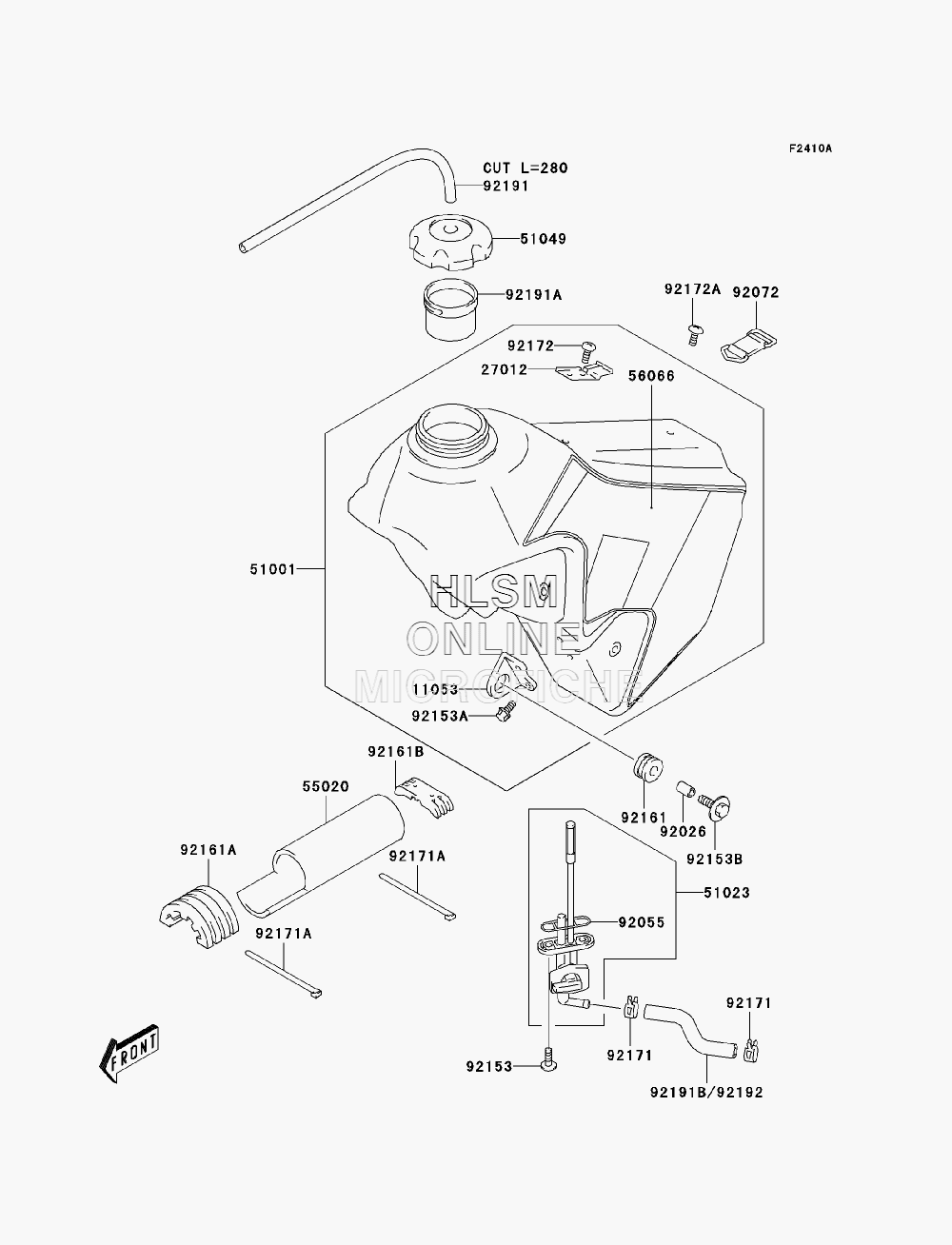

FUEL TANK для Kawasaki KLX 400R (KLX400-B2) - 2004 года выпуска
-
№АртикулНазвание
-
1105311053-S001 BRACKET, FUEL TANK, FRONTBRACKET, FUEL TANK, FRONT
-
2701227012-S004 HOOKHOOK
-
5100151001-S015-539 TANK-COMP-FUEL, (BLACK)TANK-COMP-FUEL, (BLACK)
-
5102351023-S011 TAP-ASSYTAP-ASSY
-
5104951049-S004 CAP-TANKCAP-TANK
-
5502055020-S027 GUARD, FUEL TANKGUARD, FUEL TANK
-
5606656066-S026-568 PATTERN SET, FUEL TANK, (WHITE/BLACK/GREEN)PATTERN SET, FUEL TANK, (WHITE/BLACK/GREEN)
-
9202692026-S049 SPACER, FUEL TANK, FRONTSPACER, FUEL TANK, FRONT
-
9205592055-S090 RING-O, TAPRING-O, TAP
-
9207292072-S004 BAND, FUEL TANK, REARBAND, FUEL TANK, REAR
-
9215392153-S001 BOLTBOLT
-
92153A92153-S144 BOLTBOLT
-
92153B92153-S367 BOLTBOLT
-
9216192161-S061 DAMPER, FUEL TANKDAMPER, FUEL TANK
-
92161A92161-S131 DAMPER, FUEL TANK, UPPERDAMPER, FUEL TANK, UPPER
-
92161B92161-S146 DAMPERDAMPER
-
9217192171-S005 CLAMPCLAMP
-
92171A92171-S056 CLAMP, FUEL TANK CUSHIONCLAMP, FUEL TANK CUSHION
-
9217292172-S017 SCREWSCREW
-
92172A92172-S055 SCREWSCREW
-
9219192191-S028 TUBE, FUEL TANK BREATHERTUBE, FUEL TANK BREATHER
-
92191A92191-S029 TUBE, FUEL TANK FILLERTUBE, FUEL TANK FILLER
-
92191B92191-S087 TUBE (EXCEPT CALIF.)TUBE (EXCEPT CALIF.)
-
9219292192-S010 TUBE (CALIF. ONLY)TUBE (CALIF. ONLY)
