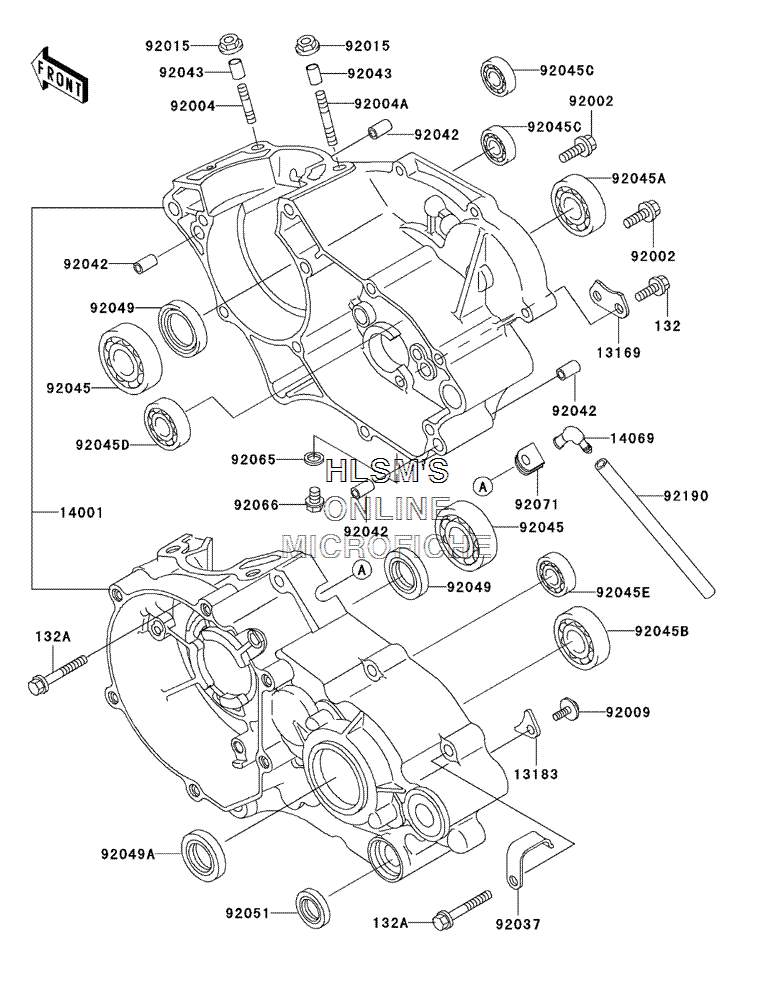

CRANKCASE для Kawasaki KX 100 - 2004 года выпуска
-
№АртикулНазвание
-
132132G0612 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
132A132G0635 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
1316913169-012 PLATE, CHANGE DRUMPLATE, CHANGE DRUM
-
1318313183-1182 PLATEPLATE
-
1400114001-1313 SET, CRANKCASESET, CRANKCASE
-
1406914069-002 BREATHER, CRANKCASEBREATHER, CRANKCASE
-
9200292002-1659 BOLT, 6X16BOLT, 6X16
-
9200492004-1252 STUD, 8X28.5STUD, 8X28.5
-
92004A92004-1254 STUD, 8X37STUD, 8X37
-
9200992009-1563 SCREW, 6X10SCREW, 6X10
-
9201592015-1143 NUT, 8MMNUT, 8MM
-
9203792037-1318 CLAMP, HARNESSCLAMP, HARNESS
-
9204292042-007 PIN, DOWEL, 6.3X8X14PIN, DOWEL, 6.3X8X14
-
9204392043-1264 PIN, 8.2X10X14PIN, 8.2X10X14
-
9204592045-1059 BEARING, BALL, R, 6304C3BEARING, BALL, R, 6304C3
-
92045A92045-1118 BEARING, BALL, 6004TMBBEARING, BALL, 6004TMB
-
92045B92045-1226 BEARING, BALL, 6204BEARING, BALL, 6204
-
92045C92045-1304 BEARING, BALL, 626MC3BEARING, BALL, 626MC3
-
92045D92045-1360 BEARING, BALL, TMB002BEARING, BALL, TMB002
-
92045E92045-1450 BEARING, BALL, 16101JRXC3BEARING, BALL, 16101JRXC3
-
9204992049-1188 SEAL, OIL, SD20407GSSEAL, OIL, SD20407GS
-
92049A92049-1292 SEAL, OIL, TC25375SEAL, OIL, TC25375
-
9205192051-005 SEAL, OIL, TB13225.5SEAL, OIL, TB13225.5
-
9206592065-058 GASKET, 10.5X16X1GASKET, 10.5X16X1
-
9206692066-1437 PLUG, DRAINPLUG, DRAIN
-
9207192071-042 GROMMET, BREATHERGROMMET, BREATHER
-
9219092190-1116 TUBE, 6X9X330TUBE, 6X9X330
