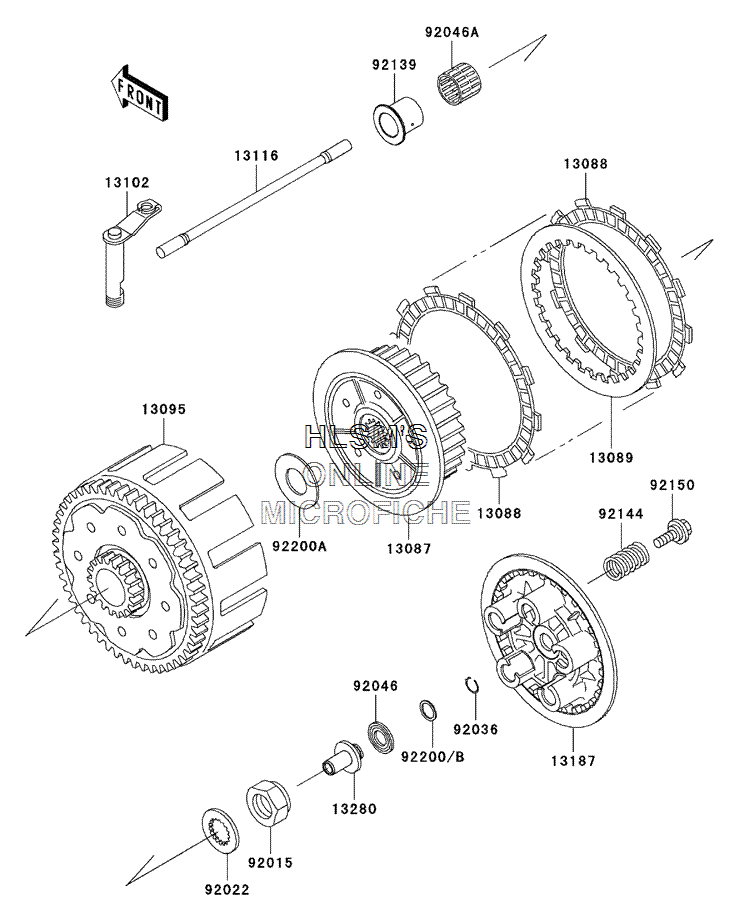

CLUTCH для Kawasaki KX 250 - 2004 года выпуска
-
№АртикулНазвание
-
1308713087-1168 HUB, CLUTCHHUB, CLUTCH
-
1308813088-1089 PLATE, FRICTIONPLATE, FRICTION
-
1308913089-1066 PLATE, CLUTCHPLATE, CLUTCH
-
1309513095-1419 HOUSING, COMP, CLUTCHHOUSING, COMP, CLUTCH
-
1310213102-1154 RELEASE, COMP, CLUTCHRELEASE, COMP, CLUTCH
-
1311613116-1172 ROD, PUSHROD, PUSH
-
1318713187-1090 PLATE, CLUTCH OPERATINGPLATE, CLUTCH OPERATING
-
1328013280-1284 HOLDER, CLUTUCH RELEASEHOLDER, CLUTUCH RELEASE
-
9201592015-1725 NUT, 20MMNUT, 20MM
-
9202292022-1942 WASHERWASHER
-
9203692036-007 RING, SNAP, PISTON PINRING, SNAP, PISTON PIN
-
9204692046-1190 BEARING, NEEDLE, FNTA, 1326BEARING, NEEDLE, FNTA, 1326
-
92046A92046-1304 BEARING, NEEDLE, K30X30X29.8BEARING, NEEDLE, K30X30X29.8
-
9213992139-1100 BUSHINGBUSHING
-
9214492144-1351 SPRING, CLUTCHSPRING, CLUTCH
-
9215092150-1489 BOLT, 6X22BOLT, 6X22
-
9220092200-0045 WASHER, 13.4X25X1.0WASHER, 13.4X25X1.0
-
92200A92200-1143 WASHER, 22.5X47X2WASHER, 22.5X47X2
-
92200B92200-1548 WASHER, T=1.5WASHER, T=1.5
