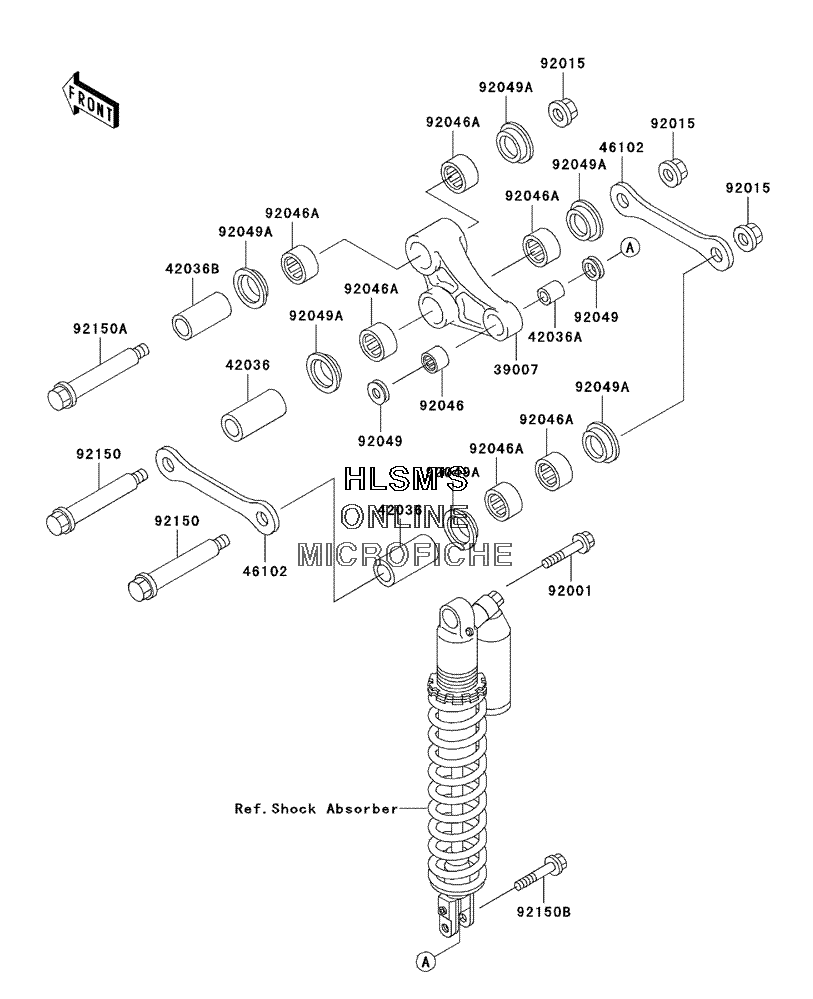

SUSPENSION - REAR для Kawasaki KDX 220R - 2005 года выпуска
-
№АртикулНазвание
-
3900739007-1229 ARM, SUSPENSION, UNI TRAKARM, SUSPENSION, UNI TRAK
-
4203642036-1245 SLEEVE, 15X22X57SLEEVE, 15X22X57
-
42036A42036-1248 SLEEVE, 10X16X19SLEEVE, 10X16X19
-
42036B42036-1309 SLEEVE, 15X22X45SLEEVE, 15X22X45
-
4610246102-1358 ROD, SUSPENSIONROD, SUSPENSION
-
9200192001-1499 BOLT, FLANGED, 10X44BOLT, FLANGED, 10X44
-
9201592015-1433 NUT, FLANGED, 12MMNUT, FLANGED, 12MM
-
9204692046-1192 BEARING, NEEDLE, 16BM2212BEARING, NEEDLE, 16BM2212
-
92046A92046-1216 BEARING, NEEDLE, 22BM2816BEARING, NEEDLE, 22BM2816
-
9204992049-1330 SEAL, OILSEAL, OIL
-
92049A92049-1402 SEAL, OIL, MHA22 28 5.7F, 1SEAL, OIL, MHA22 28 5.7F, 1
-
9215092150-1213 BOLT, ROD, 12X85BOLT, ROD, 12X85
-
92150A92150-1701 BOLT, FLANGED, 12X76BOLT, FLANGED, 12X76
-
92150B92150-1711 BOLT, FLANGED, 10X40BOLT, FLANGED, 10X40
