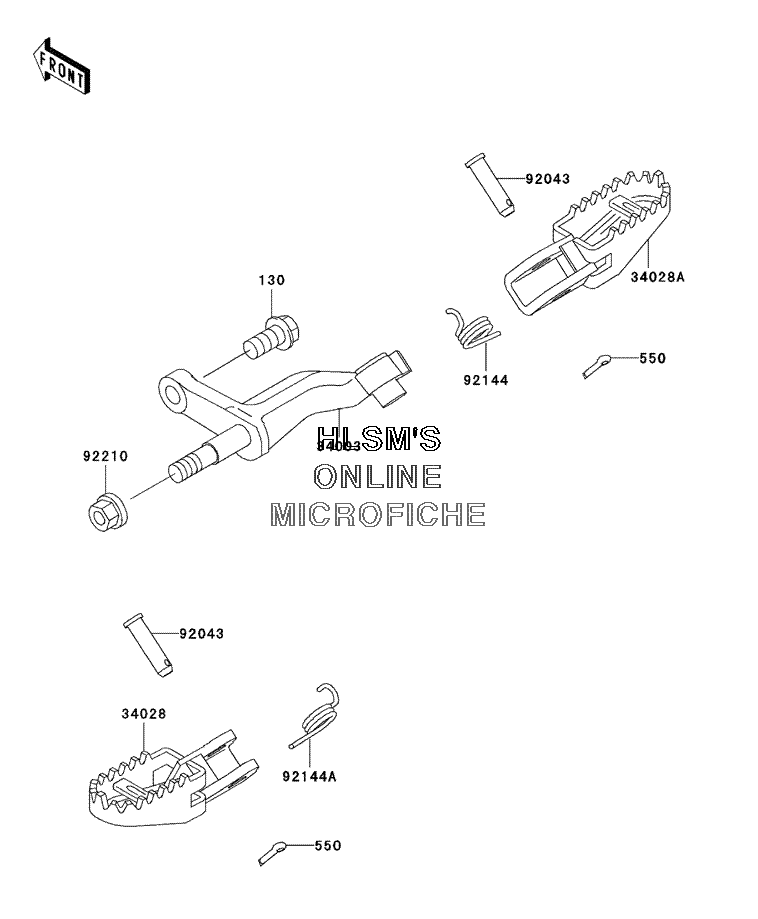

FOOTRESTS для Kawasaki KLX 300R - 2005 года выпуска
-
№АртикулНазвание
-
130130P1020 BOLT, FLANGED, 10X20BOLT, FLANGED, 10X20
-
550550D2515 PIN, COTTER, 2.5X15PIN, COTTER, 2.5X15
-
3400334003-1401-458 HOLDER, STEP (RIGHT) (P.SILVER)HOLDER, STEP (RIGHT) (P.SILVER)
-
3402834028-1361 STEP, FRONT (LEFT)STEP, FRONT (LEFT)
-
34028A34028-1362 STEP, FRONT (RIGHT)STEP, FRONT (RIGHT)
-
9204392043-115 PIN, 8X35.5PIN, 8X35.5
-
9214492144-1685 SPRING, STEP RETURN (RIGHT)SPRING, STEP RETURN (RIGHT)
-
92144A92144-1749 SPRING, STEP RETURN (LEFT)SPRING, STEP RETURN (LEFT)
-
9221092210-1080 NUT, LOCK, FLANGED, 10MMNUT, LOCK, FLANGED, 10MM
Все узлы модели:
- AIR CLEANER
- BRAKE - FRONT
- BRAKE - MASTER CYLINDER - FRONT
- BRAKE - MASTER CYLINDER - REAR
- BRAKE - REAR
- BRAKE PEDAL
- CABLES
- CAMSHAFT(S)/TENSIONER
- CARBURETOR
- CLUTCH
- CRANKCASE
- CRANKSHAFT
- CYLINDER - PISTON(S)
- CYLINDER HEAD
- CYLINDER HEAD COVER
- DECALS
- ENGINE COVER
- ENGINE MOUNT
- FENDER(S)
- • FOOTRESTS
- FRAME
- FRAME FITTING(S)
- FRONT FORK
- FRONT HUB
- FUEL TANK
- GEAR CHANGE DRUM W/ SHIFT FORK(S)
- GEAR CHANGE MECHANISM
- GENERATOR
- HANDLEBAR
- HEADLIGHT(S)
- IGNITION SYSTEM
- KICKSTARTER MECHANISM
- LABELS
- MANUALS
- METER(S)
- MUFFLER(S)
- OIL PUMP
- OWNER TOOLS
- RADIATOR
- REAR HUB
- REFLECTORS (CANADA ONLY)
- SEAT
- SIDE COVERS
- STAND(S)
- SUSPENSION - REAR
- SUSPENSION - SHOCK ABSORBER
- SUSPENSION - SWINGARM
- TAILLIGHT(S)
- TRANSMISSION
- VALVE(S)
- WATER PUMP
- WHEELS/TIRES
