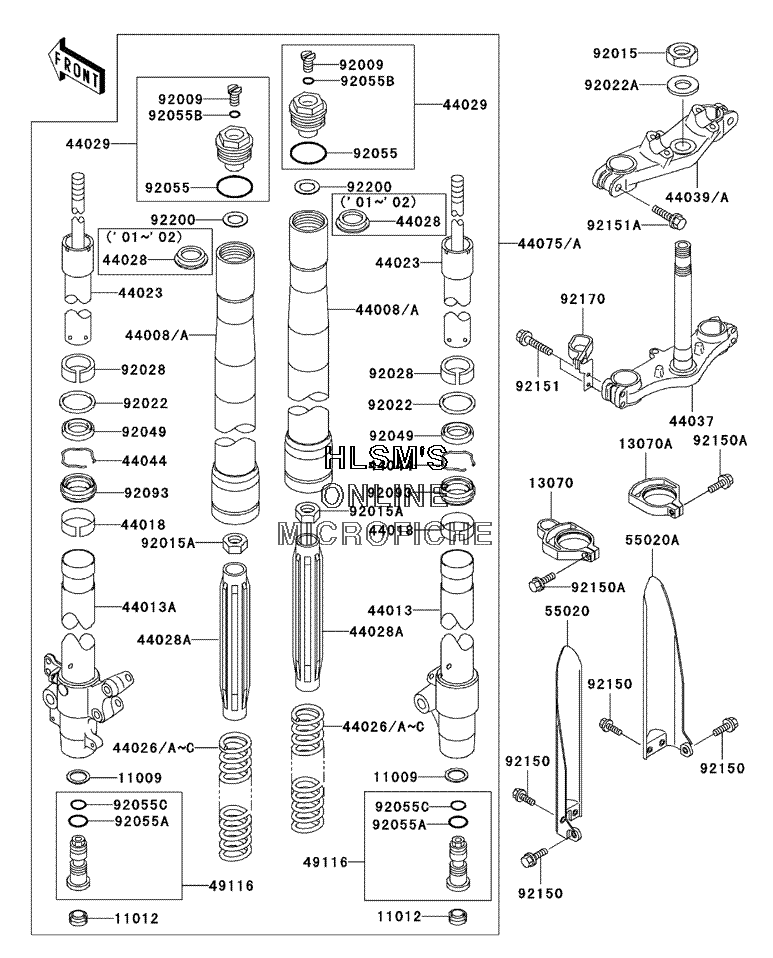

FRONT FORK для Kawasaki KX 100 - 2005 года выпуска
-
№АртикулНазвание
-
1100911009-1592 GASKET, FORK CYLINDER BOLTGASKET, FORK CYLINDER BOLT
-
1101211012-1692 CAPCAP
-
1307013070-1310-RZ GUIDE, PROTECTOR (LEFT) (WHITE)GUIDE, PROTECTOR (LEFT) (WHITE)
-
13070A13070-1311-RZ GUIDE, PROTECTOR (RIGHT) (WHITE)GUIDE, PROTECTOR (RIGHT) (WHITE)
-
4400844008-1041-JS PIPE, FORK OUTER (BRONZE)PIPE, FORK OUTER (BRONZE)
-
4401344013-1442 PIPE, FORK INNER (RIGHT)PIPE, FORK INNER (RIGHT)
-
44013A44013-1484 PIPE, FORK INNER (LEFT)PIPE, FORK INNER (LEFT)
-
4401844018-1058 PISTON, FORKPISTON, FORK
-
4402344023-1119 CYLINDER, SET, FORKCYLINDER, SET, FORK
-
4402644026-1633 SPRING, FRONT FORK, K=0.28 (OPT)SPRING, FRONT FORK, K=0.28 (OPT)
-
44026A44026-1634 SPRING, FRONT FORK, K=0.29SPRING, FRONT FORK, K=0.29
-
44026B44026-1635 SPRING, FRONT FORK, K=0.30 (OPT)SPRING, FRONT FORK, K=0.30 (OPT)
-
44026C44026-1671 SPRING, FRONT FORK, K=0.27 (OPT)SPRING, FRONT FORK, K=0.27 (OPT)
-
44028A44028-1090 GUIDE, FORK SPRINGGUIDE, FORK SPRING
-
4402944029-1152 SEAT, FORK SPRINGSEAT, FORK SPRING
-
4403744037-1360 HOLDER, FORK UNDERHOLDER, FORK UNDER
-
4403944039-0023-458 HOLDER, FORK UPPER (P.SILVER)HOLDER, FORK UPPER (P.SILVER)
-
4404444044-015 RING, SNAPRING, SNAP
-
4407544075-1131-JS DAMPER, SET, FORK (BRONZE)DAMPER, SET, FORK (BRONZE)
-
4911649116-1153 VALVE, ASSY, FORKVALVE, ASSY, FORK
-
5502055020-1611-RZ GUARD, FORK (LEFT) (WHITE)GUARD, FORK (LEFT) (WHITE)
-
55020A55020-1612-RZ GUARD, FORK (RIGHT) (WHITE)GUARD, FORK (RIGHT) (WHITE)
-
9200992009-1568 SCREWSCREW
-
9201592015-1653 NUT, STEERING STEM, 22MMNUT, STEERING STEM, 22MM
-
92015A92015-1839 NUTNUT
-
9202292022-1275 WASHER, FRONT FORKWASHER, FRONT FORK
-
92022A92022-1873 WASHER, STEERING STEMWASHER, STEERING STEM
-
9202892028-1656 BUSHINGBUSHING
-
9204992049-1394 SEAL, OIL, FORK OUTER TUBESEAL, OIL, FORK OUTER TUBE
-
9205592055-1123 O-RINGO-RING
-
92055A92055-1156 O-RINGO-RING
-
92055B92055-1441 O-RINGO-RING
-
92055C92055-1502 O-RING, FORK VALVEO-RING, FORK VALVE
-
9209392093-1426 SEAL, FORK OUTER TUBESEAL, FORK OUTER TUBE
-
9215092150-1340 BOLT, 6X14BOLT, 6X14
-
92150A92150-1802 BOLT, 5X16BOLT, 5X16
-
9215192151-1877 BOLT, FLANGED, 8X40BOLT, FLANGED, 8X40
-
92151A92151-1878 BOLT, FLANGED, 8X35BOLT, FLANGED, 8X35
-
9217092170-1810 CLAMPCLAMP
-
9220092200-1655 WASHERWASHER
