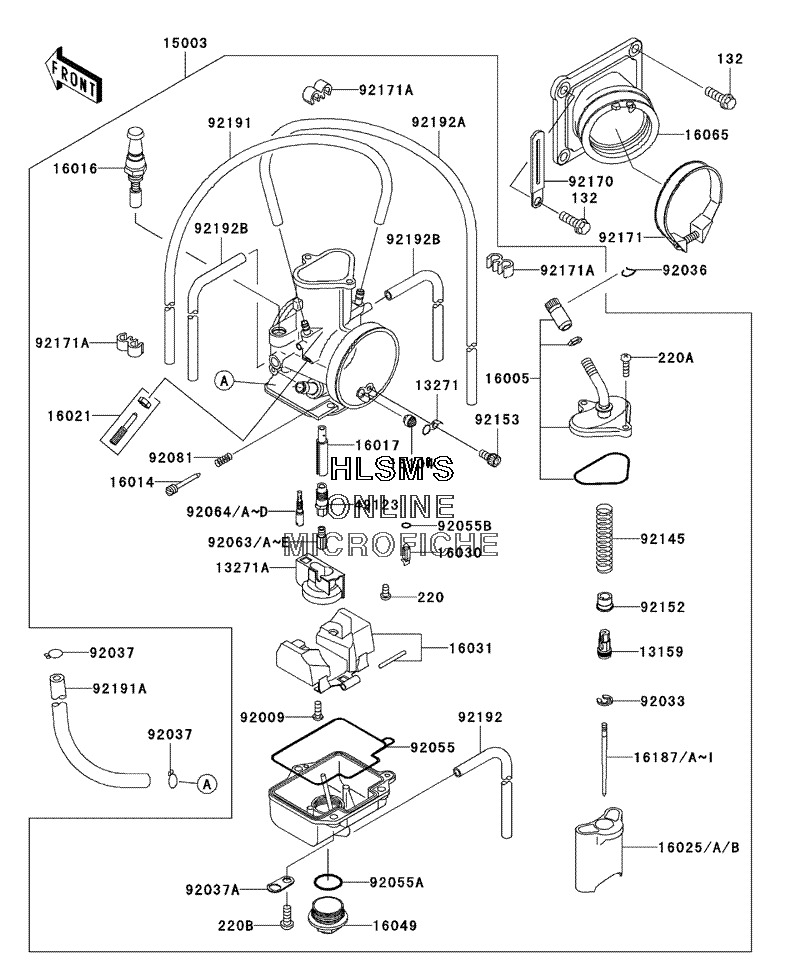

CARBURETOR для Kawasaki KX 125 - 2005 года выпуска
-
№АртикулНазвание
-
1315913159-1067 CONNECTOR, THROTTLE CABLECONNECTOR, THROTTLE CABLE
-
1327113271-0020 PLATEPLATE
-
13271A13271-0021 PLATEPLATE
-
1500315003-0059 CARBURETOR, ASSYCARBURETOR, ASSY
-
1600516005-0002 TOP, CHAMBERTOP, CHAMBER
-
1601416014-0008 SCREW, PILOT AIRSCREW, PILOT AIR
-
1601616016-0001 PLUNGERPLUNGER
-
1601716017-0001 JET, NEEDLE, S, 9JET, NEEDLE, S, 9
-
1602116021-1237 SCREW, THROTTLE STOPSCREW, THROTTLE STOP
-
1602516025-0002 VALVE, THROTTLE, CA5.5 (OPT)VALVE, THROTTLE, CA5.5 (OPT)
-
16025A16025-0003 VALVE, THROTTLE, CA 5.75VALVE, THROTTLE, CA 5.75
-
16025B16025-0004 VALVE, THROTTLE, CA6.0 (OPT)VALVE, THROTTLE, CA6.0 (OPT)
-
1603016030-1096 VALVE, FLOATVALVE, FLOAT
-
1603116031-0003 FLOAT, ASSYFLOAT, ASSY
-
1604916049-0001 COVER, MAIN JETCOVER, MAIN JET
-
1606516065-0010 HOLDER, CARBURETORHOLDER, CARBURETOR
-
1610416104-0001 FILTER, COMPFILTER, COMP
-
1618716187-0001 NEEDLE, JET, 6CHJ10, 80 (OPT)NEEDLE, JET, 6CHJ10, 80 (OPT)
-
16187A16187-0002 NEEDLE, JET, 6CHJ10, 81 (OPT)NEEDLE, JET, 6CHJ10, 81 (OPT)
-
16187B16187-0003 NEEDLE, JET, 6CHJ10, 82NEEDLE, JET, 6CHJ10, 82
-
16187C16187-0004 NEEDLE, JET, 6CHJ10, 83 (OPT)NEEDLE, JET, 6CHJ10, 83 (OPT)
-
16187D16187-0005 NEEDLE, JET, 6CHJ10, 84 (OPT)NEEDLE, JET, 6CHJ10, 84 (OPT)
-
16187E16187-0006 NEEDLE, JET, 6CHJ11, 80 (OPT)NEEDLE, JET, 6CHJ11, 80 (OPT)
-
16187F16187-0007 NEEDLE, JET, 6CHJ11, 81 (OPT)NEEDLE, JET, 6CHJ11, 81 (OPT)
-
16187G16187-0008 NEEDLE, JET, 6CHJ11, 82 (OPT)NEEDLE, JET, 6CHJ11, 82 (OPT)
-
16187H16187-0009 NEEDLE, JET, 6CHJ11, 83 (OPT)NEEDLE, JET, 6CHJ11, 83 (OPT)
-
16187I16187-0010 NEEDLE, JET, 6CHJ11, 84 (OPT)NEEDLE, JET, 6CHJ11, 84 (OPT)
-
4912349123-0001 HOLDER, MAIN JETHOLDER, MAIN JET
-
9200992009-1853 SCREW, FLOAT VALVESCREW, FLOAT VALVE
-
9203392033-1299 RING, SNAPRING, SNAP
-
9203692036-018 RING, SNAPRING, SNAP
-
9203792037-147 CLAMP, TUBECLAMP, TUBE
-
92037A92037-1474 CLAMPCLAMP
-
9205592055-0001 O-RING, FLOAT CHAMBERO-RING, FLOAT CHAMBER
-
92055A92055-1076 O-RINGO-RING
-
92055B92055-1105 O-RINGO-RING
-
9206392063-0001 JET, MAIN, MJ#470 (OPT)JET, MAIN, MJ#470 (OPT)
-
92063A92063-035 JET, MAIN, #400 (OPT)JET, MAIN, #400 (OPT)
-
92063B92063-1472 JET, MAIN, #410 (OPT)JET, MAIN, #410 (OPT)
-
92063C92063-1473 JET, MAIN, #420JET, MAIN, #420
-
92063D92063-1474 JET, MAIN, #430 (OPT)JET, MAIN, #430 (OPT)
-
92063E92063-1475 JET, MAIN, #440 (OPT)JET, MAIN, #440 (OPT)
-
9206492064-1214 JET, PILOT, #35 (OPT)JET, PILOT, #35 (OPT)
-
92064A92064-1215 JET, PILOT, #37.5 (OPT)JET, PILOT, #37.5 (OPT)
-
92064B92064-1216 JET, PILOT, #40JET, PILOT, #40
-
92064C92064-1217 JET, PILOT, #42.5 (OPT)JET, PILOT, #42.5 (OPT)
-
92064D92064-1218 JET, PILOT, #45 (OPT)JET, PILOT, #45 (OPT)
-
9208192081-1153 SPRING, STOP SCREWSPRING, STOP SCREW
-
9214592145-1401 SPRING, THROTTLE VALVESPRING, THROTTLE VALVE
-
9215292152-1305 COLLAR, THROTTLE VALVECOLLAR, THROTTLE VALVE
-
9215392153-0025 BOLTBOLT
-
9217092170-1514 CLAMPCLAMP
-
9217192171-1105 CLAMPCLAMP
-
92171A92171-1355 CLAMPCLAMP
-
9219192191-0002 TUBE, 3.5X6.5X650TUBE, 3.5X6.5X650
-
92191A92191-1723 TUBE, FUEL PIPETUBE, FUEL PIPE
-
9219292192-0086 TUBE, 3X5X360TUBE, 3X5X360
-
92192A92192-0087 TUBE, 3.5X6.5X590TUBE, 3.5X6.5X590
-
92192B92192-0088 TUBE, 3.5X6.5X430TUBE, 3.5X6.5X430
-
132132G0618 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
220220D0408 SCREW, PAN, CROSSCREW, PAN, CROS
-
220A220D0414 SCREW, PAN, CROSSCREW, PAN, CROS
-
220B220D0514 SCREW, PAN, CROS, 5X14SCREW, PAN, CROS, 5X14
