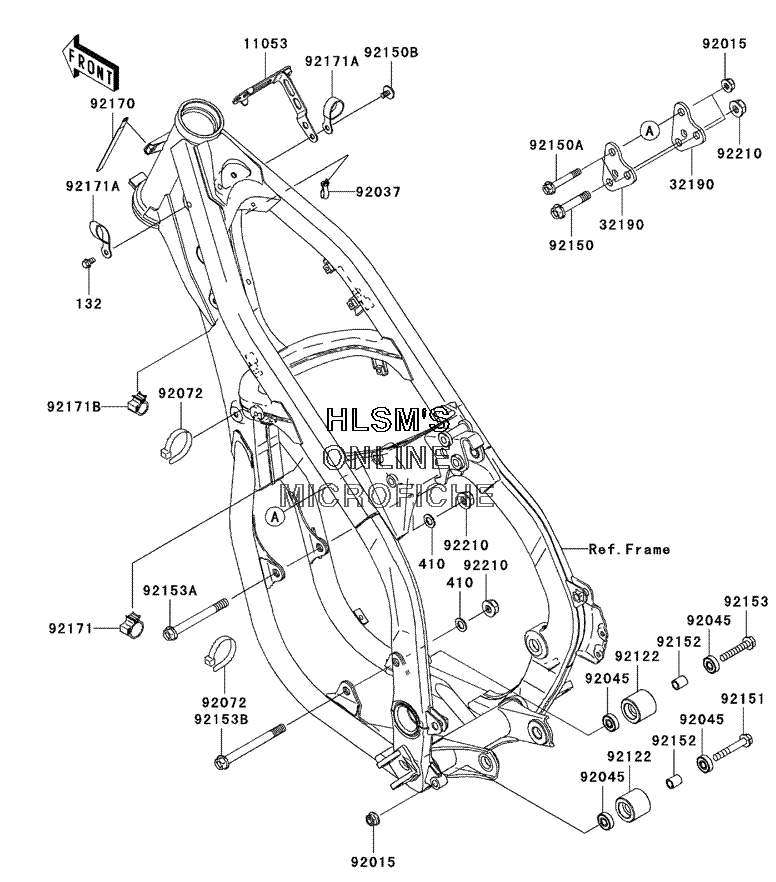

FRAME FITTING(S) для Kawasaki KX 250 - 2005 года выпуска
-
№АртикулНазвание
-
132132L0610 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
410410B1000 WASHER, PLAIN, SMALL, 10MMWASHER, PLAIN, SMALL, 10MM
-
1105311053-1629 BRACKET, IGNITERBRACKET, IGNITER
-
3219032190-0092 BRACKET, ENGINEBRACKET, ENGINE
-
9201592015-1432 NUT, 8MMNUT, 8MM
-
9203792037-1290 CLAMP, SPEED, L=43CLAMP, SPEED, L=43
-
9204592045-1009 BEARING, BALL, 608LLU/2ABEARING, BALL, 608LLU/2A
-
9207292072-1293 BAND, L=140BAND, L=140
-
9212292122-0007 ROLLER, CHAIN GUIDEROLLER, CHAIN GUIDE
-
9215092150-1125 BOLT, FLANGED, 10X50BOLT, FLANGED, 10X50
-
92150A92150-1214 BOLT, FLANGED, 8X50BOLT, FLANGED, 8X50
-
92150B92150-1435 BOLT, 6X12BOLT, 6X12
-
9215192151-1377 BOLT, FLANGED, 8X52BOLT, FLANGED, 8X52
-
9215292152-0211 COLLAR, 8.5X12.5X15.5COLLAR, 8.5X12.5X15.5
-
9215392153-0585 BOLT, FLANGED, 8X45BOLT, FLANGED, 8X45
-
92153A92153-0613 BOLT, FLANGED, 10X95BOLT, FLANGED, 10X95
-
92153B92153-0614 BOLT, FLANGED, 10X105BOLT, FLANGED, 10X105
-
9217092170-1925 CLAMPCLAMP
-
9217192171-0081 CLAMP, DIA=20CLAMP, DIA=20
-
92171A92171-1279 CLAMPCLAMP
-
92171B92171-1424 CLAMP, DIA=15CLAMP, DIA=15
-
9221092210-1080 NUT, LOCK, FLANGED, 10MMNUT, LOCK, FLANGED, 10MM
