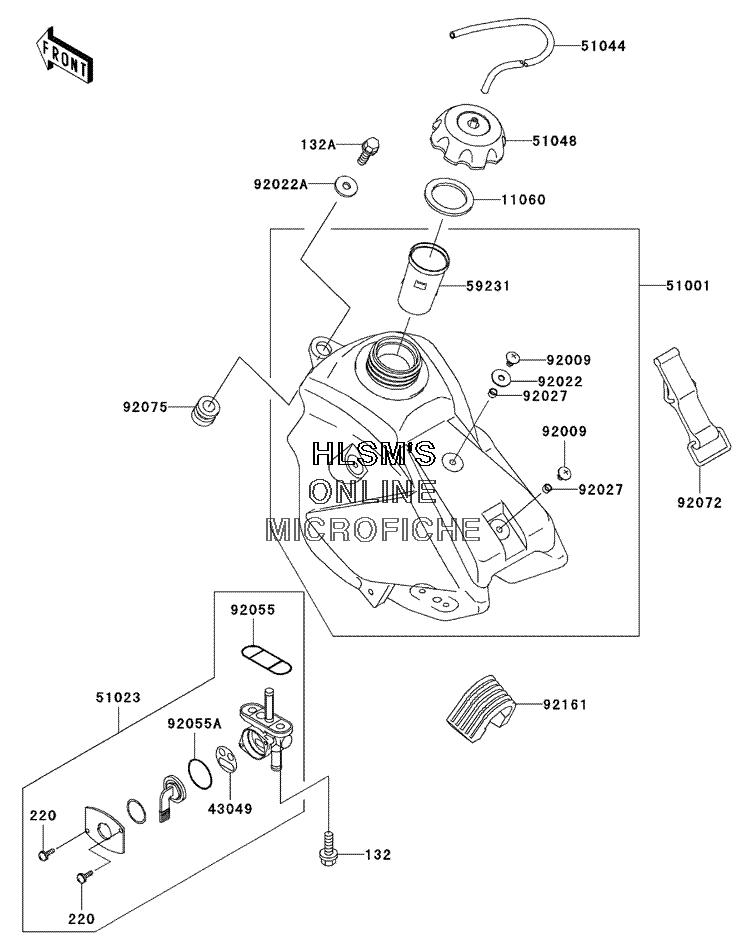

FUEL TANK для Kawasaki KX 65 - 2005 года выпуска
-
№АртикулНазвание
-
132132G0612 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
132A132G0614 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
220220B0308 SCREW, PAN, CROSSCREW, PAN, CROS
-
1106011060-1340 GASKET, FUEL TANK CAPGASKET, FUEL TANK CAP
-
4304943049-1091 PACKING, TAP VALVEPACKING, TAP VALVE
-
5100151001-1676-6Z TANK, COMP, FUEL, F.BLACKTANK, COMP, FUEL, F.BLACK
-
5102351023-1339 TAP, ASSY, FUELTAP, ASSY, FUEL
-
5104451044-1185 TUBE, ASSYTUBE, ASSY
-
5104851048-1124 CAP, ASSY, TANK, FUELCAP, ASSY, TANK, FUEL
-
5923159231-1096 FILLERFILLER
-
9200992009-1530 SCREW, 6X10SCREW, 6X10
-
9202292022-165 WASHER, PLAIN, 6MMWASHER, PLAIN, 6MM
-
92022A92022-1690 WASHER, 6.5X24X2WASHER, 6.5X24X2
-
9202792027-2096 COLLAR, 6.2X7.8X5COLLAR, 6.2X7.8X5
-
9205592055-1348 O-RING, FUEL TAP PACKINGO-RING, FUEL TAP PACKING
-
92055A92055-1419 O-RING, TAP LEVERO-RING, TAP LEVER
-
9207292072-1229 BAND, FUEL TANKBAND, FUEL TANK
-
9207592075-1787 DAMPERDAMPER
-
9216192161-1077 DAMPER, FUEL TANK, REARDAMPER, FUEL TANK, REAR
