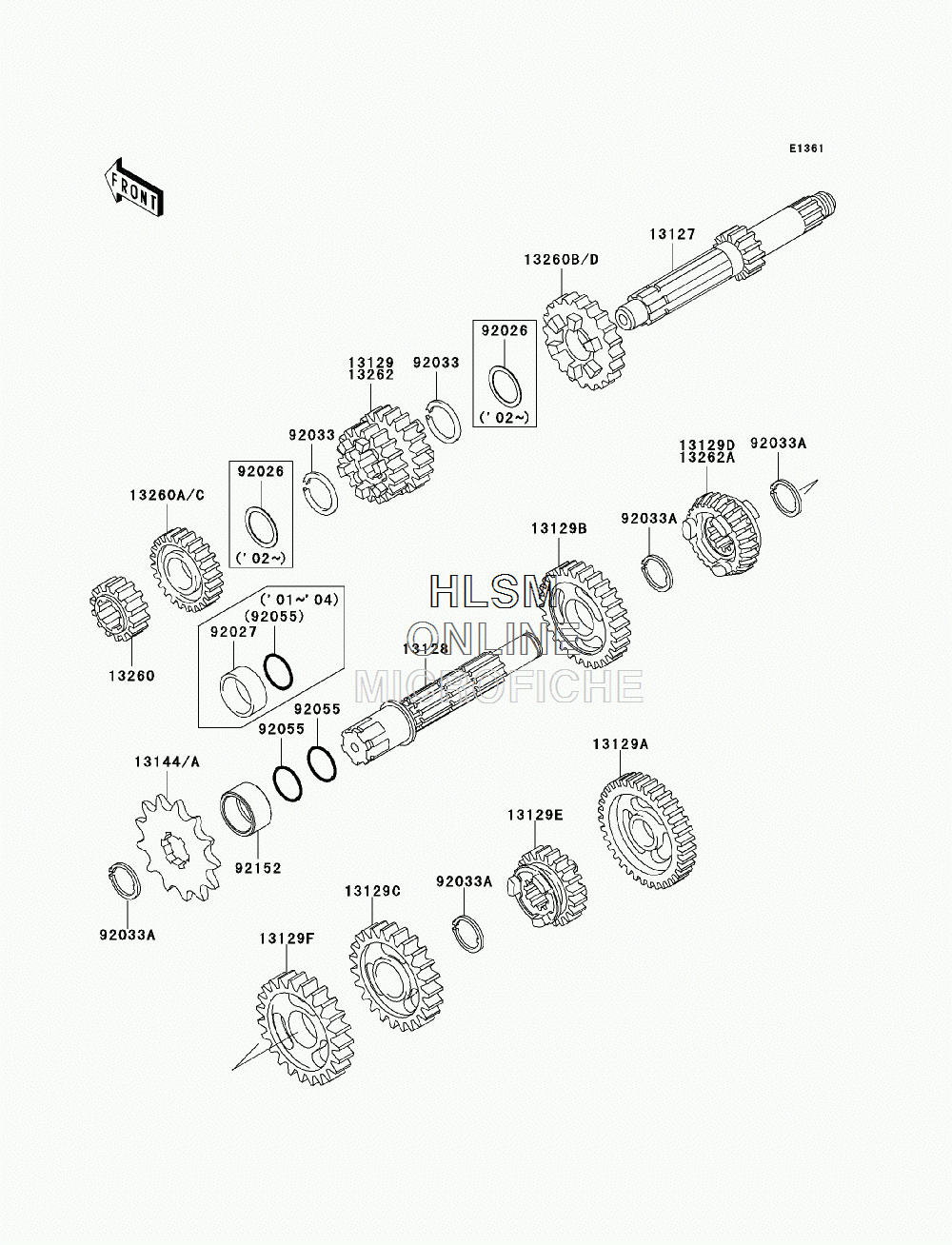

TRANSMISSION для Kawasaki KX 85 - 2005 года выпуска
-
№АртикулНазвание
-
1312713127-1261 SHAFT-TRANSMISSION INPUT,13TSHAFT-TRANSMISSION INPUT,13T
-
1312813128-1126 SHAFT-TRANSMISSION OUTPUTSHAFT-TRANSMISSION OUTPUT
-
13129A13129-1725 GEAR,OUTPUT LOW,33TGEAR,OUTPUT LOW,33T
-
13129B13129-1726 GEAR,OUTPUT 2ND,30TGEAR,OUTPUT 2ND,30T
-
13129C13129-1728 GEAR,OUTPUT 4TH,25TGEAR,OUTPUT 4TH,25T
-
13129E13129-1730 GEAR,OUTPUT 6TH,22TGEAR,OUTPUT 6TH,22T
-
13129F13129-1928 GEAR,OUTPUT 3RD,27TGEAR,OUTPUT 3RD,27T
-
1314413144-1022 SPROCKET-OUTPUT,14TSPROCKET-OUTPUT,14T
-
13144A13144-1023 SPROCKET-OUTPUT,13T (OPTION)SPROCKET-OUTPUT,13T (OPTION)
-
1326013260-1014 GEAR,INPUT 2ND,16TGEAR,INPUT 2ND,16T
-
13260C13260-1950 GEAR-TRANSMISSION SPUR,5TH,22TGEAR-TRANSMISSION SPUR,5TH,22T
-
13260D13260-1951 GEAR-TRANSMISSION SPUR,6TH,23TGEAR-TRANSMISSION SPUR,6TH,23T
-
1326213262-0180 GEAR,INPUT 3RD & 4TH,18 & 20TGEAR,INPUT 3RD & 4TH,18 & 20T
-
13262A13262-0181 GEAR,OUTPUT 5TH,24TGEAR,OUTPUT 5TH,24T
-
9202692026-1602 SPACER,18X23X0.50SPACER,18X23X0.50
-
9203392033-028 RING-SNAPRING-SNAP
-
92033A92033-1079 RING-SNAP,18MMRING-SNAP,18MM
-
9205592055-022 RING-O,17.5X1.5RING-O,17.5X1.5
-
9215292152-0195 COLLAR,20X25X12.9COLLAR,20X25X12.9
