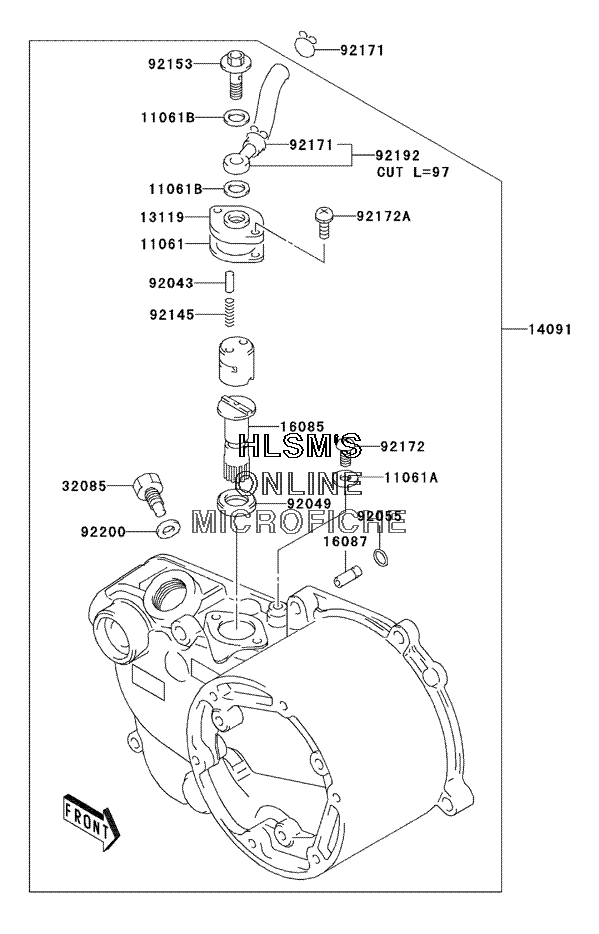

OIL PUMP для Kawasaki KD 50 - 2006 года выпуска
-
№АртикулНазвание
-
1106111061-S043 GASKET, OIL PUMPGASKET, OIL PUMP
-
11061A11061-S044 GASKET, AIR VENT SCREWGASKET, AIR VENT SCREW
-
11061B11061-S045 GASKET, OIL HOSEGASKET, OIL HOSE
-
1311913119-S001 CAM-RELEASECAM-RELEASE
-
1409114091-S119 COVER, CLUTCHCOVER, CLUTCH
-
1608516085-S002 GEARGEAR
-
1608716087-S002 VALVE-CHECK, CRANKVALVE-CHECK, CRANK
-
3208532085-S005 STOPPERSTOPPER
-
9204392043-S025 PIN, SUBPIN, SUB
-
9204992049-S027 SEAL-OIL, OIL PUMPSEAL-OIL, OIL PUMP
-
9205592055-S038 RING-O, CHECK VALVERING-O, CHECK VALVE
-
9214592145-S058 SPRING, OIL PUMP PLUNGERSPRING, OIL PUMP PLUNGER
-
9215392153-S192 BOLTBOLT
-
9217192171-S062 CLAMP, OIL HOSECLAMP, OIL HOSE
-
9217292172-S110 SCREWSCREW
-
92172A92172-S121 SCREW, OIL PUMPSCREW, OIL PUMP
-
9219292192-S037 TUBETUBE
-
9220092200-S084 WASHER, PLUNGERWASHER, PLUNGER
Все узлы модели:
- AIR CLEANER
- BRAKE PEDAL
- CARBURETOR
- CLUTCH
- CRANKCASE
- CRANKSHAFT
- CYLINDER HEAD W/CYLINDER
- ENGINE COVER
- FENDER - FRONT
- FENDER - REAR
- FRAME
- FRONT FORK
- FRONT HUB
- FUEL FILTER
- FUEL TANK
- GASKET KIT
- GEAR CHANGE MECHANISM
- GENERATOR
- HANDLEBAR
- HANDLEBAR LEVER(S)
- IGNITION SYSTEM
- KICKSTARTER MECHANISM
- LABELS
- MANUALS
- MUFFLER(S)
- • OIL PUMP
- OIL TANK
- REAR HUB
- SEAT
- SIDE COVERS
- SUSPENSION - SWINGARM
- TRANSMISSION
