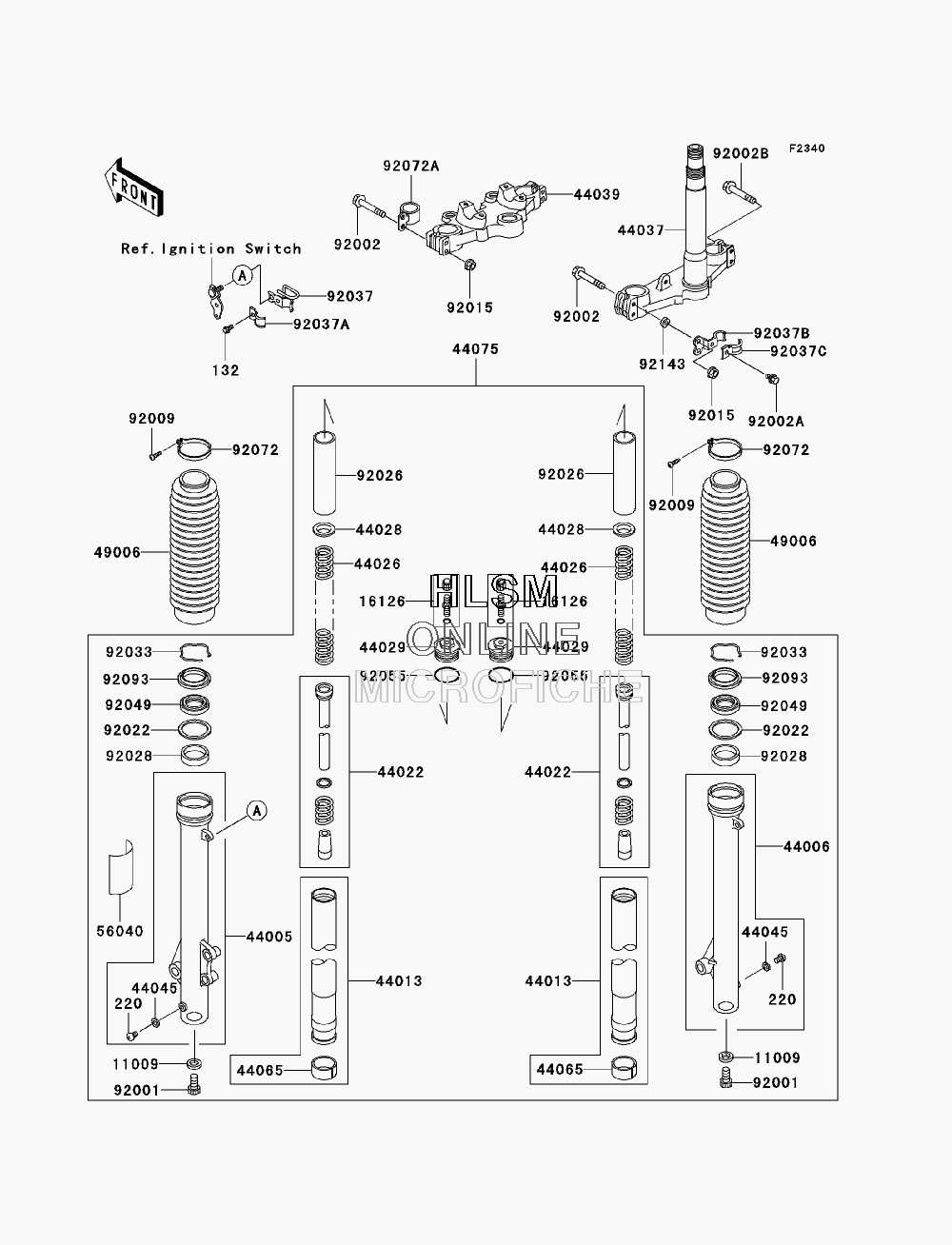

FRONT FORK для Kawasaki KLR650 - 2006 года выпуска
-
№АртикулНазвание
-
132132J0612 BOLT-FLANGED-SMALL,6X12BOLT-FLANGED-SMALL,6X12
-
220220R0406 SCREW-PAN-CROS,4X6SCREW-PAN-CROS,4X6
-
1100911009-1127 GASKET,FORK CYLINDER BOLTGASKET,FORK CYLINDER BOLT
-
1612616126-1052 VALVE,AIRVALVE,AIR
-
4400544005-0011 PIPE-LEFT FORK OUTERPIPE-LEFT FORK OUTER
-
4400644006-0011 PIPE-RIGHT FORK OUTERPIPE-RIGHT FORK OUTER
-
4401344013-1264 PIPE-FORK INNERPIPE-FORK INNER
-
4402244022-1211 CYLINDER-FORKCYLINDER-FORK
-
4402644026-1369 SPRING-FRONT FORKSPRING-FRONT FORK
-
4402844028-1003 GUIDE-FORK SPRINGGUIDE-FORK SPRING
-
4402944029-1042 SEAT-FORK SPRINGSEAT-FORK SPRING
-
4403744037-1207 HOLDER-FORK UNDERHOLDER-FORK UNDER
-
4403944039-1160 HOLDER-FORK UPPERHOLDER-FORK UPPER
-
4404544045-002 GASKET,FORK DRAIN PLUGGASKET,FORK DRAIN PLUG
-
4406544065-1057 BUSHING-FRONT FORK,INNER PIPEBUSHING-FRONT FORK,INNER PIPE
-
4407544075-5004 DAMPER-SET-FORKDAMPER-SET-FORK
-
4900649006-1222-BD BOOT,FORK,BLACKBOOT,FORK,BLACK
-
5604056040-1120 LABEL-WARNING, FRONT FORKLABEL-WARNING, FRONT FORK
-
9200192001-1309 BOLT,FORK CYLINDERBOLT,FORK CYLINDER
-
9200292002-1158 BOLT,FLANGED,8X55BOLT,FLANGED,8X55
-
92002A92002-1982 BOLTBOLT
-
92002B92002-1983 BOLT,FLANGED,8X45BOLT,FLANGED,8X45
-
9200992009-1348 SCREW,4X16SCREW,4X16
-
9201592015-1408 NUT,FLANGED,8MMNUT,FLANGED,8MM
-
9202292022-1242 WASHERWASHER
-
9202692026-1294 SPACERSPACER
-
9202892028-1125 BUSHINGBUSHING
-
9203392033-1047 RING-SNAP,FORKRING-SNAP,FORK
-
9203792037-1897 CLAMP,HOSECLAMP,HOSE
-
92037A92037-1898 CLAMP,HOSECLAMP,HOSE
-
92037B92037-1913 CLAMPCLAMP
-
92037C92037-1931 CLAMPCLAMP
-
9204992049-1180 SEAL-OIL, FRONT FORKSEAL-OIL, FRONT FORK
-
9205592055-1050 RING-O,FORK TOP CAPRING-O,FORK TOP CAP
-
9207292072-1171 BAND,BOOTBAND,BOOT
-
92072A92072-1225 BAND,CABLEBAND,CABLE
-
9209392093-1166 SEAL, FRONT FORKSEAL, FRONT FORK
-
9214392143-1134 COLLARCOLLAR
