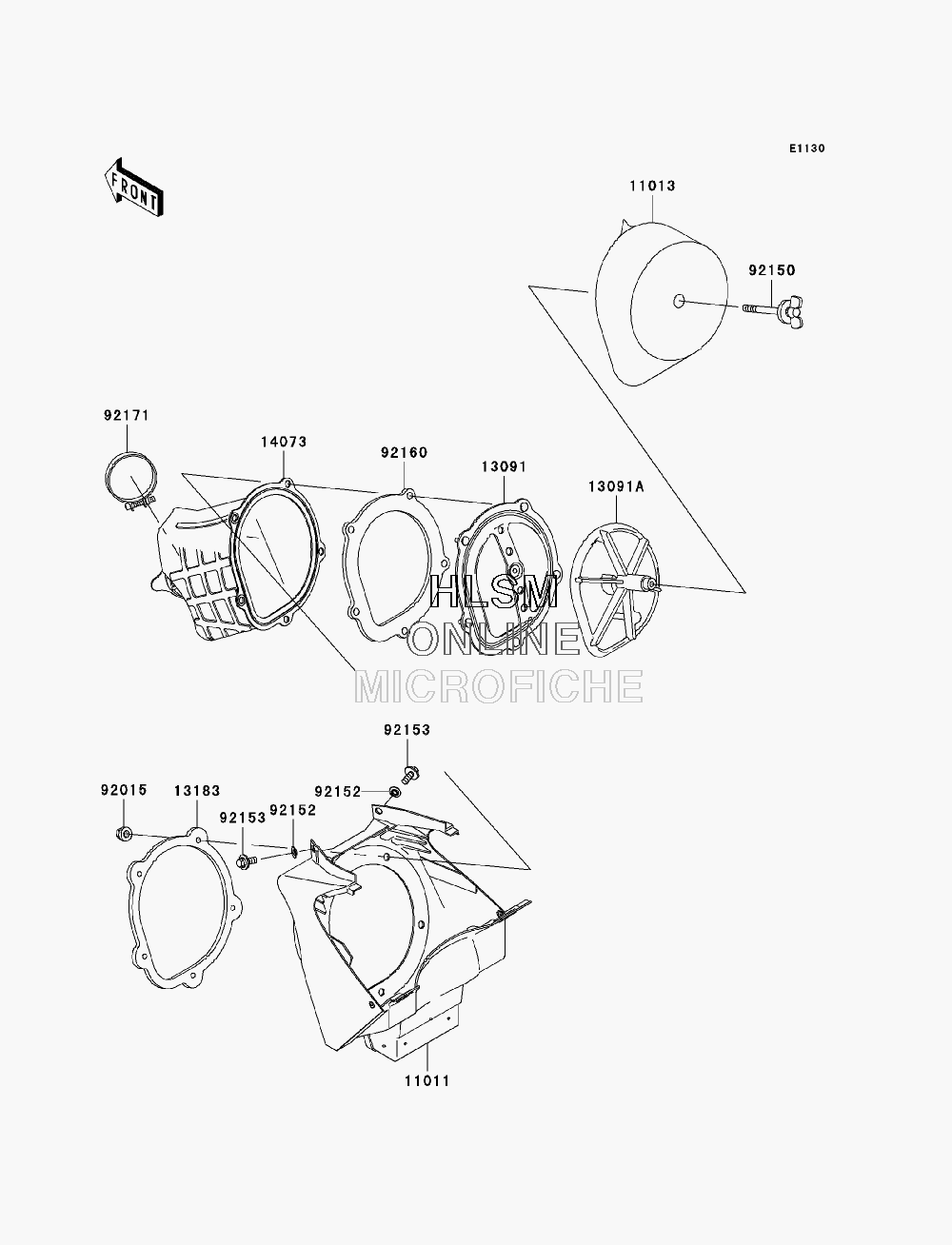

AIR CLEANER для Kawasaki KX 250 (KX250R6F) - 2006 года выпуска
-
№АртикулНазвание
-
1101111011-0048 CASE-AIR FILTERCASE-AIR FILTER
-
1101311013-1264 ELEMENT-AIR FILTERELEMENT-AIR FILTER
-
1309113091-1664 HOLDERHOLDER
-
13091A13091-1708 HOLDER,ELEMENTHOLDER,ELEMENT
-
1318313183-1530 PLATE,DUCT FITTINGPLATE,DUCT FITTING
-
1407314073-0075 DUCT,AIR FILTERDUCT,AIR FILTER
-
9201592015-1259 NUT,FLANGED,5MMNUT,FLANGED,5MM
-
9215092150-1565 BOLT,WINGBOLT,WING
-
9215292152-0275 COLLARCOLLAR
-
9215392153-0863 BOLT,6X16BOLT,6X16
-
9216092160-1196 DAMPER,DUCT SEALDAMPER,DUCT SEAL
-
9217192171-1066 CLAMP,AIR FILTERCLAMP,AIR FILTER
