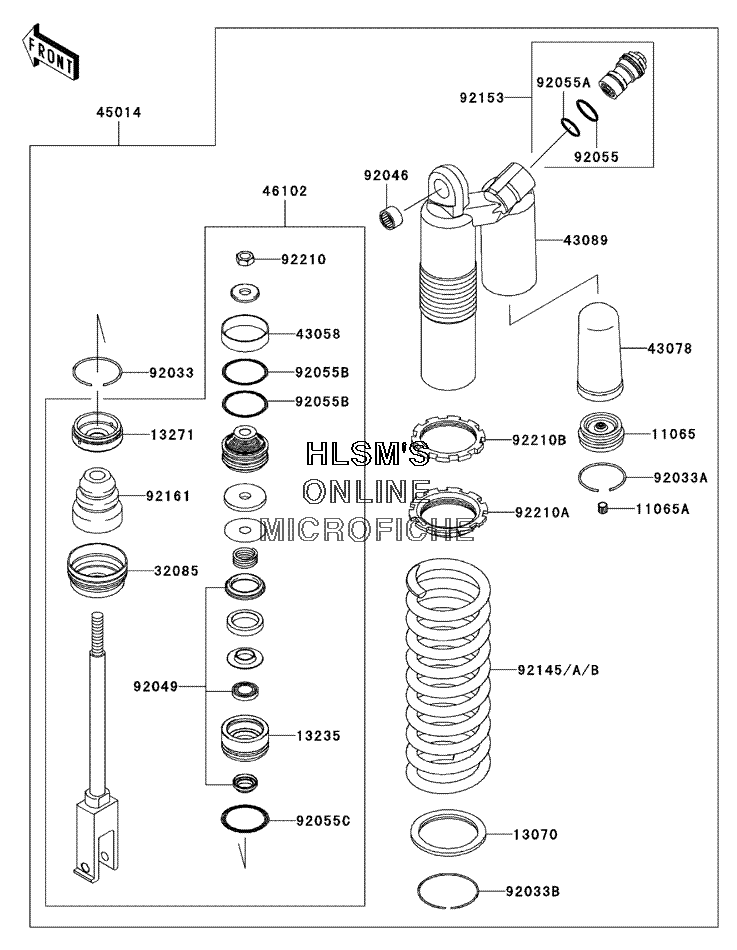

SUSPENSION - SHOCK ABSORBER для Kawasaki KX 250F - 2006 года выпуска
-
№АртикулНазвание
-
1106511065-0144 CAP, CHAMBERCAP, CHAMBER
-
11065A11065-0145 CAP, AIR VALVECAP, AIR VALVE
-
1307013070-0057 GUIDE, SPRING SEATGUIDE, SPRING SEAT
-
1323513235-0001 GUIDE-COMP, RODGUIDE-COMP, ROD
-
1327113271-0699 PLATE, ENDPLATE, END
-
3208532085-0077 STOPPER, SPRING SEATSTOPPER, SPRING SEAT
-
4305843058-0012 RING, PISTONRING, PISTON
-
4307843078-0030 RESERVOIRRESERVOIR
-
4308943089-0012-829 CYLINDER-SHOCK ABSORBER, GOLDCYLINDER-SHOCK ABSORBER, GOLD
-
4501445014-5018 SHOCK ABSORBERSHOCK ABSORBER
-
4610246102-0076 ROD, PISTONROD, PISTON
-
9203392033-0040 RING-SNAPRING-SNAP
-
92033A92033-0041 RING-SNAPRING-SNAP
-
92033B92033-0042 RING-SNAPRING-SNAP
-
9204692046-1301 BEARING-NEEDLE, 7E-HVS16X22X12BEARING-NEEDLE, 7E-HVS16X22X12
-
9204992049-0075 SEAL-OILSEAL-OIL
-
9205592055-0098 RING-O, PLUG BOLTRING-O, PLUG BOLT
-
92055A92055-0099 RING-O, PLUG BOLTRING-O, PLUG BOLT
-
92055B92055-0100 RING-ORING-O
-
92055C92055-0101 RING-ORING-O
-
9214592145-0321-8V SPRING, REAR SHOCK, K=52N/MM, SILSPRING, REAR SHOCK, K=52N/MM, SIL
-
92145A92145-0346-8V SPRING, REAR SHOCK, K=51N/MM, SIL (OPT.)SPRING, REAR SHOCK, K=51N/MM, SIL (OPT.)
-
92145B92145-0347-8V SPRING, REAR SHOCK, K=55N/MM, SIL (OPT.)SPRING, REAR SHOCK, K=55N/MM, SIL (OPT.)
-
9215392153-1401 BOLT, PLUGBOLT, PLUG
-
9216192161-0329 DAMPER, STOPPERDAMPER, STOPPER
-
9221092210-0270 NUT, PISTONNUT, PISTON
-
92210A92210-0271 NUT, SPRING ADJUSTERNUT, SPRING ADJUSTER
-
92210B92210-0272 NUT, SPRING ADJUST NUTNUT, SPRING ADJUST NUT
