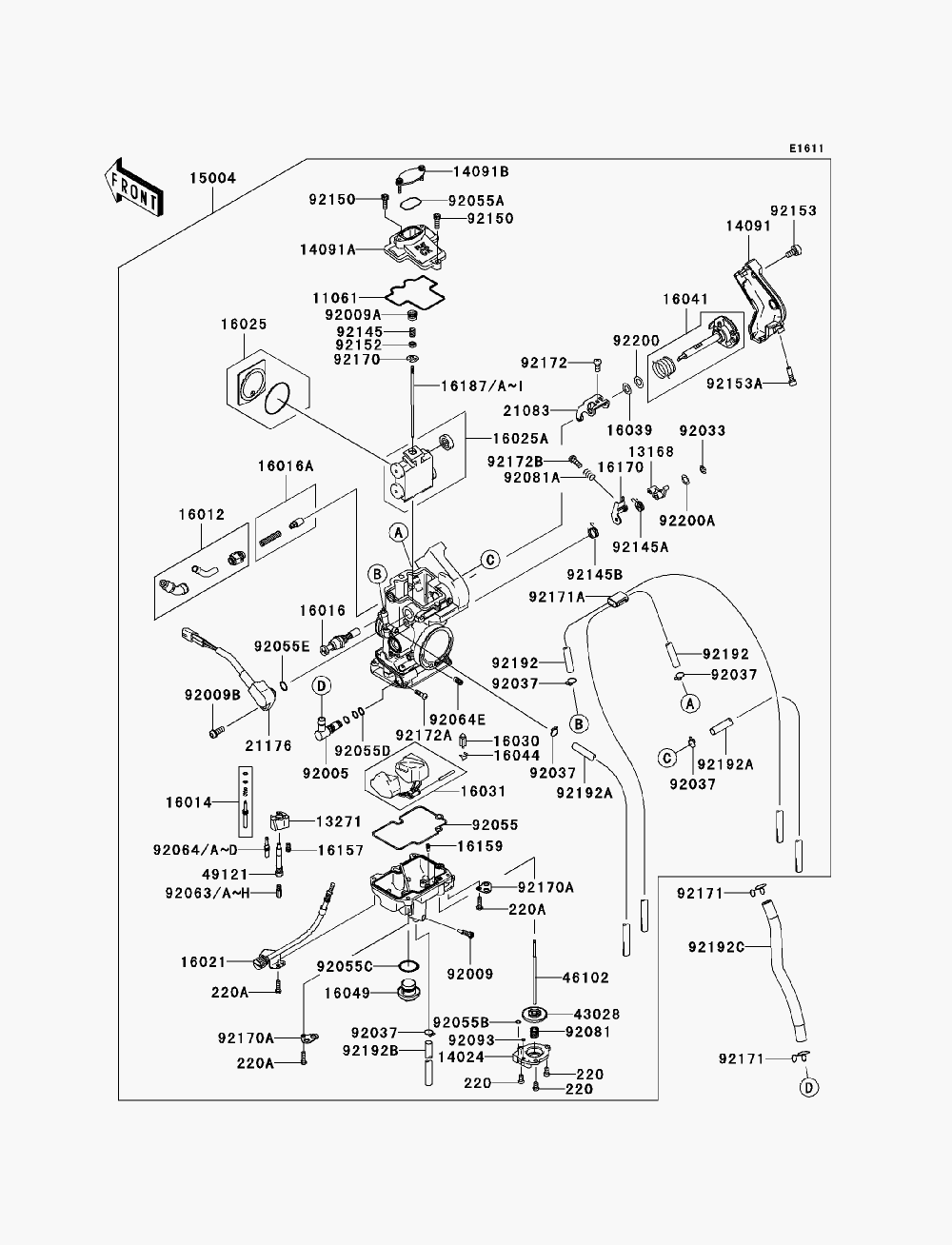

CARBURETOR для Kawasaki KX450F (KX450D7F) - 2007 года выпуска
-
№АртикулНазвание
-
1106111061-0077 GASKETGASKET
-
1316813168-0051 LEVERLEVER
-
1327113271-0241 PLATEPLATE
-
1402414024-1971 COVERCOVER
-
1409114091-0209 COVERCOVER
-
14091A14091-0587 COVER,TOPCOVER,TOP
-
14091B14091-0588 COVERCOVER
-
1500415004-0011 CARBURETOR-ASSY,FCR-MX40CARBURETOR-ASSY,FCR-MX40
-
1601216012-0002 CAP-STARTER PLUNGERCAP-STARTER PLUNGER
-
1601416014-0004 SCREW-PILOT AIRSCREW-PILOT AIR
-
1601616016-0009 PLUNGERPLUNGER
-
16016A16016-0017 PLUNGERPLUNGER
-
1602116021-0013 SCREW-THROTTLE STOPSCREW-THROTTLE STOP
-
1602516025-0009 VALVE-THROTTLEVALVE-THROTTLE
-
16025A16025-0013 VALVE-THROTTLEVALVE-THROTTLE
-
1603016030-1057 VALVE-FLOATVALVE-FLOAT
-
1603116031-1100 FLOATFLOAT
-
1603916039-0230 WASHERWASHER
-
1604116041-0004 SHAFT-CARBURETORSHAFT-CARBURETOR
-
1604416044-007 CLAMP,FLOAT VALVECLAMP,FLOAT VALVE
-
1604916049-1051 COVER-MAIN JETCOVER-MAIN JET
-
1615716157-0003 JET-STARTERJET-STARTER
-
1615916159-0004 JET-POWERJET-POWER
-
1617016170-0003 LINK-ASSYLINK-ASSY
-
1618716187-0188 NEEDLE-JET,NCYP (OPTION)NEEDLE-JET,NCYP (OPTION)
-
16187A16187-0189 NEEDLE-JET,NCYQ (OPTION)NEEDLE-JET,NCYQ (OPTION)
-
16187B16187-0190 NEEDLE-JET,NCYR (OPTION)NEEDLE-JET,NCYR (OPTION)
-
16187C16187-0191 NEEDLE-JET,NCYS (OPTION)NEEDLE-JET,NCYS (OPTION)
-
16187D16187-0192 NEEDLE-JET,NCYT (OPTION)NEEDLE-JET,NCYT (OPTION)
-
16187E16187-0212 NEEDLE-JET,NCVP (OPTION)NEEDLE-JET,NCVP (OPTION)
-
16187F16187-0213 NEEDLE-JET,NCVQ (OPTION)NEEDLE-JET,NCVQ (OPTION)
-
16187G16187-0214 NEEDLE-JET,NCVRNEEDLE-JET,NCVR
-
16187H16187-0215 NEEDLE-JET,NCVS (OPTION)NEEDLE-JET,NCVS (OPTION)
-
16187I16187-0216 NEEDLE-JET,NCVT (OPTION)NEEDLE-JET,NCVT (OPTION)
-
2108321083-0035 ARMARM
-
2117621176-0016 SENSOR,THROTTLESENSOR,THROTTLE
-
4302843028-0006 DIAPHRAGMDIAPHRAGM
-
4610246102-0033 RODROD
-
4912149121-0001 NOZZLE-MAINNOZZLE-MAIN
-
9200592005-0016 FITTINGFITTING
-
9200992009-1551 SCREW,DRAIN,6X0.75SCREW,DRAIN,6X0.75
-
92009A92009-1876 SCREWSCREW
-
92009B92009-1981 SCREW,THROTTLE SENSORSCREW,THROTTLE SENSOR
-
9203392033-0018 RING-SNAPRING-SNAP
-
9203792037-1396 CLAMP,TUBECLAMP,TUBE
-
9205592055-0066 RING-O,FLOAT CHAMBERRING-O,FLOAT CHAMBER
-
92055A92055-0109 RING-ORING-O
-
92055B92055-1004 RING-ORING-O
-
92055C92055-1167 RING-O,MAIN JET COVERRING-O,MAIN JET COVER
-
92055D92055-1223 RING-ORING-O
-
92055E92055-1671 RING-ORING-O
-
9206392063-1370 JET-MAIN,#165 (OPTION)JET-MAIN,#165 (OPTION)
-
92063A92063-1371 JET-MAIN,#168 (OPTION)JET-MAIN,#168 (OPTION)
-
92063B92063-1372 JET-MAIN,#170 (OPTION)JET-MAIN,#170 (OPTION)
-
92063C92063-1373 JET-MAIN,#172 (OPTION)JET-MAIN,#172 (OPTION)
-
92063D92063-1374 JET-MAIN,#175JET-MAIN,#175
-
92063E92063-1375 JET-MAIN,#178 (OPTION)JET-MAIN,#178 (OPTION)
-
92063F92063-1376 JET-MAIN,#180 (OPTION)JET-MAIN,#180 (OPTION)
-
92063G92063-1377 JET-MAIN,#182 (OPTION)JET-MAIN,#182 (OPTION)
-
92063H92063-1378 JET-MAIN,#185 (OPTION)JET-MAIN,#185 (OPTION)
-
9206492064-1139 JET-PILOT,#38 (OPTION)JET-PILOT,#38 (OPTION)
-
92064A92064-1140 JET-PILOT,#40 (OPTION)JET-PILOT,#40 (OPTION)
-
92064B92064-1141 JET-PILOT,#42JET-PILOT,#42
-
220220D0408 SCREW-PAN-CROS,4X8SCREW-PAN-CROS,4X8
-
220A220D0414 SCREW-PAN-CROS,4X14SCREW-PAN-CROS,4X14
-
92064C92064-1142 JET-PILOT,#45 (OPTION)JET-PILOT,#45 (OPTION)
-
92064D92064-1143 JET-PILOT,#48 (OPTION)JET-PILOT,#48 (OPTION)
-
92064E92064-1160 JET-PILOT,#100JET-PILOT,#100
-
9208192081-1092 SPRING,DIAPHRAGMSPRING,DIAPHRAGM
-
92081A92081-1620 SPRINGSPRING
-
9209392093-1046 SEAL,"U"RINGSEAL,"U"RING
-
9214592145-0164 SPRINGSPRING
-
92145A92145-0166 SPRINGSPRING
-
92145B92145-0167 SPRINGSPRING
-
9215092150-1426 BOLT,SOCKET,4X12BOLT,SOCKET,4X12
-
9215292152-0141 COLLARCOLLAR
-
9215392153-0639 BOLTBOLT
-
92153A92153-1512 BOLTBOLT
-
9217092170-1204 CLAMP,JET NEEDLECLAMP,JET NEEDLE
-
92170A92170-1582 CLAMPCLAMP
-
9217192171-0149 CLAMPCLAMP
-
92171A92171-0246 CLAMPCLAMP
-
9217292172-0127 SCREWSCREW
-
92172A92172-0128 SCREWSCREW
-
92172B92172-0129 SCREWSCREW
-
9219292192-0083 TUBETUBE
-
92192A92192-0084 TUBETUBE
-
92192B92192-0085 TUBETUBE
-
92192C92192-0219 TUBE,7X12X270,PROTECTOR(BLK)TUBE,7X12X270,PROTECTOR(BLK)
-
9220092200-0107 WASHERWASHER
-
92200A92200-1434 WASHER,LINK ARM,STAINLESSWASHER,LINK ARM,STAINLESS
