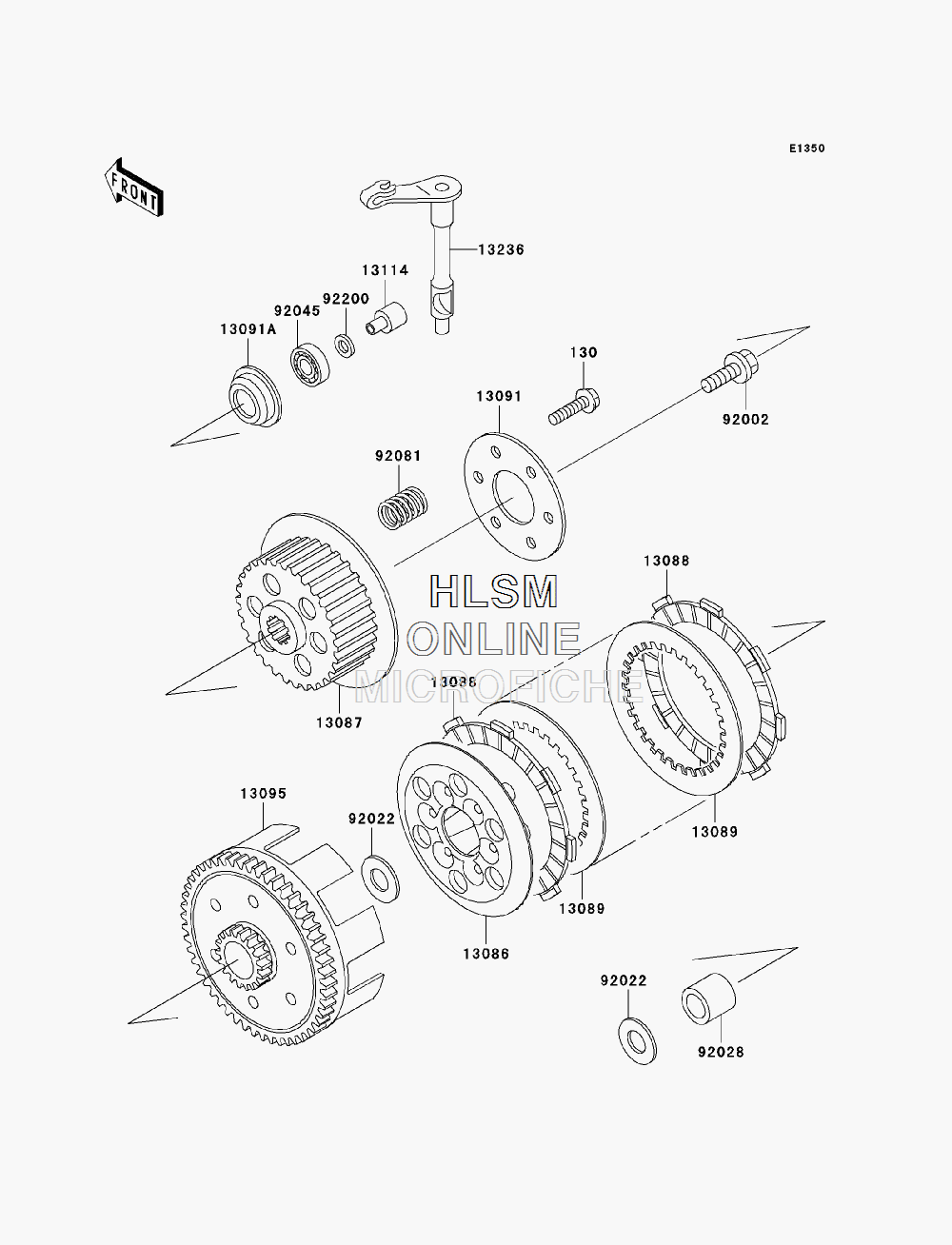

CLUTCH для Kawasaki KX65A (KX65A7F) - 2007 года выпуска
-
№АртикулНазвание
-
130130CA0520 BOLT-FLANGED, 5X20BOLT-FLANGED, 5X20
-
1308613086-1002 WHEEL-CLUTCHWHEEL-CLUTCH
-
1308713087-1051 HUB-CLUTCHHUB-CLUTCH
-
1308813088-1010 PLATE-FRICTIONPLATE-FRICTION
-
1308913089-1087 PLATE-CLUTCHPLATE-CLUTCH
-
1309113091-1115 HOLDER, CLUTCH SPRINGHOLDER, CLUTCH SPRING
-
13091A13091-1133 HOLDER, CLUTCH PUSHERHOLDER, CLUTCH PUSHER
-
1309513095-1042 HOUSING-COMP-CLUTCHHOUSING-COMP-CLUTCH
-
1311413114-1055 PUSHER-CLUTCHPUSHER-CLUTCH
-
1323613236-1338 LEVER-COMP, RELEASELEVER-COMP, RELEASE
-
9200292002-1697 BOLT, 10X30BOLT, 10X30
-
9202292022-255 WASHER, 17.3X28X1WASHER, 17.3X28X1
-
9202892028-1967 BUSHINGBUSHING
-
9204592045-1236 BEARING-BALL, 627BEARING-BALL, 627
-
9208192081-1175 SPRING, CLUTCHSPRING, CLUTCH
-
9220092200-1197 WASHER, 7X12.5X0.8WASHER, 7X12.5X0.8
