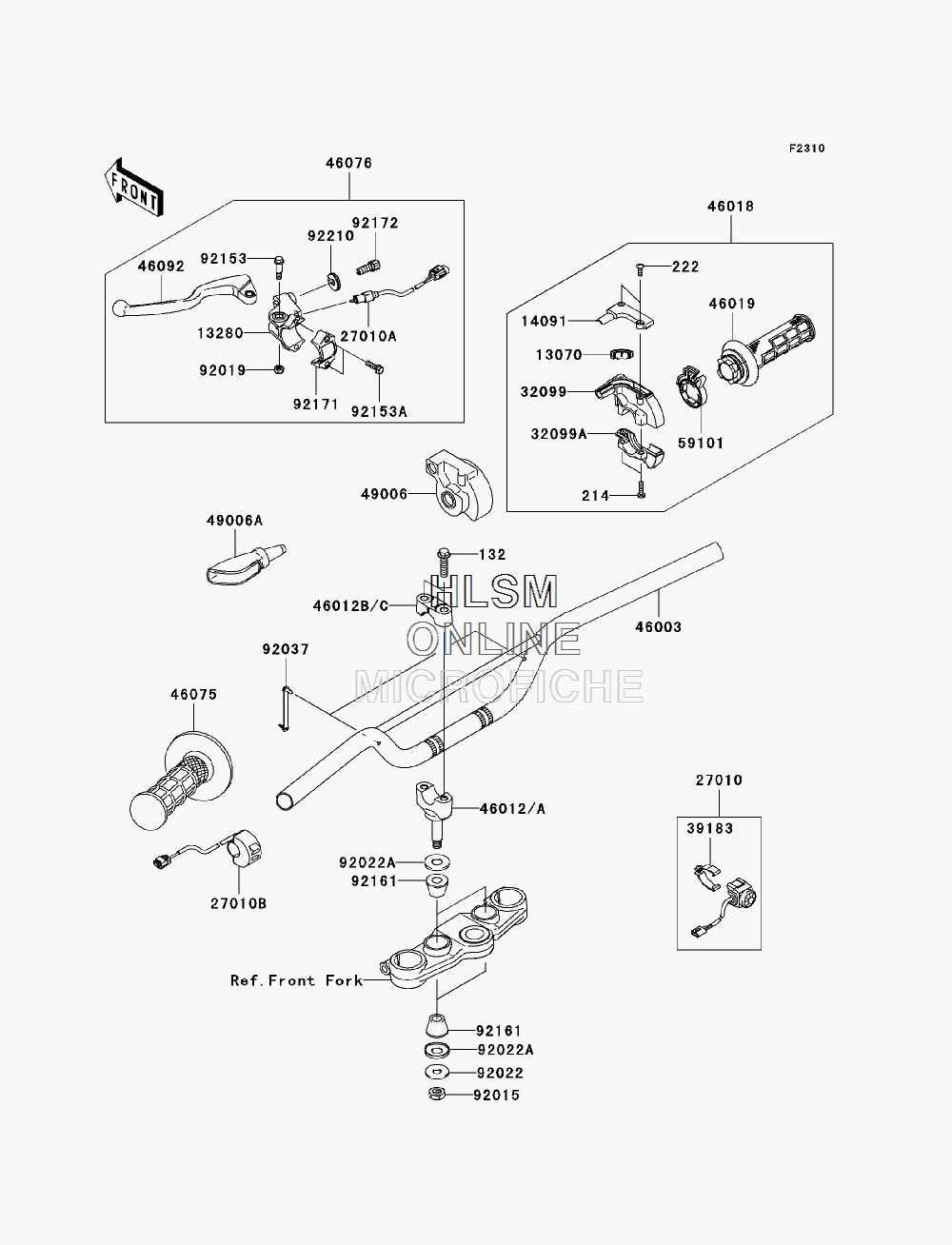

HANDLEBAR для Kawasaki KLX140 (KLX140A8F) - 2008 года выпуска
-
№АртикулНазвание
-
132132BC0830 BOLT-FLANGED-SMALL, 8X30BOLT-FLANGED-SMALL, 8X30
-
214214AB0518 SCREW-PAN+-, 5X18SCREW-PAN+-, 5X18
-
222222AB0412 SCREW-CSK-RD-CROS, 4X12SCREW-CSK-RD-CROS, 4X12
-
1307013070-0083 GUIDE, THROTTLEGUIDE, THROTTLE
-
1328013280-0256 HOLDER, CLUTCH LEVERHOLDER, CLUTCH LEVER
-
1409114091-0873 COVER, THROTTLE CASECOVER, THROTTLE CASE
-
2701027010-0069 SWITCH, ENGINE STARTSWITCH, ENGINE START
-
27010A27010-0071 SWITCH, CLUTCHSWITCH, CLUTCH
-
27010B27010-0079 SWITCH, ENGINE STOPSWITCH, ENGINE STOP
-
3209932099-0037 CASE, THROTTLE (UPPER)CASE, THROTTLE (UPPER)
-
32099A32099-0038 CASE, THROTTLE (LOWER)CASE, THROTTLE (LOWER)
-
3918339183-1059 BAND-ASSY, ENGINE STOP SWITCHBAND-ASSY, ENGINE STOP SWITCH
-
4600346003-0154-458 HANDLE (P.SILVER)HANDLE (P.SILVER)
-
46012A46012-0013-458 HOLDER-HANDLE (LOWER) (P.SILVER)HOLDER-HANDLE (LOWER) (P.SILVER)
-
46012C46012-0023-458 HOLDER-HANDLE (UPPER) (P.SILVER)HOLDER-HANDLE (UPPER) (P.SILVER)
-
4601846018-0073 GRIP-ASSY-THROTTLEGRIP-ASSY-THROTTLE
-
4601946019-0023 GRIP-ASSY, THROTTLEGRIP-ASSY, THROTTLE
-
4607546075-0072 GRIP (LEFT)GRIP (LEFT)
-
4607646076-0049 LEVER-ASSY-GRIP, CLUTCHLEVER-ASSY-GRIP, CLUTCH
-
4609246092-0026 LEVER-GRIP, CLUTCHLEVER-GRIP, CLUTCH
-
4900649006-0075 BOOT, THROTTLE CASEBOOT, THROTTLE CASE
-
49006A49006-0080 BOOT, LEVER HOLDERBOOT, LEVER HOLDER
-
5910159101-0005 REEL, THROTTLEREEL, THROTTLE
-
9201592015-1962 NUT, LOCK, 10MMNUT, LOCK, 10MM
-
9201992019-008 NUT, LOCK, 6MMNUT, LOCK, 6MM
-
9202292022-1088 WASHER, 10.2X28X2WASHER, 10.2X28X2
-
92022A92022-1737 WASHERWASHER
-
9203792037-1163 CLAMP, SPEED, L=58CLAMP, SPEED, L=58
-
9215392153-1897 BOLT, 6MMBOLT, 6MM
-
92153A92153-1898 BOLT, 5X20BOLT, 5X20
-
9216192161-0632 DAMPER, HANDLE HOLDERDAMPER, HANDLE HOLDER
-
9217192171-1671 CLAMP, LEVER HOLDERCLAMP, LEVER HOLDER
-
9217292172-0330 SCREW, CABLE ADJUST, 8MMSCREW, CABLE ADJUST, 8MM
-
9221092210-0411 NUT, CABLE ADJUSTNUT, CABLE ADJUST
