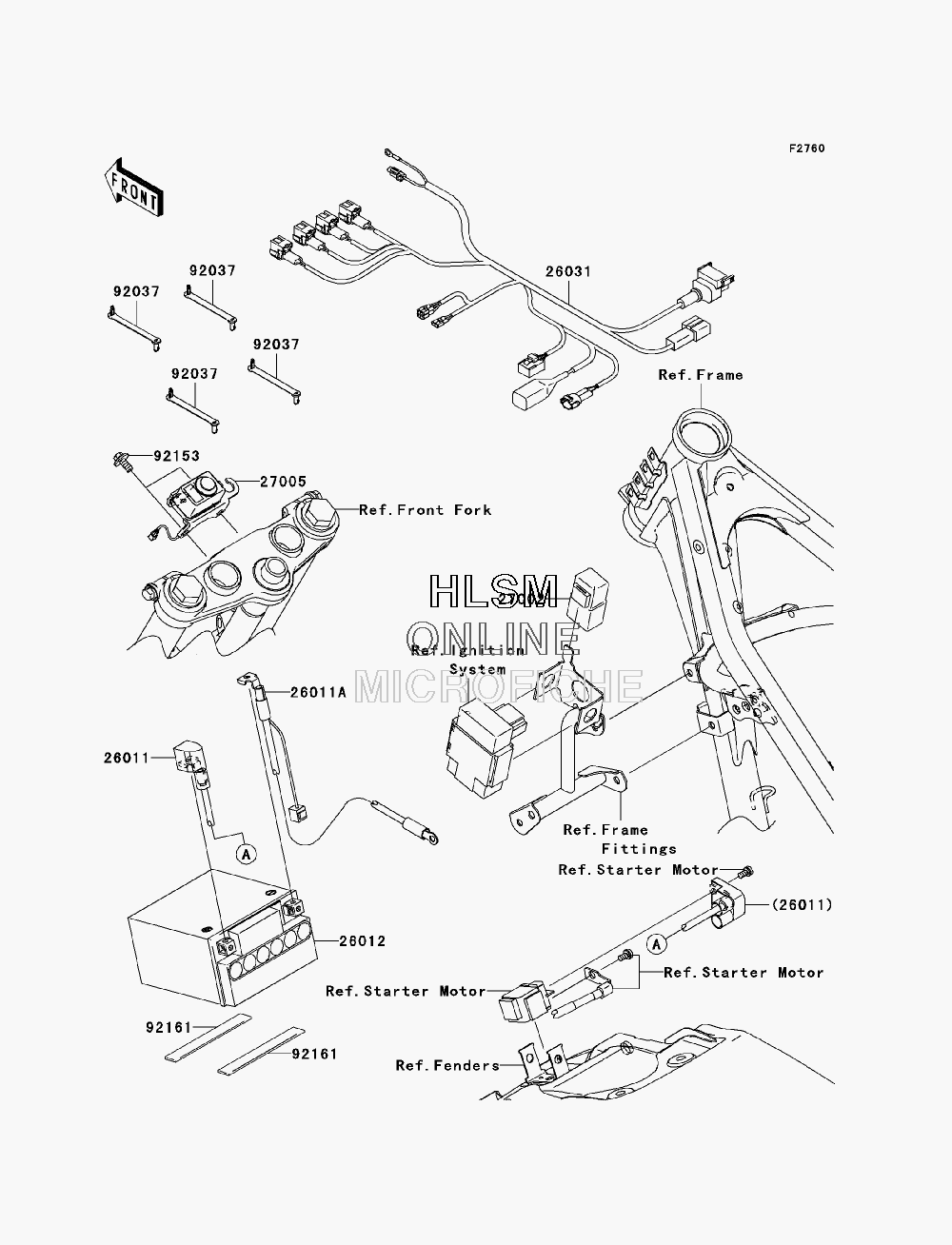

ELECTRICAL - CHASSIS для Kawasaki KLX140 (KLX140B8F) - 2008 года выпуска
-
№АртикулНазвание
-
2601126011-0153 WIRE-LEAD, BATTERY (+)WIRE-LEAD, BATTERY (+)
-
26011A26011-0154 WIRE-LEAD, BATTERY (-)WIRE-LEAD, BATTERY (-)
-
2601226012-0068 BATTERY, FTX7L-BS, 12V6AHBATTERY, FTX7L-BS, 12V6AH
-
2603126031-0542 HARNESS, MAINHARNESS, MAIN
-
2700227002-1086 RELAY-ASSYRELAY-ASSY
-
2700527005-0047 SWITCH-ASSY-IGNITIONSWITCH-ASSY-IGNITION
-
9203792037-1163 CLAMP, SPEED, L=58CLAMP, SPEED, L=58
-
9215392153-0936 BOLT, FLANGED, 6X14BOLT, FLANGED, 6X14
-
9216192161-0543 DAMPERDAMPER
