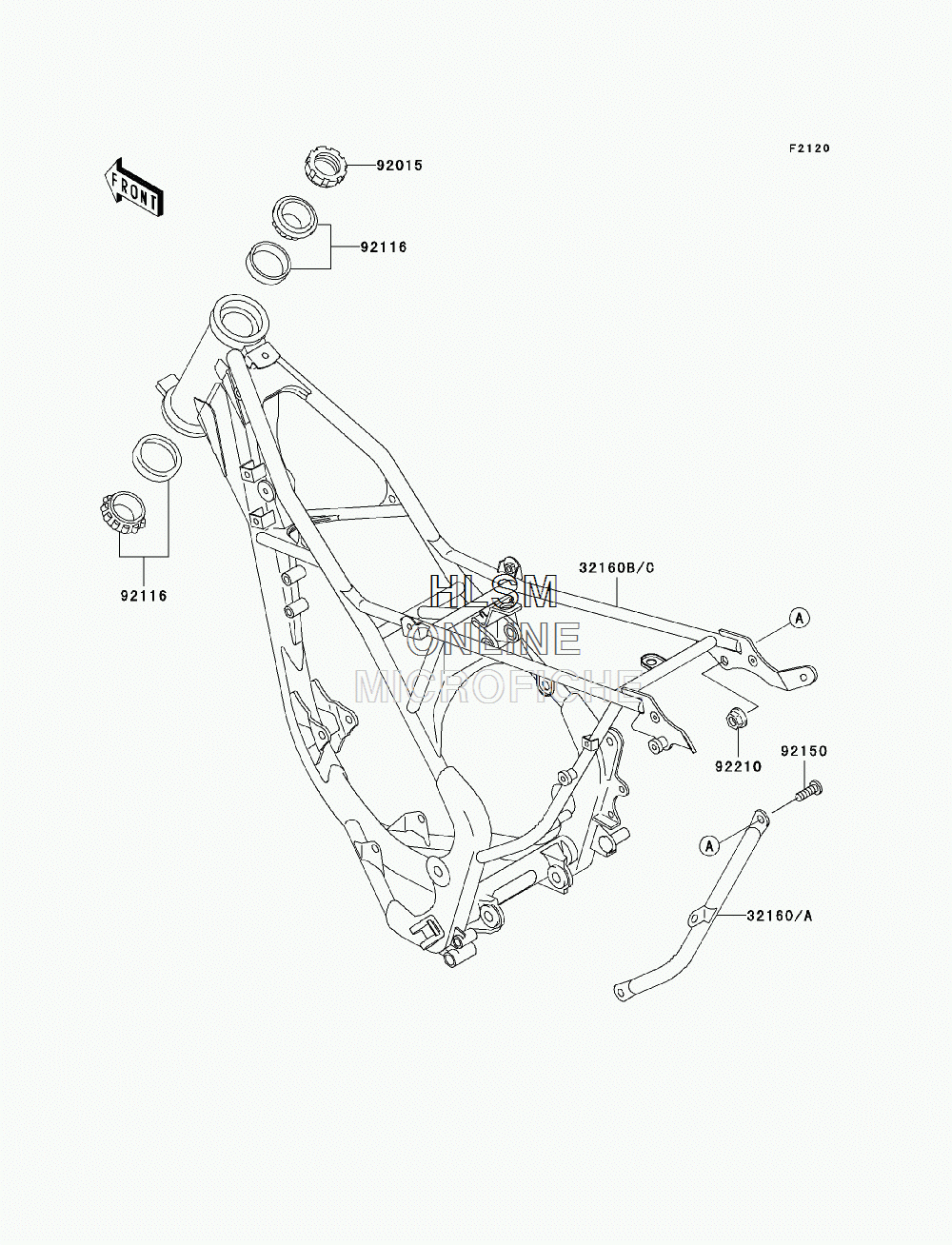

FRAME для Kawasaki KX100D (KX100D8F) - 2008 года выпуска
-
№АртикулНазвание
-
32160A32160-1486-458 FRAME-COMP, DOWNTUBE, RIGHT HAND, SILVERFRAME-COMP, DOWNTUBE, RIGHT HAND, SILVER
-
32160C32160-1673-458 FRAME-COMP, MAIN, P. SILVERFRAME-COMP, MAIN, P. SILVER
-
9201592015-1684 NUT, STEERING STEM, 25MMNUT, STEERING STEM, 25MM
-
9211692116-1065 BEARING-ROLLER, H1-CAP32005J REARSBEARING-ROLLER, H1-CAP32005J REARS
-
9215092150-1221 BOLT, SOCKET, 10X23BOLT, SOCKET, 10X23
-
9221092210-1080 NUT, LOCK, FLANGED, 10MMNUT, LOCK, FLANGED, 10MM
