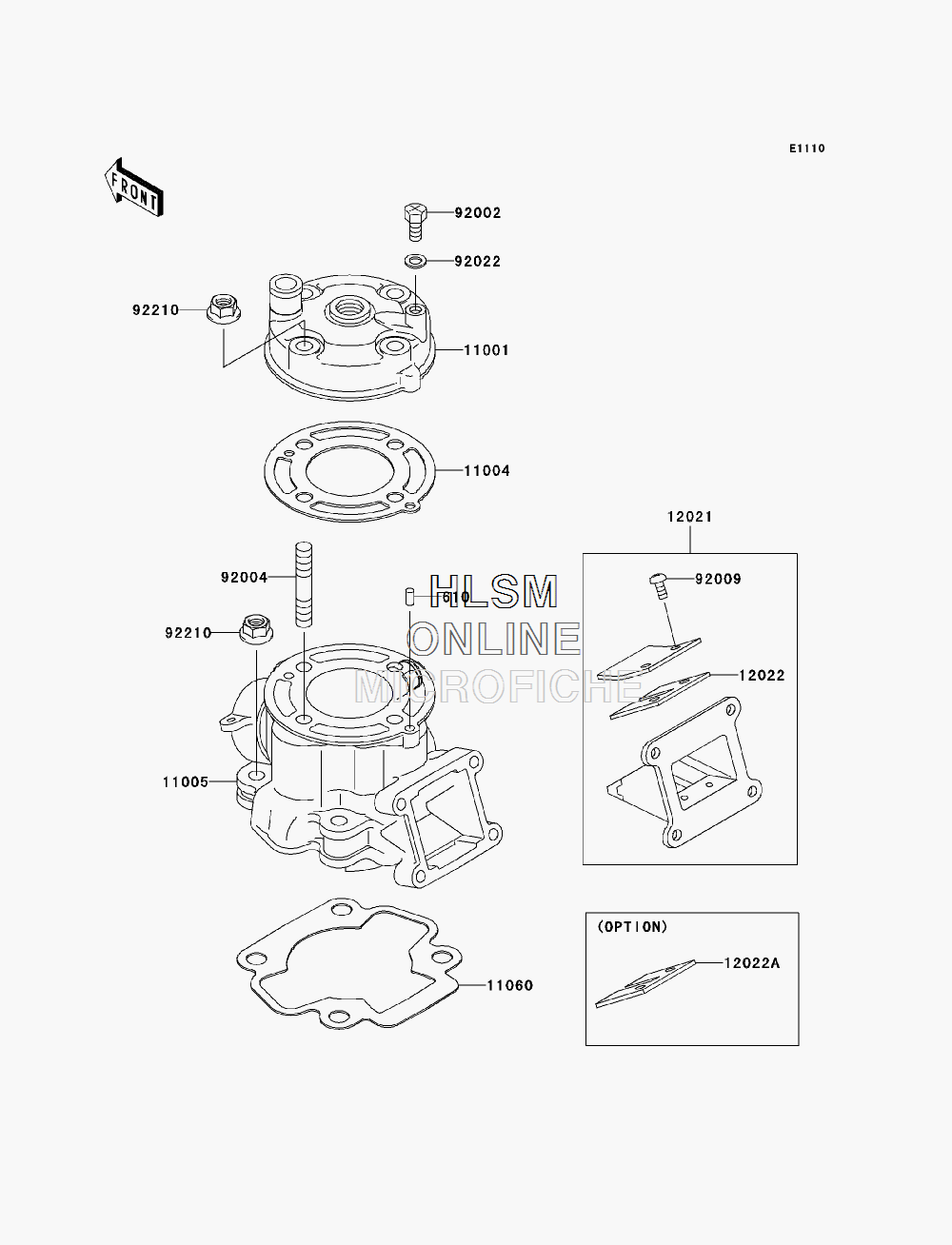

CYLINDER HEAD W/CYLINDER для Kawasaki KX65A (KX65A8F) - 2008 года выпуска
-
№АртикулНазвание
-
610610A0408 ROLLER, 4X8ROLLER, 4X8
-
1100111001-1516 HEAD-CYLINDERHEAD-CYLINDER
-
1100411004-1346 GASKET-HEADGASKET-HEAD
-
1100511005-1973 CYLINDER-ENGINECYLINDER-ENGINE
-
1106011060-1921 GASKET, CYLINDER BASE, T=0.37GASKET, CYLINDER BASE, T=0.37
-
1202112021-1015 VALVE-ASSY-REEDVALVE-ASSY-REED
-
1202212022-1013 VALVE-REED, T=0.42VALVE-REED, T=0.42
-
12022A12022-1087 VALVE-REED, T=0.37, CARBON (OPTION)VALVE-REED, T=0.37, CARBON (OPTION)
-
9200292002-1222 BOLT, 6X10BOLT, 6X10
-
9200492004-1069 STUD, 8X30STUD, 8X30
-
9200992009-1014 SCREW, REED VALVESCREW, REED VALVE
-
9202292022-304 WASHER, 6.2X11X1WASHER, 6.2X11X1
-
9221092210-0076 NUT, 8MMNUT, 8MM
