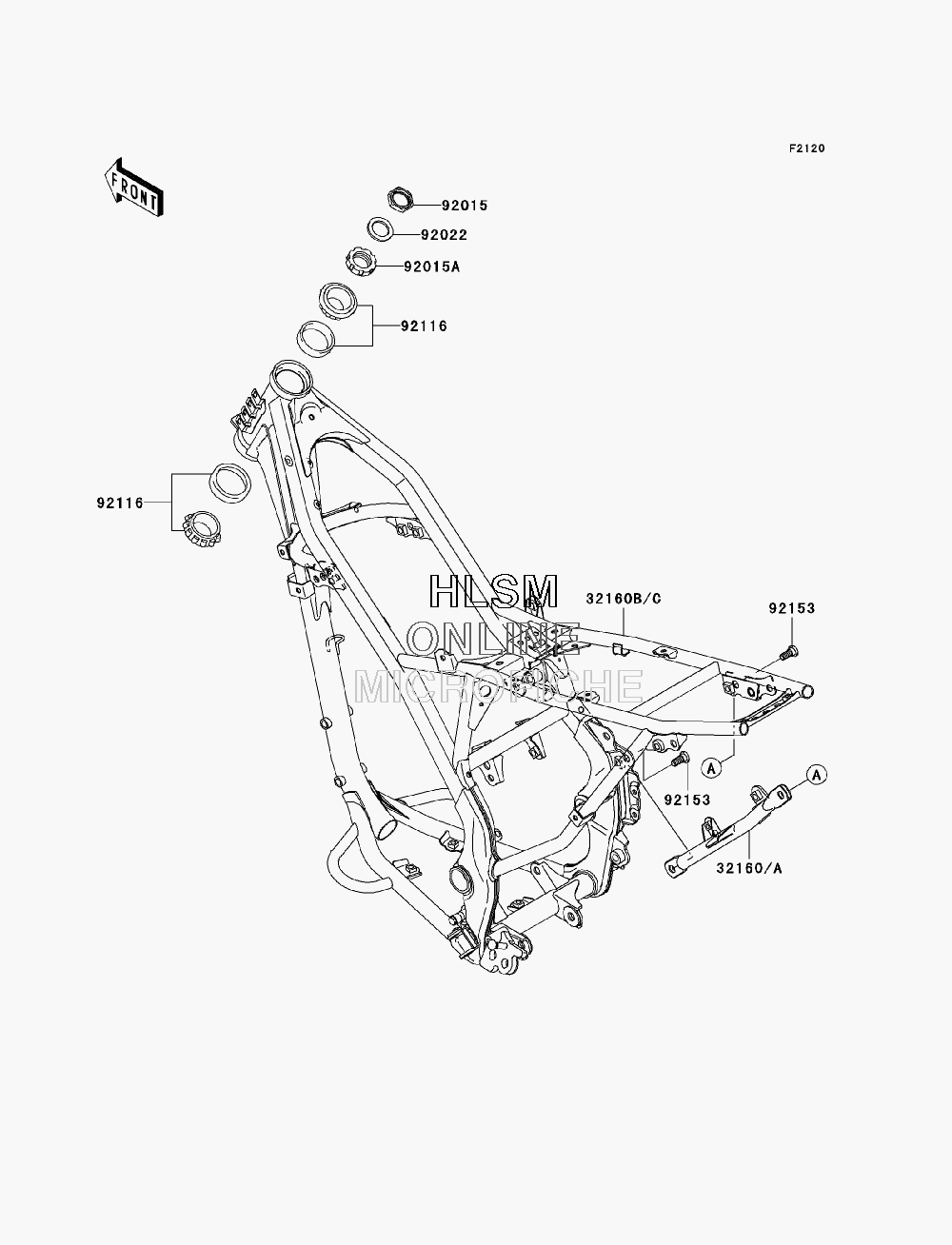

FRAME для Kawasaki KLX140L (KLX140B9F) - 2009 года выпуска
-
№АртикулНазвание
-
32160A32160-0239-458 FRAME-COMP, REAR, P. SILVERFRAME-COMP, REAR, P. SILVER
-
32160B32160-0335-458 FRAME-COMP, MAIN, P. SILVERFRAME-COMP, MAIN, P. SILVER
-
9201592015-1653 NUT, STEERING STEM, 22MMNUT, STEERING STEM, 22MM
-
92015A92015-1684 NUT, STEERING STEM, 25MMNUT, STEERING STEM, 25MM
-
9202292022-1873 WASHER, STEERING STEMWASHER, STEERING STEM
-
9211692116-1065 BEARING-ROLLER, H1-CAP32005J REARSBEARING-ROLLER, H1-CAP32005J REARS
-
9215392153-1621 BOLT, SOCKET, 8X20BOLT, SOCKET, 8X20
