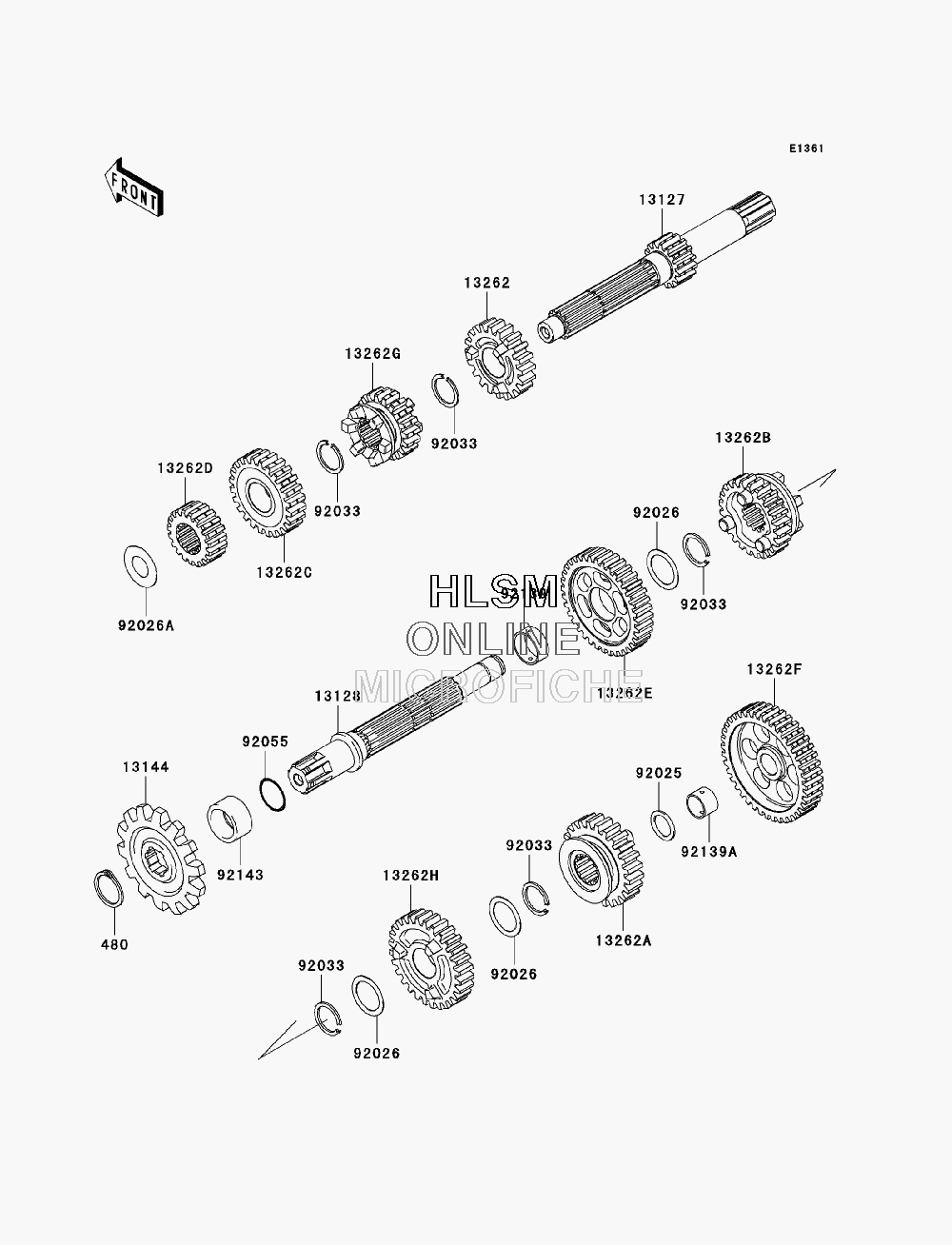

TRANSMISSION для Kawasaki KLX140L Monster Energy (KLX140B9FA) - 2009 года выпуска
-
№АртикулНазвание
-
480480J1700 CIRCLIP-TYPE-C, 17MMCIRCLIP-TYPE-C, 17MM
-
1312713127-0058 SHAFT-TRANSMISSION INPUT, 15TSHAFT-TRANSMISSION INPUT, 15T
-
1312813128-1258 SHAFT-TRANSMISSION OUTPUTSHAFT-TRANSMISSION OUTPUT
-
1314413144-0045 SPROCKET-OUTPUT, 13TSPROCKET-OUTPUT, 13T
-
1326213262-0454 GEAR, INPUT 4TH, 22TGEAR, INPUT 4TH, 22T
-
13262A13262-0459 GEAR, OUTPUT 4TH, 26TGEAR, OUTPUT 4TH, 26T
-
13262B13262-0502 GEAR, OUTPUT 5TH, 24TGEAR, OUTPUT 5TH, 24T
-
13262C13262-0552 GEAR, INPUT 5TH, 24TGEAR, INPUT 5TH, 24T
-
13262D13262-0577 GEAR, INPUT 2ND, 19TGEAR, INPUT 2ND, 19T
-
13262E13262-0578 GEAR, OUTPUT 2ND, 36TGEAR, OUTPUT 2ND, 36T
-
13262F13262-0579 GEAR, OUTPUT LOW, 40TGEAR, OUTPUT LOW, 40T
-
13262G13262-0662 GEAR, INPUT 3RD, 19TGEAR, INPUT 3RD, 19T
-
13262H13262-0663 GEAR, OUTPUT 3RD, 28TGEAR, OUTPUT 3RD, 28T
-
9202592025-1280 SHIMSHIM
-
9202692026-1037 SPACER, 17.2X23X0.5SPACER, 17.2X23X0.5
-
92026A92026-1610 SPACERSPACER
-
9203392033-1060 RING-SNAP, 17MMRING-SNAP, 17MM
-
9205592055-0151 RING-O, 16.8X1.9RING-O, 16.8X1.9
-
9213992139-0001 BUSHINGBUSHING
-
92139A92139-0002 BUSHINGBUSHING
-
9214392143-1680 COLLAR, SPROCKETCOLLAR, SPROCKET
