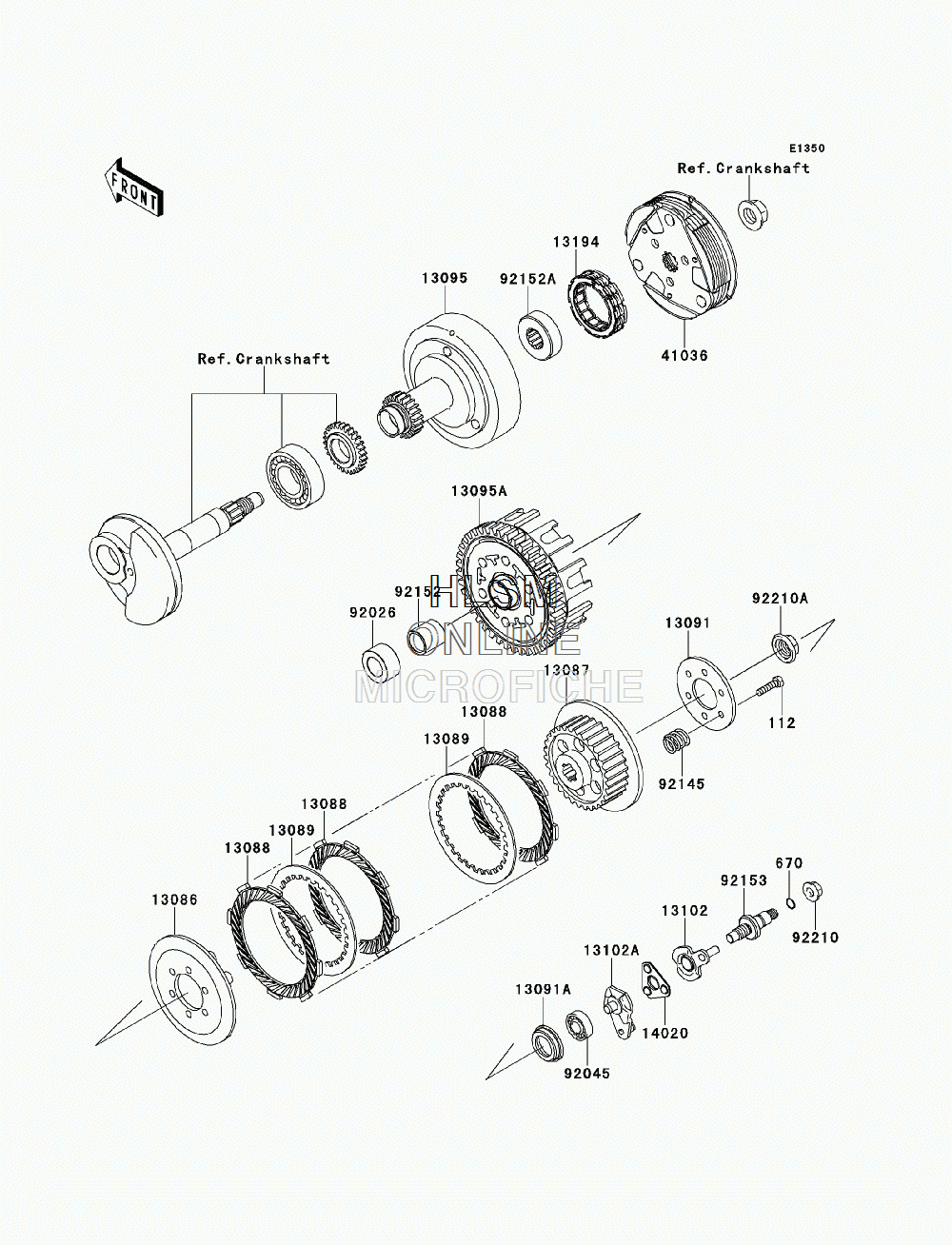

CLUTCH для Kawasaki KLX110 (KLX110CAF) - 2010 года выпуска
-
№АртикулНазвание
-
112112BA0520 BOLT-UPSET, 5X20BOLT-UPSET, 5X20
-
670670B1508 O RING, 8MMO RING, 8MM
-
1308613086-1065 WHEEL-CLUTCHWHEEL-CLUTCH
-
1308713087-1151 HUB-CLUTCHHUB-CLUTCH
-
1308813088-1142 PLATE-FRICTIONPLATE-FRICTION
-
1308913089-1087 PLATE-CLUTCHPLATE-CLUTCH
-
1309113091-1782 HOLDER, CLUTCHHOLDER, CLUTCH
-
13091A13091-1787 HOLDERHOLDER
-
1309513095-0128 HOUSING-COMP-CLUTCHHOUSING-COMP-CLUTCH
-
13095A13095-1403 HOUSING-COMP-CLUTCHHOUSING-COMP-CLUTCH
-
1310213102-1135 RELEASE-COMP-CLUTCHRELEASE-COMP-CLUTCH
-
13102A13102-1136 RELEASE-COMP-CLUTCHRELEASE-COMP-CLUTCH
-
1319413194-1103 CLUTCH-ONEWAYCLUTCH-ONEWAY
-
1402014020-1100 RETAINERRETAINER
-
4103641036-1364 HUB-ASSY, CLUTCHHUB-ASSY, CLUTCH
-
9202692026-1605 SPACERSPACER
-
9204592045-1123 BEARING-BALL, #628BEARING-BALL, #628
-
9214592145-0744 SPRINGSPRING
-
9215292152-0393 COLLAR, 17X22X22.7COLLAR, 17X22X22.7
-
92152A92152-1370 COLLAR, 19X39.9X13COLLAR, 19X39.9X13
-
9215392153-0525 BOLT, CLUTCH RELEASEBOLT, CLUTCH RELEASE
-
9221092210-0004 NUT, FLANGED, 8MMNUT, FLANGED, 8MM
-
92210A92210-1374 NUT, 14MMNUT, 14MM
