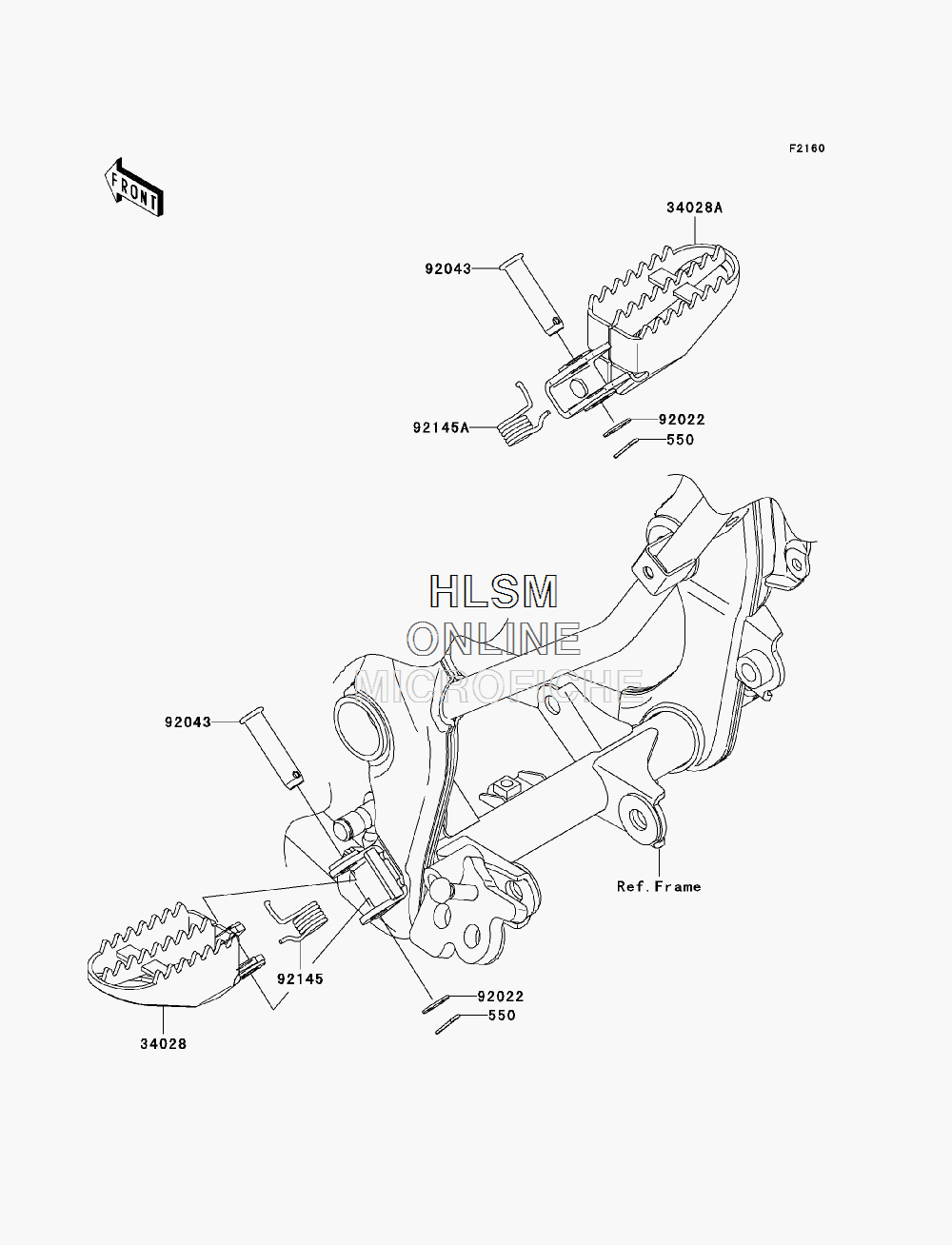

FOOTRESTS для Kawasaki KLX140 (KLX140ABF) - 2010 года выпуска
-
№АртикулНазвание
-
550550S3020 PIN-COTTER, 3.0X20PIN-COTTER, 3.0X20
-
3402834028-0077-458 STEP (LEFT) (P.SILVER)STEP (LEFT) (P.SILVER)
-
34028A34028-0078-458 STEP (RIGHT) (P.SILVER)STEP (RIGHT) (P.SILVER)
-
9202292022-1829 WASHER, 10.2X16X1WASHER, 10.2X16X1
-
9204392043-1643 PIN, 10X37.5PIN, 10X37.5
-
9214592145-0601 SPRING, STEP (LEFT)SPRING, STEP (LEFT)
-
92145A92145-0602 SPRING, STEP (RIGHT)SPRING, STEP (RIGHT)
