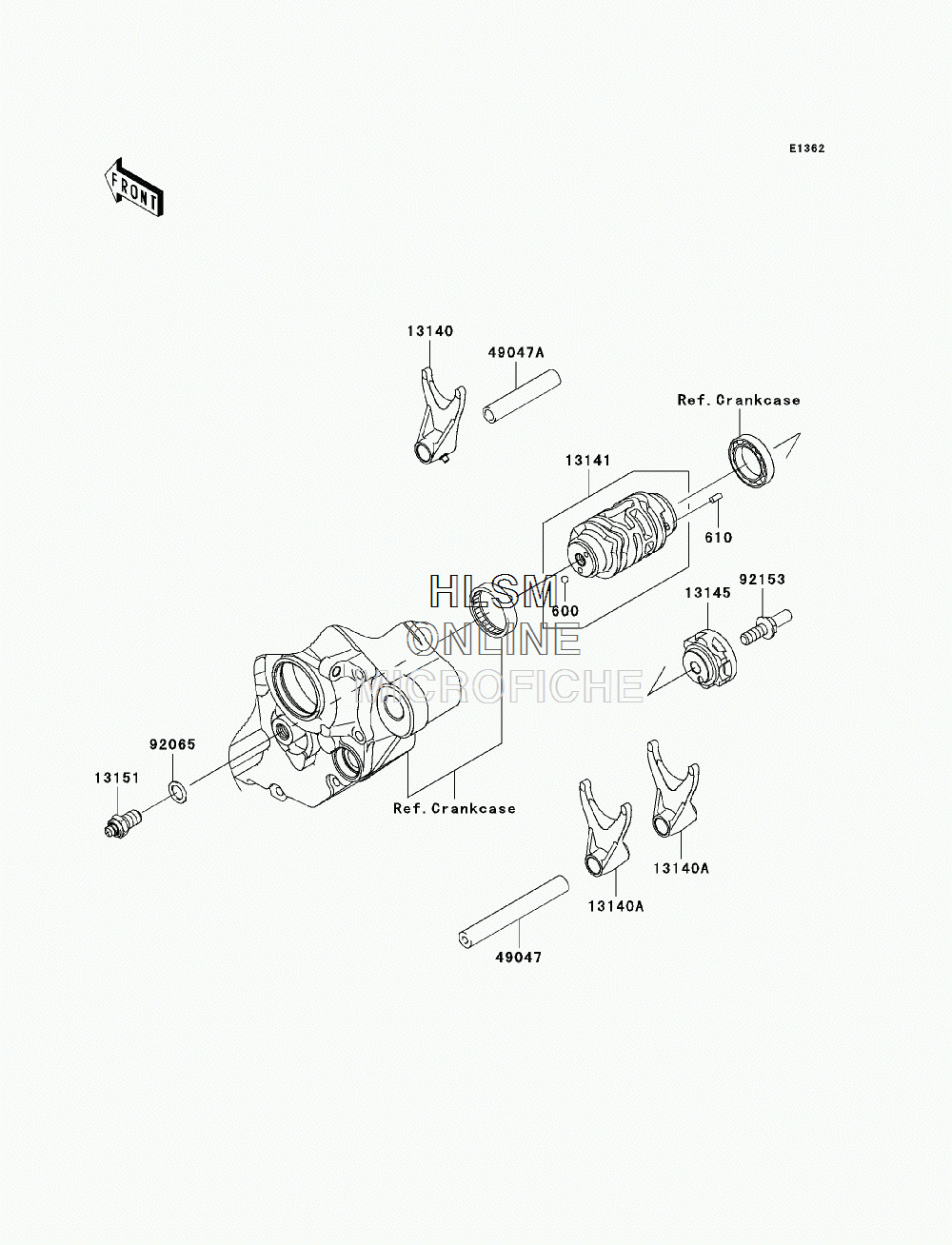

GEAR CHANGE DRUM W/ SHIFT FORK(S) для Kawasaki KX250F (KX250XAFB) - 2010 года выпуска
-
№АртикулНазвание
-
600600A0700 BALL-STEEL,7/32"BALL-STEEL,7/32"
-
610610A0408 ROLLER,4X8ROLLER,4X8
-
1314013140-0056 FORK-SHIFT,INFORK-SHIFT,IN
-
13140A13140-0057 FORK-SHIFT,OUTFORK-SHIFT,OUT
-
1314113141-0052 DRUM-CHANGEDRUM-CHANGE
-
1314513145-0031 CAM-CHANGE DRUMCAM-CHANGE DRUM
-
1315113151-0006 SWITCH-COMP,NEUTRALSWITCH-COMP,NEUTRAL
-
4904749047-0003 ROD-SHIFT,OUTPUT,L=94.5ROD-SHIFT,OUTPUT,L=94.5
-
49047A49047-0004 ROD-SHIFT,INPUT,L=63ROD-SHIFT,INPUT,L=63
-
9206592065-058 GASKET,10.5X16X1GASKET,10.5X16X1
-
9215392153-1735 BOLTBOLT
