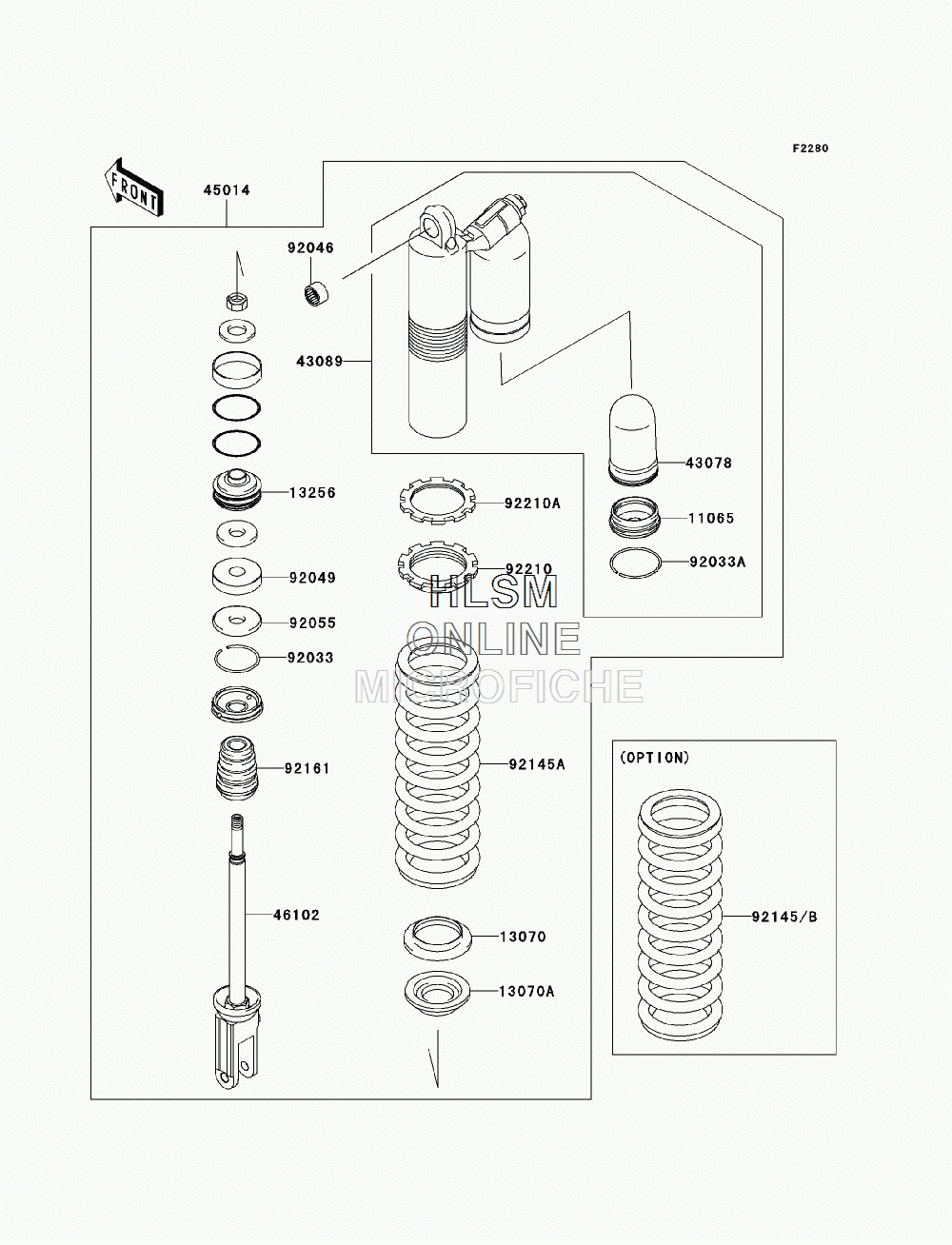

SUSPENSION - SHOCK ABSORBER для Kawasaki KX450F (KX450EAF) - 2010 года выпуска
-
№АртикулНазвание
-
1106511065-0338 CAP,SUB-TANKCAP,SUB-TANK
-
1307013070-0095 GUIDE,SPRINGGUIDE,SPRING
-
13070A13070-0101 GUIDE,SPRINGGUIDE,SPRING
-
1325613256-0006 PISTON,SHOCKABSORBERPISTON,SHOCKABSORBER
-
4307843078-0059 RESERVOIR,SHOCKABSORBERRESERVOIR,SHOCKABSORBER
-
4308943089-0019 CYLINDER-SHOCKABSORBERCYLINDER-SHOCKABSORBER
-
4501445014-0295-17D SHOCKABSORBER,BLACK (FOR 777)SHOCKABSORBER,BLACK (FOR 777)
-
4610246102-0147 ROD,PISTONROD,PISTON
-
9203392033-0044 RING-SNAPRING-SNAP
-
92033A92033-0059 RING-SNAPRING-SNAP
-
9204692046-1301 BEARING-NEEDLE,7E-HVS16X22X12BEARING-NEEDLE,7E-HVS16X22X12
-
9204992049-0116 SEAL-OILSEAL-OIL
-
9205592055-0165 RING-ORING-O
-
9214592145-0638-17D SPRING,SHOCK,K=52N/MM,BLACK (OPTION) (FOR 777)SPRING,SHOCK,K=52N/MM,BLACK (OPTION) (FOR 777)
-
92145A92145-0716-17D SPRING,SHOCK,K=54N/MM,BLACK (FOR 777)SPRING,SHOCK,K=54N/MM,BLACK (FOR 777)
-
92145B92145-0762-17D SPRING,SHOCK,K=56N/MM,BLACK (OPTION) (FOR 777)SPRING,SHOCK,K=56N/MM,BLACK (OPTION) (FOR 777)
-
9216192161-1172 DAMPER,SHOCKABSORBERDAMPER,SHOCKABSORBER
-
9221092210-0494 NUT,SPRING ADJUSTNUT,SPRING ADJUST
-
92210A92210-0495 NUT,SPRING ADJUST LOCKNUT,SPRING ADJUST LOCK
