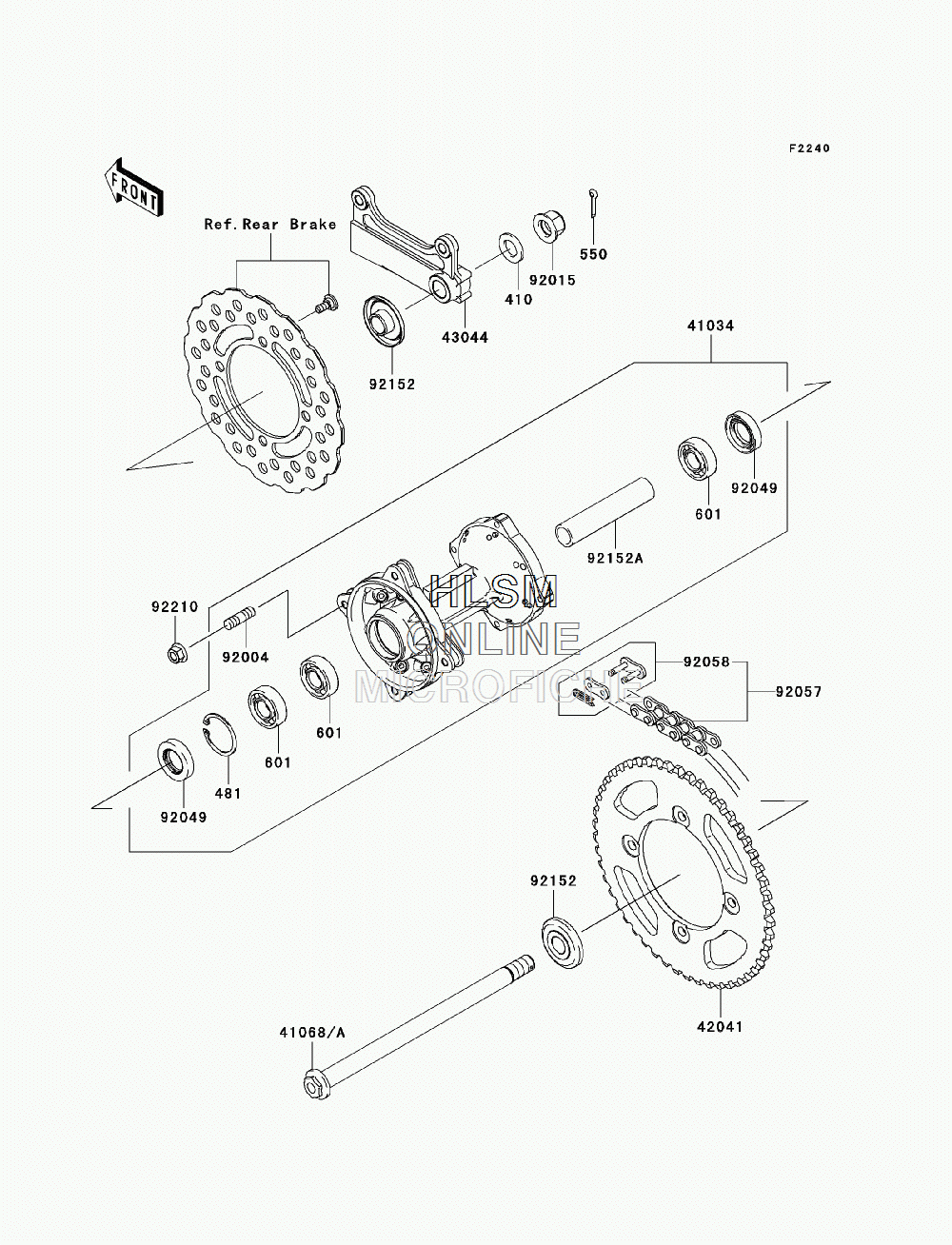

REAR HUB для Kawasaki KLX140 (KLX140ABF) - 2011 года выпуска
-
№АртикулНазвание
-
410410AA1400 WASHER-PLAIN-SMALL, 14MMWASHER-PLAIN-SMALL, 14MM
-
481481J3500 CIRCLIP-TYPE-C, 35MMCIRCLIP-TYPE-C, 35MM
-
550550AA2520 PIN-COTTER, 2.5X20PIN-COTTER, 2.5X20
-
601601B6202UU BEARING-BALLBEARING-BALL
-
4103441034-0056 DRUM-ASSY, REAR BRAKEDRUM-ASSY, REAR BRAKE
-
4106841068-0085 AXLE, REAR, 238MMAXLE, REAR, 238MM
-
4204142041-0051 SPROCKET-HUB, 50TSPROCKET-HUB, 50T
-
4304443044-1122 HOLDER-COMP-CALIPERHOLDER-COMP-CALIPER
-
9200492004-1183 STUD, 8X16STUD, 8X16
-
9201592015-1401 NUT, FLANGED, 14MMNUT, FLANGED, 14MM
-
9204992049-0114 SEAL-OILSEAL-OIL
-
9205792057-0135 CHAIN, DRIVE, DID428HX122LCHAIN, DRIVE, DID428HX122L
-
9205892058-0016 JOINT-CHAIN, DRIVEJOINT-CHAIN, DRIVE
-
9215292152-0651 COLLAR, REAR AXLE, L=12.5COLLAR, REAR AXLE, L=12.5
-
92152A92152-1090 COLLAR, REAR BRAKE DRUM, L=95COLLAR, REAR BRAKE DRUM, L=95
-
9221092210-0159 NUT, FLANGED, LOCK, 8MMNUT, FLANGED, LOCK, 8MM
