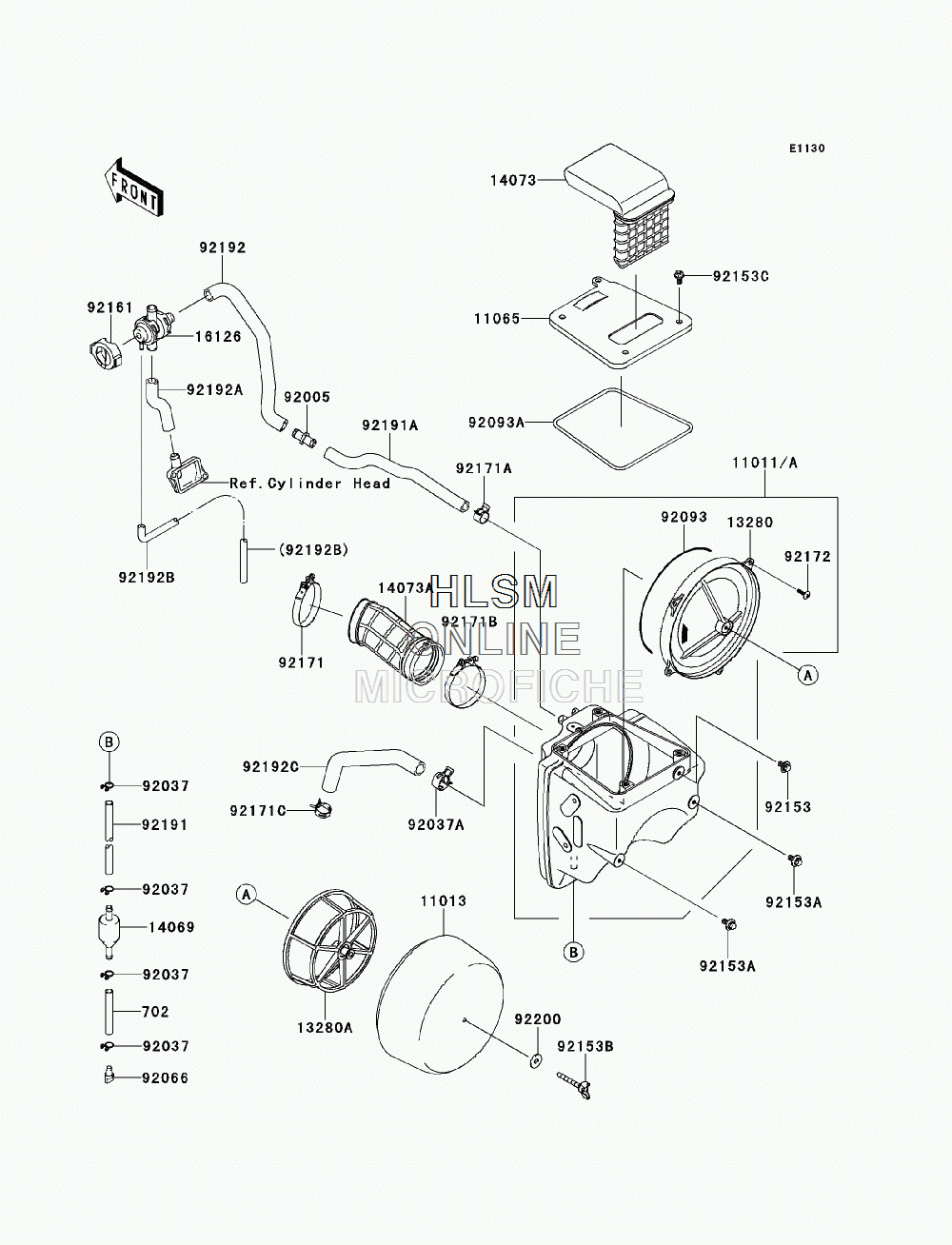

AIR CLEANER для Kawasaki KLX250S (KLX250TBF) (CANADA ONLY) - 2011 года выпуска
-
№АртикулНазвание
-
702702A0770 TUBE-RUBBER, 7X10X70TUBE-RUBBER, 7X10X70
-
11011A11011-0097 CASE-AIR FILTERCASE-AIR FILTER
-
1101311013-0030 ELEMENT-AIR FILTERELEMENT-AIR FILTER
-
1106511065-0232 CAP, AIR FILTERCAP, AIR FILTER
-
1328013280-0252 HOLDERHOLDER
-
13280A13280-0263 HOLDERHOLDER
-
1406914069-1051 BREATHERBREATHER
-
1407314073-0185 DUCT, INTAKEDUCT, INTAKE
-
14073A14073-1790 DUCT, AIR FILTERDUCT, AIR FILTER
-
1612616126-0032 VALVE, AIR SWITINGVALVE, AIR SWITING
-
9200592005-1379 FITTINGFITTING
-
9203792037-147 CLAMP, TUBECLAMP, TUBE
-
92037A92037-1860 CLAMPCLAMP
-
9206692066-1211 PLUG, DRAINPLUG, DRAIN
-
9209392093-0101 SEAL, 3X520SEAL, 3X520
-
92093A92093-0102 SEAL, 4X535SEAL, 4X535
-
9215392153-0503 BOLT, 6X12BOLT, 6X12
-
92153A92153-0936 BOLT, FLANGED, 6X14BOLT, FLANGED, 6X14
-
92153B92153-1921 BOLT, WING, 6X45BOLT, WING, 6X45
-
92153C92153-1922 BOLT, FLANGED, 6X12BOLT, FLANGED, 6X12
-
9216192161-0482 DAMPERDAMPER
-
9217192171-0643 CLAMPCLAMP
-
92171A92171-1441 CLAMPCLAMP
-
92171B92171-1687 CLAMP, 62MMCLAMP, 62MM
-
92171C92171-1890 CLAMPCLAMP
-
9217292172-0324 SCREW, 5X14SCREW, 5X14
-
9219192191-1556 TUBE, 7X10X300TUBE, 7X10X300
-
92191A92191-1663 TUBE, AIR SWITCH-AIR FILTERTUBE, AIR SWITCH-AIR FILTER
-
9219292192-0555 TUBE, ASV-FITTINGTUBE, ASV-FITTING
-
92192A92192-0556 TUBE, ASV-HEADTUBE, ASV-HEAD
-
92192B92192-0557 TUBE, ASV-CARBURETORTUBE, ASV-CARBURETOR
-
92192C92192-0594 TUBE, BREATHERTUBE, BREATHER
-
9220092200-0411 WASHER, 6.5X20X1.6WASHER, 6.5X20X1.6
