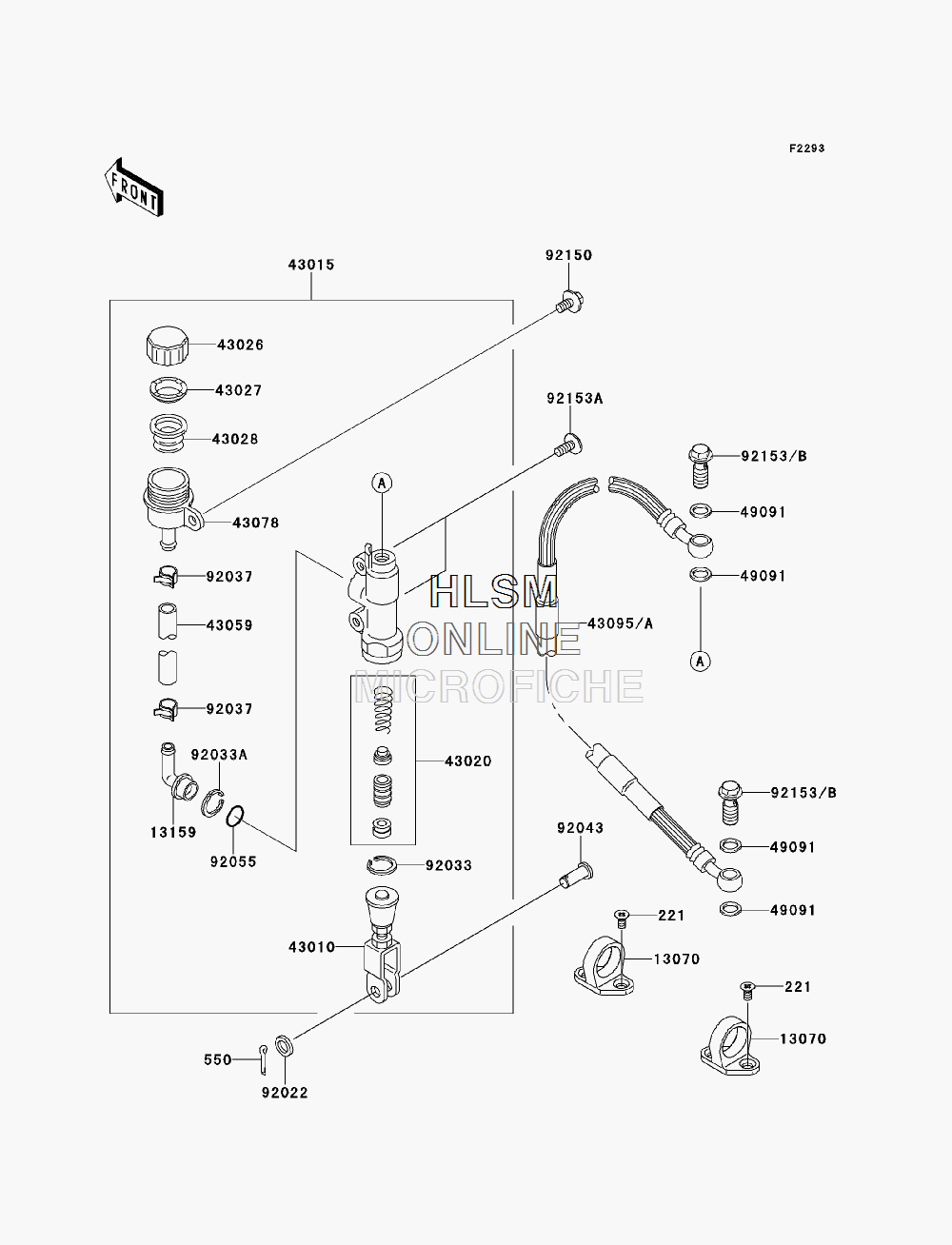

BRAKE - MASTER CYLINDER - REAR для Kawasaki KX100 (KX100DBF) - 2011 года выпуска
-
№АртикулНазвание
-
221221AA0510 SCREW-CSK-CROS, 5X10SCREW-CSK-CROS, 5X10
-
550550AA2015 PIN-COTTER, 2.0X15PIN-COTTER, 2.0X15
-
1307013070-1144 GUIDE, HOSEGUIDE, HOSE
-
1315913159-1056 CONNECTORCONNECTOR
-
4301043010-1079 ROD-ASSY-BRAKEROD-ASSY-BRAKE
-
4301543015-1606 CYLINDER-ASSY-MASTER, REARCYLINDER-ASSY-MASTER, REAR
-
4302043020-1094 PISTON-COMP-BRAKEPISTON-COMP-BRAKE
-
4302643026-1058 CAP-BRAKECAP-BRAKE
-
4302743027-1052 PLATE-DIAPHRAGMPLATE-DIAPHRAGM
-
4302843028-1060 DIAPHRAGMDIAPHRAGM
-
4305943059-1670 HOSE-BRAKE, REAR MASTER CYLINDERHOSE-BRAKE, REAR MASTER CYLINDER
-
4307843078-1068 RESERVOIRRESERVOIR
-
43095A43095-1234 HOSE-BRAKE, REAR, L=567HOSE-BRAKE, REAR, L=567
-
4909149091-0001 WASHER-SEAL, 10.1X14.5X1.5WASHER-SEAL, 10.1X14.5X1.5
-
9202292022-1028 WASHER, 8.5X13X1WASHER, 8.5X13X1
-
9203392033-0079 RING-SNAP, 20.9X24.6X1.2RING-SNAP, 20.9X24.6X1.2
-
92033A92033-1186 RING-SNAP, 20.5MMRING-SNAP, 20.5MM
-
9203792037-1710 CLAMPCLAMP
-
9204392043-0004 PINPIN
-
9205592055-0741 RING-O, 14.8X2.4RING-O, 14.8X2.4
-
9215092150-1340 BOLT, 6X14BOLT, 6X14
-
9215392153-0627 BOLT, OIL, L=23BOLT, OIL, L=23
-
92153A92153-1021 BOLT, SOCKET, 6X14BOLT, SOCKET, 6X14
