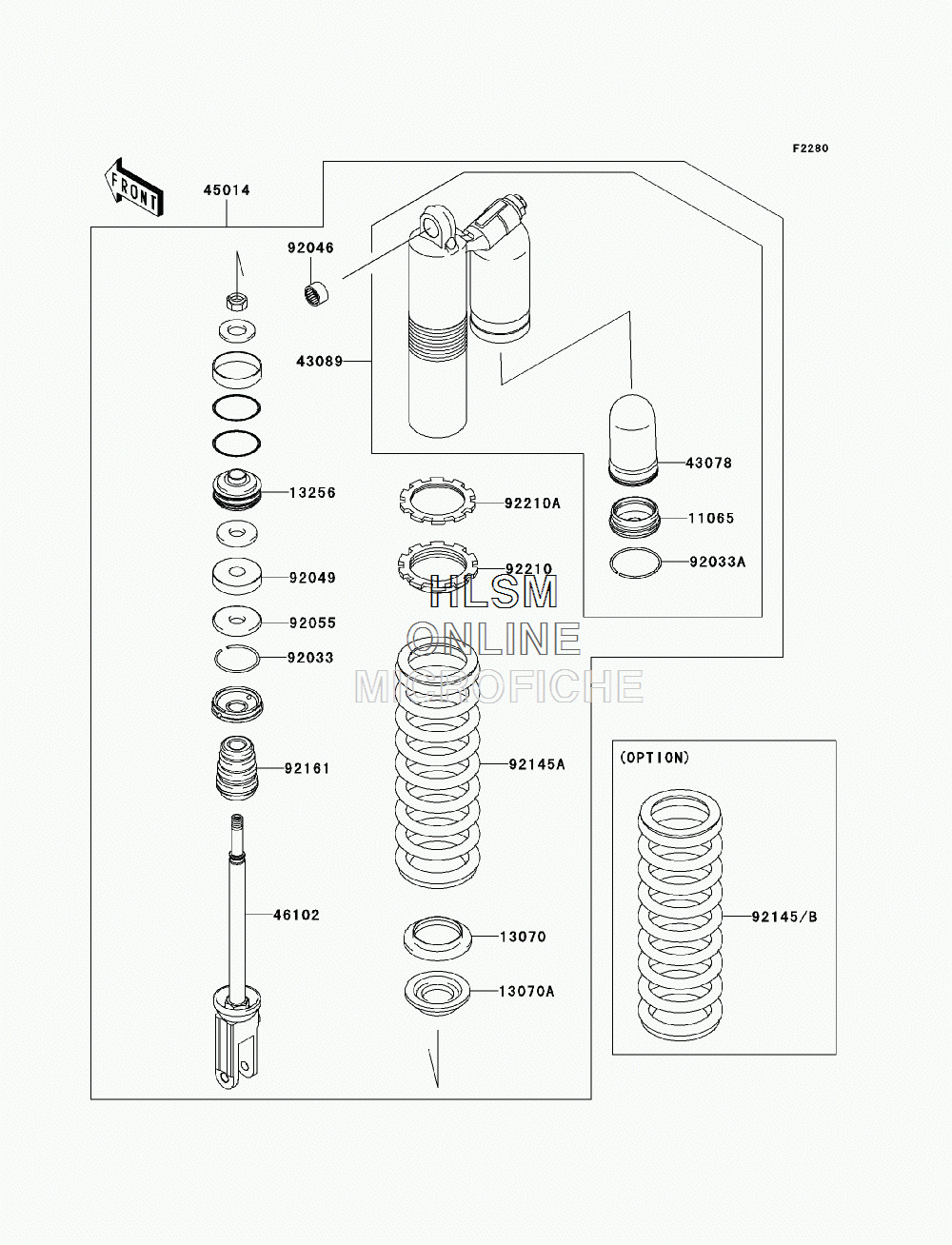

SUSPENSION - SHOCK ABSORBER для Kawasaki KX450F (KX450EBF) - 2011 года выпуска
-
№АртикулНазвание
-
1106511065-0338 CAP, SUB-TANKCAP, SUB-TANK
-
1307013070-0095 GUIDE, SPRINGGUIDE, SPRING
-
13070A13070-0101 GUIDE, SPRINGGUIDE, SPRING
-
1325613256-0006 PISTON, SHOCKABSORBERPISTON, SHOCKABSORBER
-
4307843078-0059 RESERVOIR, SHOCKABSORBERRESERVOIR, SHOCKABSORBER
-
4308943089-0019 CYLINDER-SHOCKABSORBERCYLINDER-SHOCKABSORBER
-
4501445014-0310-23N SHOCKABSORBER, SPG BLK+AJ BLU (FOR 777)SHOCKABSORBER, SPG BLK+AJ BLU (FOR 777)
-
4610246102-0155 ROD, PISTONROD, PISTON
-
9203392033-0044 RING-SNAPRING-SNAP
-
92033A92033-0059 RING-SNAPRING-SNAP
-
9204692046-1301 BEARING-NEEDLE, 7E-HVS16X22X12BEARING-NEEDLE, 7E-HVS16X22X12
-
9204992049-0116 SEAL-OILSEAL-OIL
-
9205592055-0165 O-RINGO-RING
-
9214592145-0638-17D SPRING, SHOCK, K=52N/MM (BLACK) (OPTION) (FOR 777)SPRING, SHOCK, K=52N/MM (BLACK) (OPTION) (FOR 777)
-
92145A92145-0716-17D SPRING, SHOCK, K=54N/MM (BLACK) (FOR 777)SPRING, SHOCK, K=54N/MM (BLACK) (FOR 777)
-
92145B92145-0762-17D SPRING, SHOCK, K=56N/MM (BLACK) (OPTION) (FOR 777)SPRING, SHOCK, K=56N/MM (BLACK) (OPTION) (FOR 777)
-
9216192161-1172 DAMPER, SHOCKABSORBERDAMPER, SHOCKABSORBER
-
9221092210-0494 NUT, SPRING ADJUSTNUT, SPRING ADJUST
-
92210A92210-0495 NUT, SPRING ADJUST LOCKNUT, SPRING ADJUST LOCK
