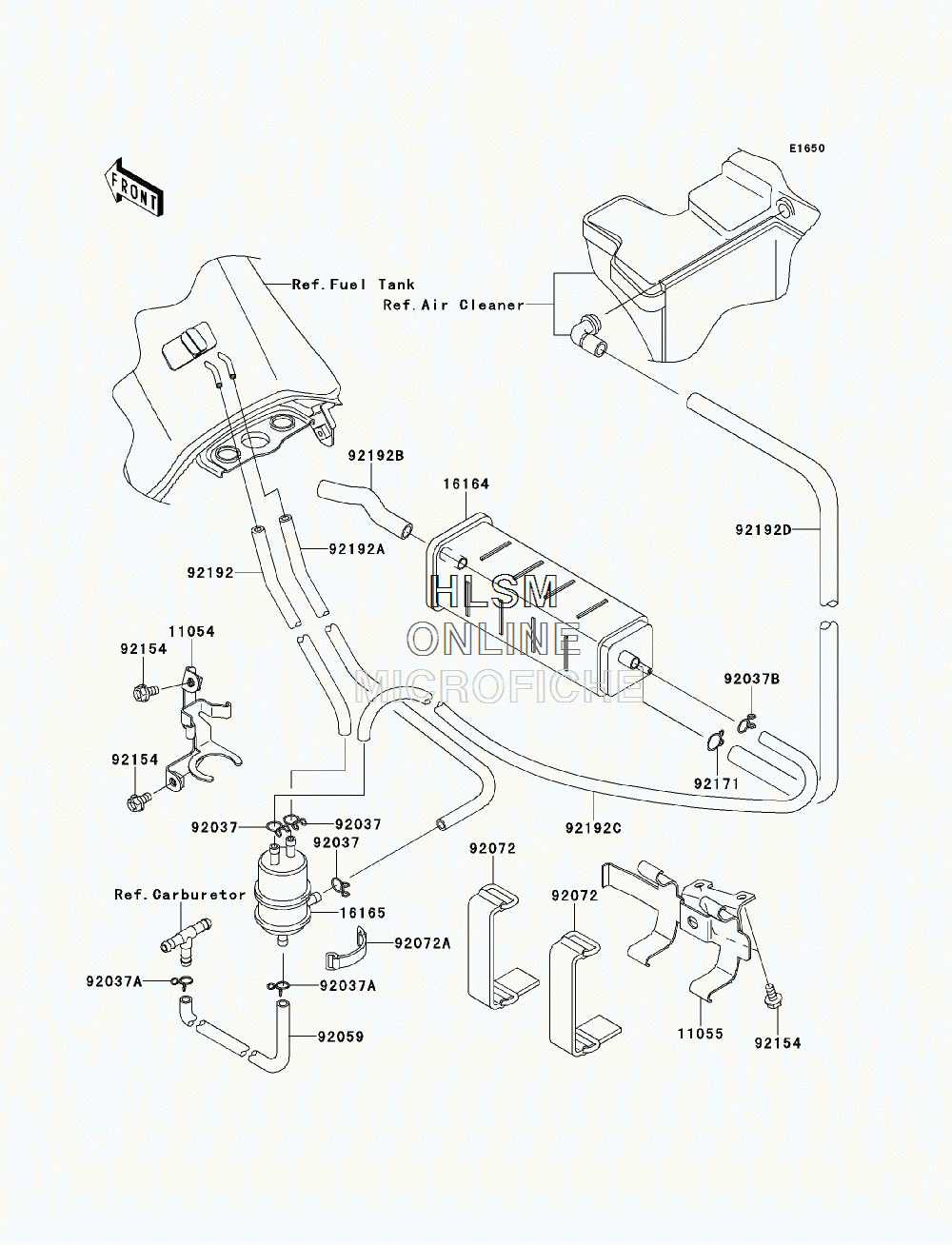

FUEL EVAPORATIVE SYSTEM (CALIF. ONLY) для Kawasaki KLR650 (KL650ECF) - 2012 года выпуска
-
№АртикулНазвание
-
1105411054-0494 BRACKET, SEPARATORBRACKET, SEPARATOR
-
1105511055-1266 BRACKET, CANISTERBRACKET, CANISTER
-
1616416164-0009 CANISTERCANISTER
-
1616516165-1001 SEPARATORSEPARATOR
-
9203792037-147 CLAMP, TUBECLAMP, TUBE
-
92037A92037-1712 CLAMPCLAMP
-
92037B92037-1862 CLAMP, 14MMCLAMP, 14MM
-
9205992059-1804 TUBE, 4X9X310, (WHITE)TUBE, 4X9X310, (WHITE)
-
9207292072-0135 BAND, L=90BAND, L=90
-
92072A92072-1419 BAND, L=50BAND, L=50
-
9215492154-1050 BOLT, FLANGED, 6X12BOLT, FLANGED, 6X12
-
9217192171-0576 CLAMPCLAMP
-
9219292192-0519 TUBE, 5X9X400TUBE, 5X9X400
-
92192A92192-0520 TUBE, 5X10X300TUBE, 5X10X300
-
92192B92192-0743 TUBE, AIR INTAKE, CANISTERTUBE, AIR INTAKE, CANISTER
-
92192C92192-0758 TUBE, SEPARATOR-CANISTERTUBE, SEPARATOR-CANISTER
-
92192D92192-0759 TUBE, A/C-CANISTERTUBE, A/C-CANISTER
