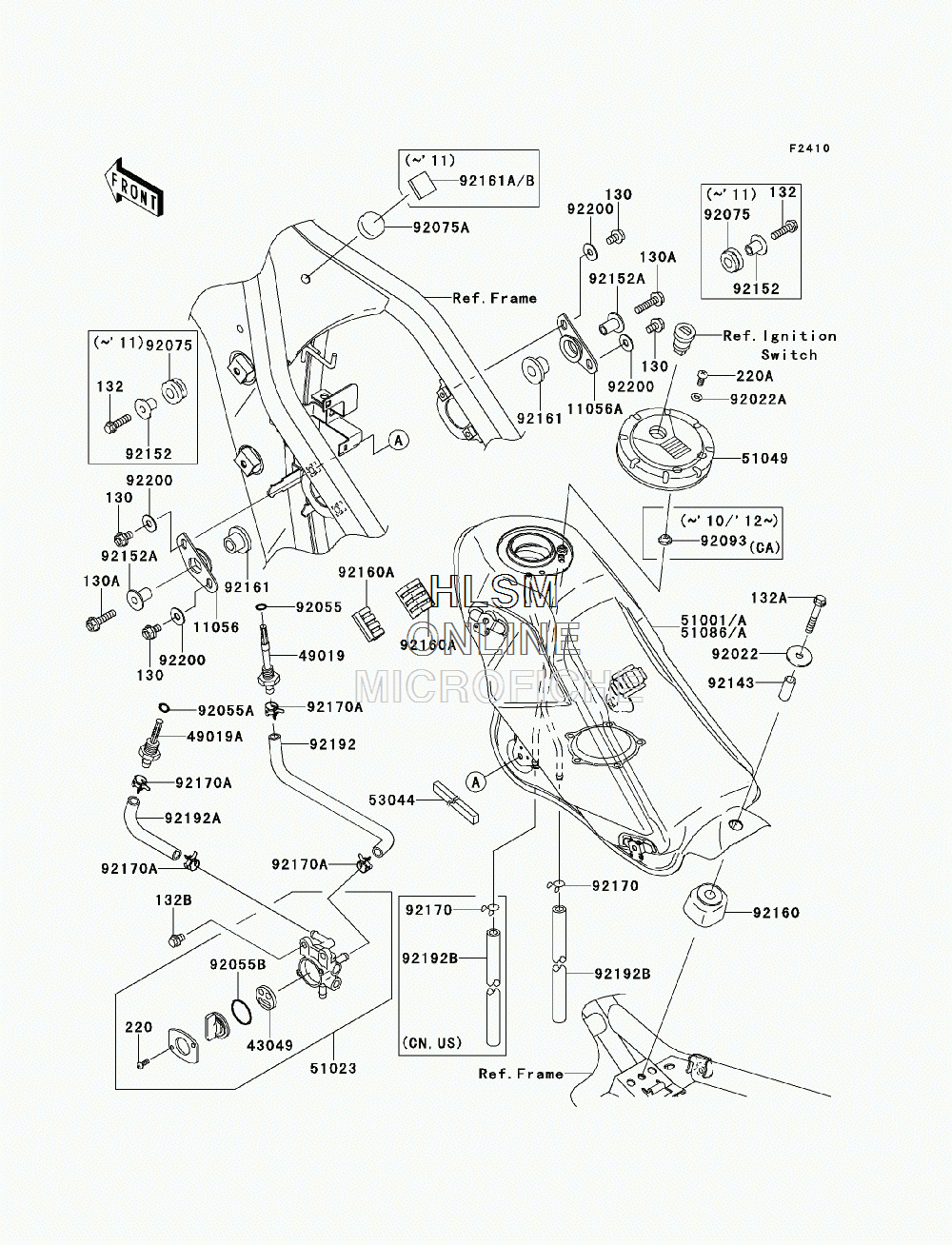

FUEL TANK для Kawasaki KLX250S (KLX250TCF) - 2012 года выпуска
-
№АртикулНазвание
-
1105611056-1452 BRACKET, ADJUSTER, LEFT HANDBRACKET, ADJUSTER, LEFT HAND
-
11056A11056-1457 BRACKET, ADJUSTER, RIGHT HANDBRACKET, ADJUSTER, RIGHT HAND
-
4304943049-1091 PACKING, TAP VALVEPACKING, TAP VALVE
-
4901949019-0009 FILTER-FUEL, "ON"FILTER-FUEL, "ON"
-
49019A49019-1057 FILTER-FUEL, "RES"FILTER-FUEL, "RES"
-
5100151001-0295-25Q TANK-COMP-FUEL, (F.S.BLACK) (EXCEPT CALIF.)TANK-COMP-FUEL, (F.S.BLACK) (EXCEPT CALIF.)
-
51001A51001-0296-25Q TANK-COMP-FUEL, (F.S.BLACK) (CALIF. ONLY)TANK-COMP-FUEL, (F.S.BLACK) (CALIF. ONLY)
-
5102351023-1322 TAP-ASSY, FUELTAP-ASSY, FUEL
-
5104951049-1134 CAP-TANK, FUELCAP-TANK, FUEL
-
5304453044-1209 TRIM, L=490TRIM, L=490
-
9202292022-1690 WASHER, 6.5X24X2WASHER, 6.5X24X2
-
92022A92022-1977 WASHER, 5.1X10X1.0WASHER, 5.1X10X1.0
-
9205592055-1386 RING-O, ID=9.5RING-O, ID=9.5
-
92055A92055-1387 RING-O, 11.5X1.5RING-O, 11.5X1.5
-
92055B92055-1419 RING-O, TAP LEVERRING-O, TAP LEVER
-
92075A92075-281 DAMPERDAMPER
-
9209392093-1030 SEAL, FUEL TANK CAP (CALIF. ONLY)SEAL, FUEL TANK CAP (CALIF. ONLY)
-
9214392143-1459 COLLAR, 6.8X10X24.5COLLAR, 6.8X10X24.5
-
92152A92152-1560 COLLAR, 6.5X10X18COLLAR, 6.5X10X18
-
9216092160-1254 DAMPER, FUEL TANK, REARDAMPER, FUEL TANK, REAR
-
92160A92160-1328 DAMPER, FUEL TANKDAMPER, FUEL TANK
-
9216192161-1397 DAMPER, 10X16X15DAMPER, 10X16X15
-
9217092170-1834 CLAMP, TUBE (CALIF. ONLY)CLAMP, TUBE (CALIF. ONLY)
-
9217092170-1834 CLAMP, TUBE (EXCEPT CALIF.)CLAMP, TUBE (EXCEPT CALIF.)
-
92170A92170-1872 CLAMPCLAMP
-
130130BB0610 BOLT-FLANGED, 6X10BOLT-FLANGED, 6X10
-
130A130BB0625 BOLT-FLANGED, 6X25BOLT-FLANGED, 6X25
-
132A132BA0635 BOLT-FLANGED-SMALL, 6X35BOLT-FLANGED-SMALL, 6X35
-
132B132BB0608 BOLT-FLANGED-SMALL, 6X8BOLT-FLANGED-SMALL, 6X8
-
220220AA0308 SCREW-PAN-CROS, 3X8SCREW-PAN-CROS, 3X8
-
220A220AA0510 SCREW-PAN-CROS, 5X10SCREW-PAN-CROS, 5X10
-
9219292192-0706 TUBE, FUEL, ONTUBE, FUEL, ON
-
92192A92192-0707 TUBE, FUEL, RESERVETUBE, FUEL, RESERVE
-
92192B92192-0778 TUBE, 7X12X700 (CALIF. ONLY)TUBE, 7X12X700 (CALIF. ONLY)
-
92192B92192-0778 TUBE, 7X12X700 (EXCEPT CALIF.)TUBE, 7X12X700 (EXCEPT CALIF.)
-
9220092200-0766 WASHER, 6.5X18X1.6WASHER, 6.5X18X1.6
