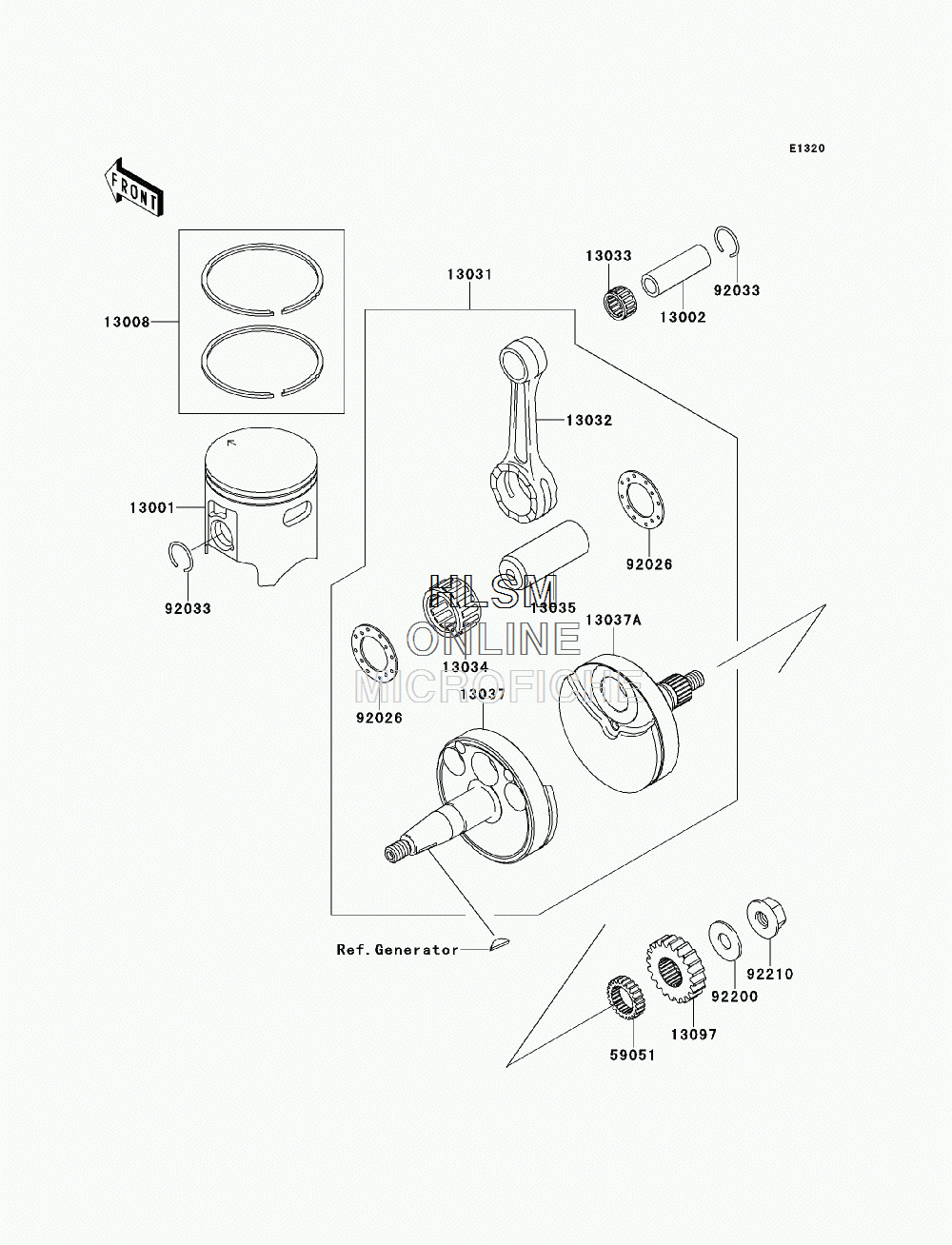

CRANKSHAFT - PISTON(S) для Kawasaki KX100 (KX100DCF) - 2012 года выпуска
-
№АртикулНазвание
-
1300113001-0123 PISTON-ENGINEPISTON-ENGINE
-
1300213002-1018 PIN-PISTONPIN-PISTON
-
1300813008-1107 RING-SET-PISTONRING-SET-PISTON
-
1303113031-0040 CRANKSHAFT-COMPCRANKSHAFT-COMP
-
1303213032-1230 ROD-CONNECTINGROD-CONNECTING
-
1303313033-1060 BEARING-SMALL ENDBEARING-SMALL END
-
1303413034-0013 BEARING-BIG END, SKTZ 222916EGSBEARING-BIG END, SKTZ 222916EGS
-
1303513035-1054 PIN-CRANKPIN-CRANK
-
1303713037-0050 CRANKSHAFT, LEFT HANDCRANKSHAFT, LEFT HAND
-
13037A13037-0051 CRANKSHAFT, RIGHT HANDCRANKSHAFT, RIGHT HAND
-
1309713097-1148 GEAR-PRIMARY SPUR, 20TGEAR-PRIMARY SPUR, 20T
-
5905159051-1146 GEAR-SPUR, PUMP, 23TGEAR-SPUR, PUMP, 23T
-
9202692026-1136 SPACER, 22.2X37X1.0SPACER, 22.2X37X1.0
-
9203392033-0005 RING-SNAPRING-SNAP
-
9220092200-0213 WASHER, 10.2X25X1.5WASHER, 10.2X25X1.5
-
9221092210-0215 NUT, FLANGED, M10XL1.25NUT, FLANGED, M10XL1.25
