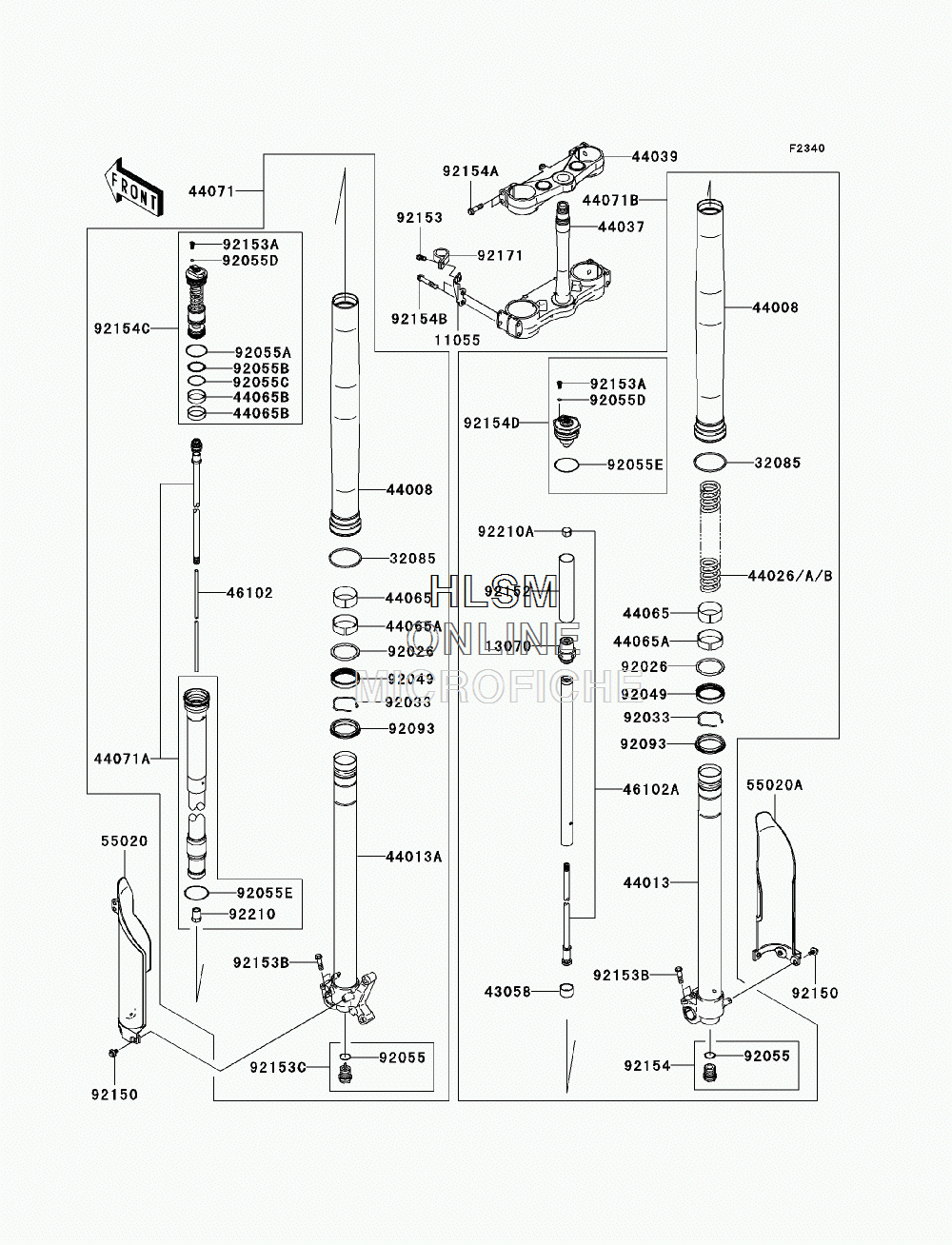

FRONT FORK для Kawasaki KX250F (KX250YCF) - 2012 года выпуска
-
№АртикулНазвание
-
1105511055-1405 BRACKET,BRAKE HOSEBRACKET,BRAKE HOSE
-
1307013070-0125 GUIDEGUIDE
-
3208532085-0711 STOPPERSTOPPER
-
4305843058-0037 RINGRING
-
4400844008-0016 PIPE-FORK OUTERPIPE-FORK OUTER
-
4401344013-0164 PIPE-FORK INNER, RIGHT HANDPIPE-FORK INNER, RIGHT HAND
-
44013A44013-0189 PIPE-FORK INNER, LEFT HANDPIPE-FORK INNER, LEFT HAND
-
4402644026-0152 SPRING-FRONT FORK,K=9.1N/MM (OPTION)SPRING-FRONT FORK,K=9.1N/MM (OPTION)
-
44026A44026-0157 SPRING-FRONT FORK,K=9.5N/MMSPRING-FRONT FORK,K=9.5N/MM
-
44026B44026-0166 SPRING-FRONT FORK,K=9.9N/MM (OPTION)SPRING-FRONT FORK,K=9.9N/MM (OPTION)
-
4403744037-0113-21 HOLDER-FORK UNDER,F.BLACK (FOR 777)HOLDER-FORK UNDER,F.BLACK (FOR 777)
-
4403944039-0103-21 HOLDER-FORK UPPER,F.BLACK (FOR 777)HOLDER-FORK UPPER,F.BLACK (FOR 777)
-
4406544065-0027 BUSHING-FRONT FORK,SLIDEBUSHING-FRONT FORK,SLIDE
-
44065A44065-0028 BUSHING-FRONT FORK,GUIDEBUSHING-FRONT FORK,GUIDE
-
44065B44065-0029 BUSHING-FRONT FORK,SLIDEBUSHING-FRONT FORK,SLIDE
-
4407144071-0777 DAMPER-ASSY,FORK, LEFT HANDDAMPER-ASSY,FORK, LEFT HAND
-
44071A44071-0778 DAMPER-ASSY,COMP, LEFT HANDDAMPER-ASSY,COMP, LEFT HAND
-
44071B44071-0779 DAMPER-ASSY,FORK, RIGHT HANDDAMPER-ASSY,FORK, RIGHT HAND
-
4610246102-0107 ROD,PUSHROD,PUSH
-
46102A46102-0570 ROD,JOINTROD,JOINT
-
5502055020-0441-6C GUARD,FORK, LEFT HAND,EBONY (FOR 777)GUARD,FORK, LEFT HAND,EBONY (FOR 777)
-
55020A55020-0442-6C GUARD,FORK, RIGHT HAND,EBONY (FOR 777)GUARD,FORK, RIGHT HAND,EBONY (FOR 777)
-
9202692026-0144 SPACER,SEALSPACER,SEAL
-
9203392033-0039 RING-SNAPRING-SNAP
-
9204992049-0074 SEAL-OILSEAL-OIL
-
9205592055-0090 RING-O,CENTER BOLTRING-O,CENTER BOLT
-
92055A92055-0091 RING-ORING-O
-
92055B92055-0092 RING-ORING-O
-
92055C92055-0093 RING-ORING-O
-
92055D92055-0094 RING-ORING-O
-
92055E92055-0095 RING-ORING-O
-
9209392093-0059 SEAL,DUSTSEAL,DUST
-
9215092150-1340 BOLT,6X14BOLT,6X14
-
9215292152-0889 COLLARCOLLAR
-
9215392153-1397 BOLT,FLANGEDBOLT,FLANGED
-
92153A92153-1398 BOLT,PLUGBOLT,PLUG
-
92153B92153-1399 BOLT,FLANGED,8X40BOLT,FLANGED,8X40
-
92153C92153-1778 BOLT,CENTERBOLT,CENTER
-
9215492154-0409 BOLTBOLT
-
92154A92154-0463 BOLTBOLT
-
92154B92154-0464 BOLTBOLT
-
92154C92154-0877-KW BOLT,FORK,BLUE (FOR 777)BOLT,FORK,BLUE (FOR 777)
-
92154D92154-0878-KW BOLT,ADJ.,COMP,BLUE (FOR 777)BOLT,ADJ.,COMP,BLUE (FOR 777)
-
9217192171-0506 CLAMP,BRAKE HOSECLAMP,BRAKE HOSE
-
9221092210-0430 NUT,LOCKNUT,LOCK
-
92210A92210-0619 NUTNUT
