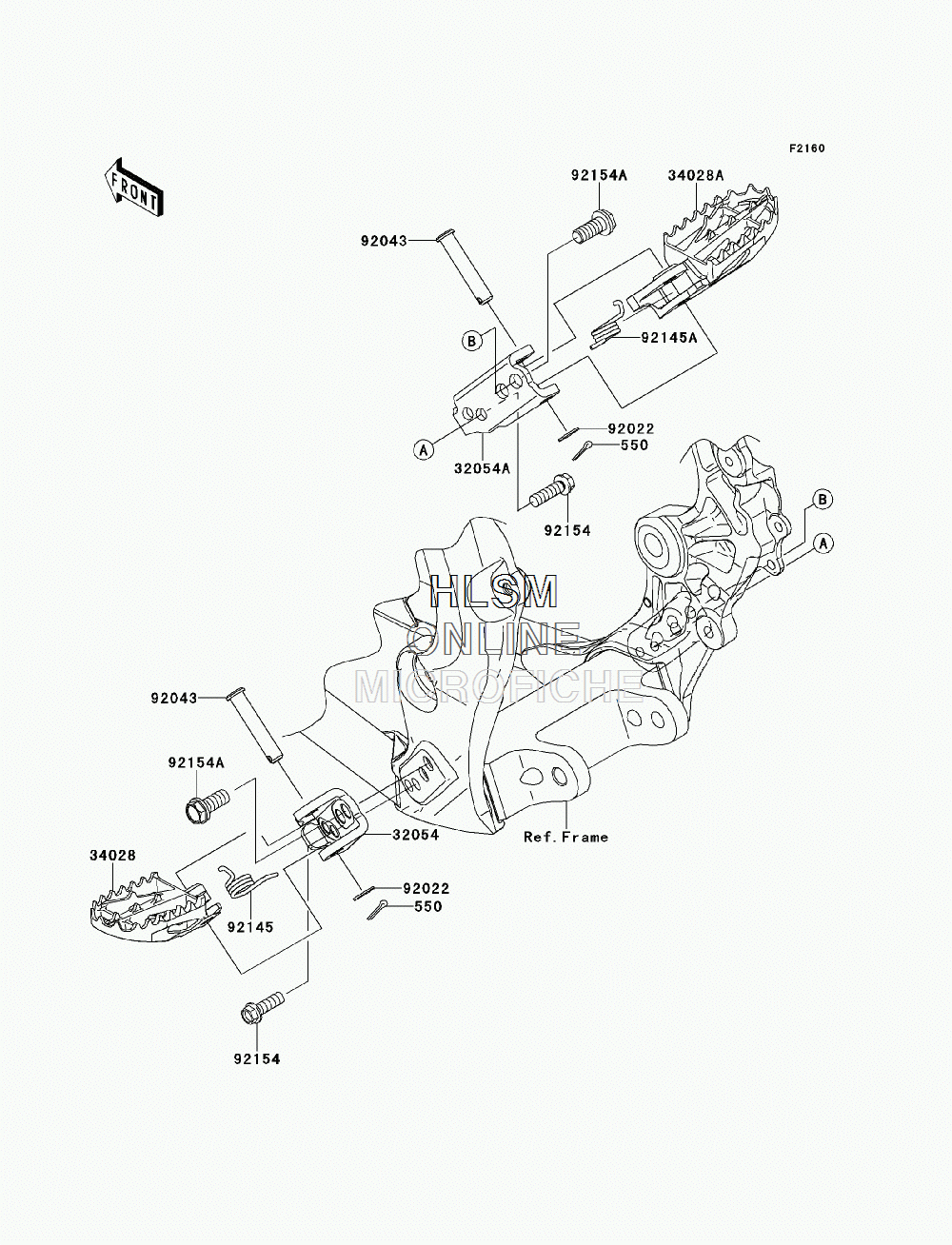

FOOTRESTS для Kawasaki KX450F(KX450FDF) - 2013 года выпуска
-
№АртикулНазвание
-
550550S3020 PIN-COTTER, 3.0X20PIN-COTTER, 3.0X20
-
3205432054-0054 BRACKET-STEP, LEFT HANDBRACKET-STEP, LEFT HAND
-
32054A32054-0055 BRACKET-STEP, RIGHT HANDBRACKET-STEP, RIGHT HAND
-
3402834028-0104 STEP, LEFT HANDSTEP, LEFT HAND
-
34028A34028-0105 STEP, RIGHT HANDSTEP, RIGHT HAND
-
9202292022-1829 WASHER, 10.2X16X1WASHER, 10.2X16X1
-
9204392043-0074 PIN, 10X42.5PIN, 10X42.5
-
9214592145-0819 SPRING, STEP, LEFT HANDSPRING, STEP, LEFT HAND
-
92145A92145-0820 SPRING, STEP, RIGHT HANDSPRING, STEP, RIGHT HAND
-
9215492154-0515 BOLT, FLANGED, 8X25BOLT, FLANGED, 8X25
-
92154A92154-0545 BOLT, FLANGED, 10X23BOLT, FLANGED, 10X23
