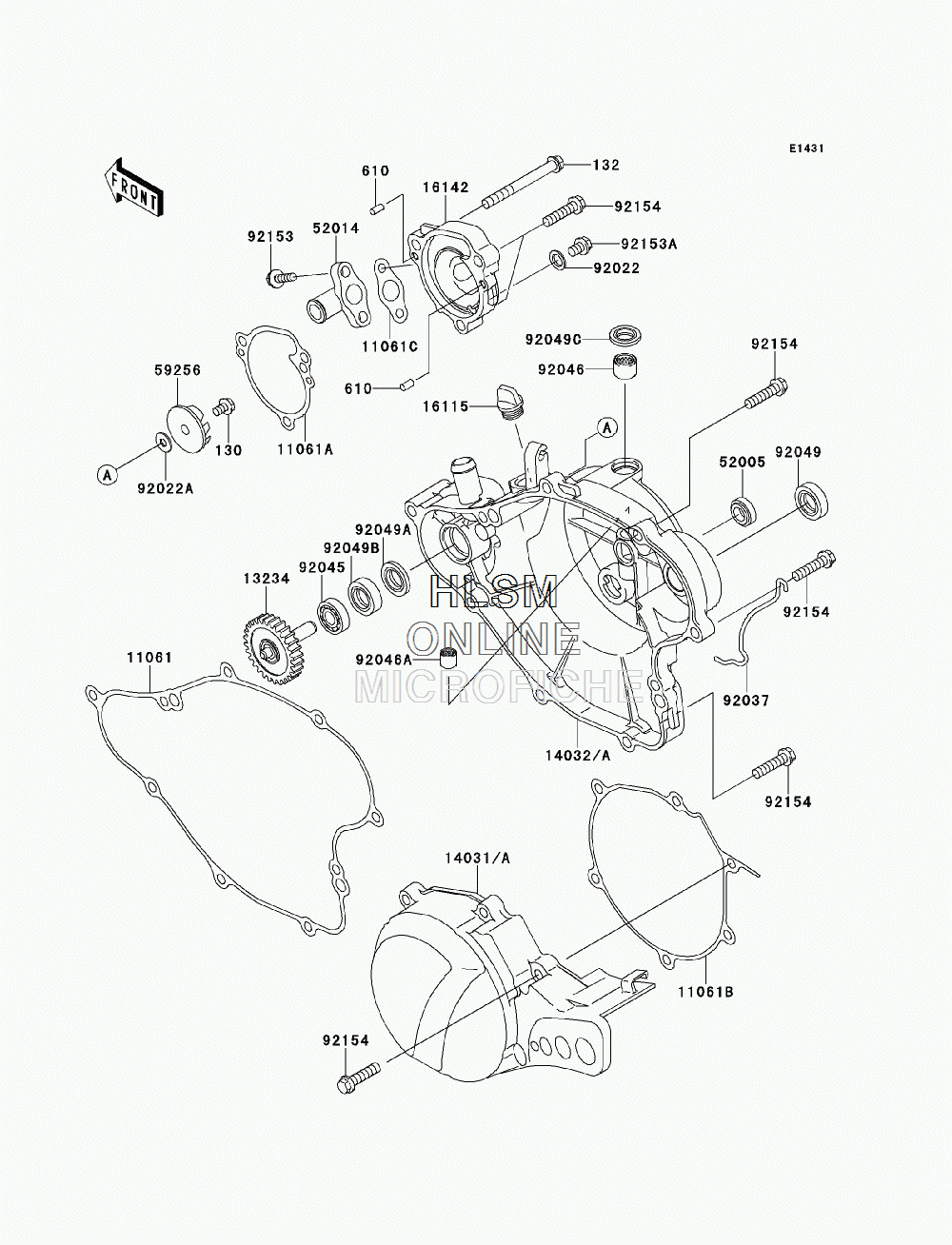

ENGINE COVER для Kawasaki KX65 (KX65ADF) - 2013 года выпуска
-
№АртикулНазвание
-
130130CA0510 BOLT-FLANGED, 5X10BOLT-FLANGED, 5X10
-
132132BC0660 BOLT-FLANGED-SMALL, 6X60BOLT-FLANGED-SMALL, 6X60
-
610610A0408 ROLLER, 4X8ROLLER, 4X8
-
1106111061-0121 GASKET, CLUTCH COVERGASKET, CLUTCH COVER
-
11061A11061-0159 GASKET, WATER PUMP COVERGASKET, WATER PUMP COVER
-
11061B11061-0193 GASKET, GENERATOR COVERGASKET, GENERATOR COVER
-
11061C11061-0202 GASKET, ELBOWGASKET, ELBOW
-
1323413234-1110 SHAFT-COMP, PUMPSHAFT-COMP, PUMP
-
14031A14031-0579 COVER-GENERATORCOVER-GENERATOR
-
14032A14032-0577 COVER-CLUTCHCOVER-CLUTCH
-
1611516115-018 CAP-OIL FILLERCAP-OIL FILLER
-
1614216142-0023 COVER-PUMPCOVER-PUMP
-
5200552005-0019 GAUGE, OIL LEVELGAUGE, OIL LEVEL
-
5201452014-1094 ELBOWELBOW
-
5925659256-1064 IMPELLERIMPELLER
-
9202292022-077 WASHER, 6.1X12X1WASHER, 6.1X12X1
-
92022A92022-1380 WASHER, 5.2X13X1WASHER, 5.2X13X1
-
9203792037-1236 CLAMP, TUBECLAMP, TUBE
-
9204592045-1305 BEARING-BALL, 608MC3BEARING-BALL, 608MC3
-
9204692046-0046 BEARING-NEEDLE, HK1010FMBEARING-NEEDLE, HK1010FM
-
92046A92046-1217 BEARING-NEEDLE, 6BTM109BEARING-NEEDLE, 6BTM109
-
9204992049-002 SEAL-OIL, SB16244SEAL-OIL, SB16244
-
92049A92049-1359 SEAL-OIL, MH8X18X3.5-ASEAL-OIL, MH8X18X3.5-A
-
92049B92049-1366 SEAL-OIL, MHSD8X18X10J-1SEAL-OIL, MHSD8X18X10J-1
-
92049C92049-1414 SEAL-OIL, BG1408F0SEAL-OIL, BG1408F0
-
9215392153-0859 BOLT, 5X16BOLT, 5X16
-
92153A92153-0860 BOLT, 6X8BOLT, 6X8
-
9215492154-0520 BOLT, FLANGED, 6X25BOLT, FLANGED, 6X25
