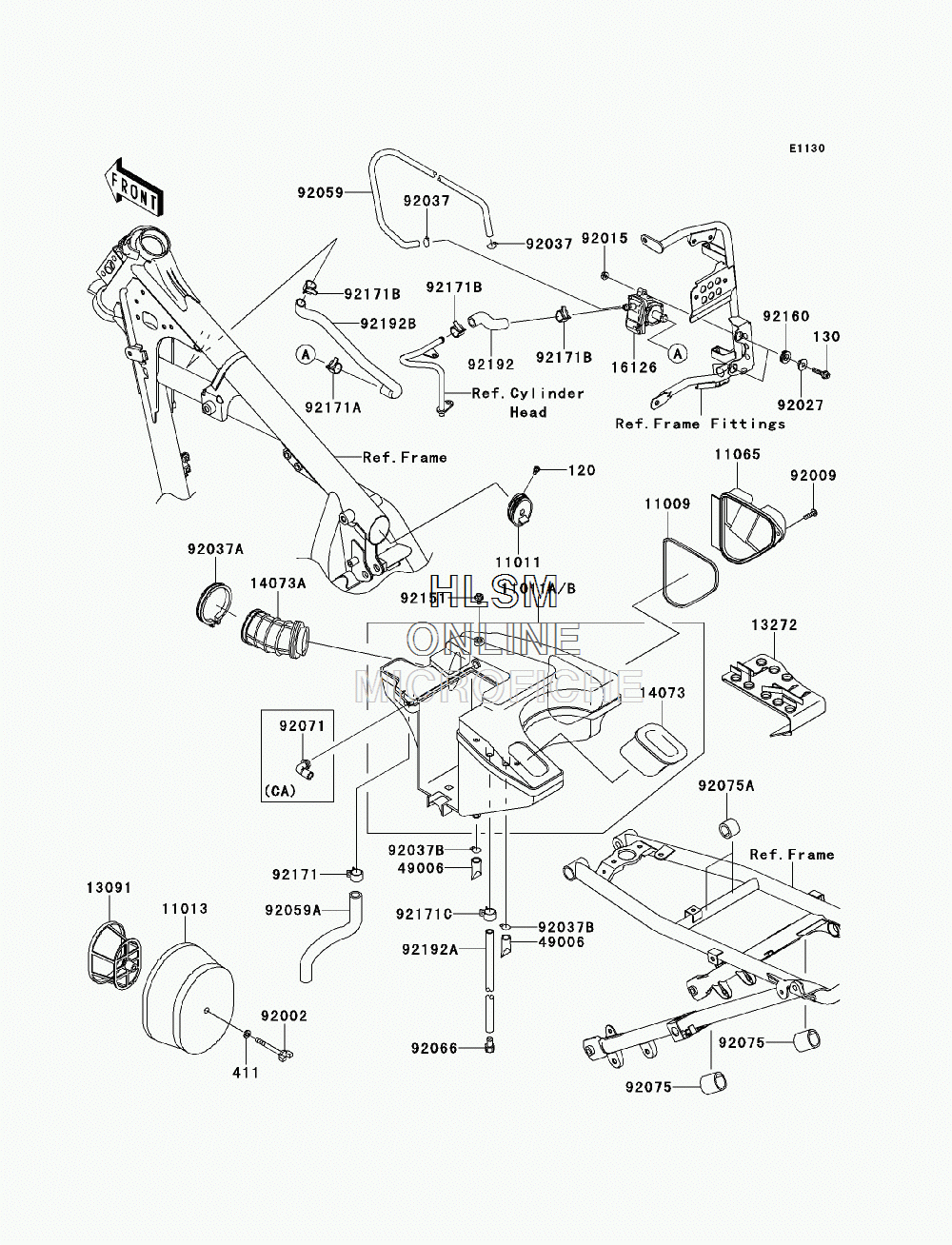

AIR CLEANER для Kawasaki KLR650 NEW EDITION (KL650EES) - 2014 года выпуска
-
№АртикулНазвание
-
120120CA0508 BOLT-SOCKET, 5X8BOLT-SOCKET, 5X8
-
130130BA0625 BOLT-FLANGED, 6X25BOLT-FLANGED, 6X25
-
411411AA0600 WASHER-PLAIN, 6.5X13X1WASHER-PLAIN, 6.5X13X1
-
1100911009-1649 GASKETGASKET
-
1101111011-0095 CASE-AIR FILTERCASE-AIR FILTER
-
11011A11011-0159 CASE-AIR FILTER (EXCEPT CALIF.)CASE-AIR FILTER (EXCEPT CALIF.)
-
11011B11011-0160 CASE-AIR FILTER (CALIF. ONLY)CASE-AIR FILTER (CALIF. ONLY)
-
1101311013-1152 ELEMENT-AIR FILTERELEMENT-AIR FILTER
-
1106511065-1133 CAP, AIR FILTERCAP, AIR FILTER
-
1309113091-1473 HOLDERHOLDER
-
1327213272-0598 PLATEPLATE
-
1407314073-0119 DUCTDUCT
-
14073A14073-1288 DUCTDUCT
-
1612616126-0054 VALVE, 2ND AIRVALVE, 2ND AIR
-
4900649006-1211 BOOTBOOT
-
9200292002-1904 BOLTBOLT
-
9200992009-1460 SCREWSCREW
-
9201592015-1233 NUT, FLANGED, 6MM, (BLACK)NUT, FLANGED, 6MM, (BLACK)
-
9202792027-1848 COLLAR, L=7.4COLLAR, L=7.4
-
9203792037-1610 CLAMPCLAMP
-
92037A92037-1859 CLAMPCLAMP
-
92037B92037-1900 CLAMP, 14.5MMCLAMP, 14.5MM
-
9205992059-1760 TUBE, 4X9X550, (WHITE)TUBE, 4X9X550, (WHITE)
-
92059A92059-1774 TUBETUBE
-
9206692066-0127 PLUG, DRAIN, 8.5X15PLUG, DRAIN, 8.5X15
-
9207192071-1147 GROMMET, AIR FILTER (CALIF. ONLY)GROMMET, AIR FILTER (CALIF. ONLY)
-
9207592075-1906 DAMPER, 25X31X30DAMPER, 25X31X30
-
92075A92075-1907 DAMPER, 18X27X20DAMPER, 18X27X20
-
9215192151-1344 BOLT, 6X10BOLT, 6X10
-
9216092160-1278 DAMPERDAMPER
-
9217192171-0329 CLAMPCLAMP
-
92171A92171-0976 CLAMP, 16MMCLAMP, 16MM
-
92171B92171-1600 CLAMP, 15MMCLAMP, 15MM
-
92171C92171-1870 CLAMP, 12MMCLAMP, 12MM
-
9219292192-0323 TUBE, ASV-HEAD, (YELLOW)TUBE, ASV-HEAD, (YELLOW)
-
92192A92192-0883 TUBE, 8X12X380TUBE, 8X12X380
-
92192B92192-0905 TUBE, FRAME-ASV, (PINK)TUBE, FRAME-ASV, (PINK)
