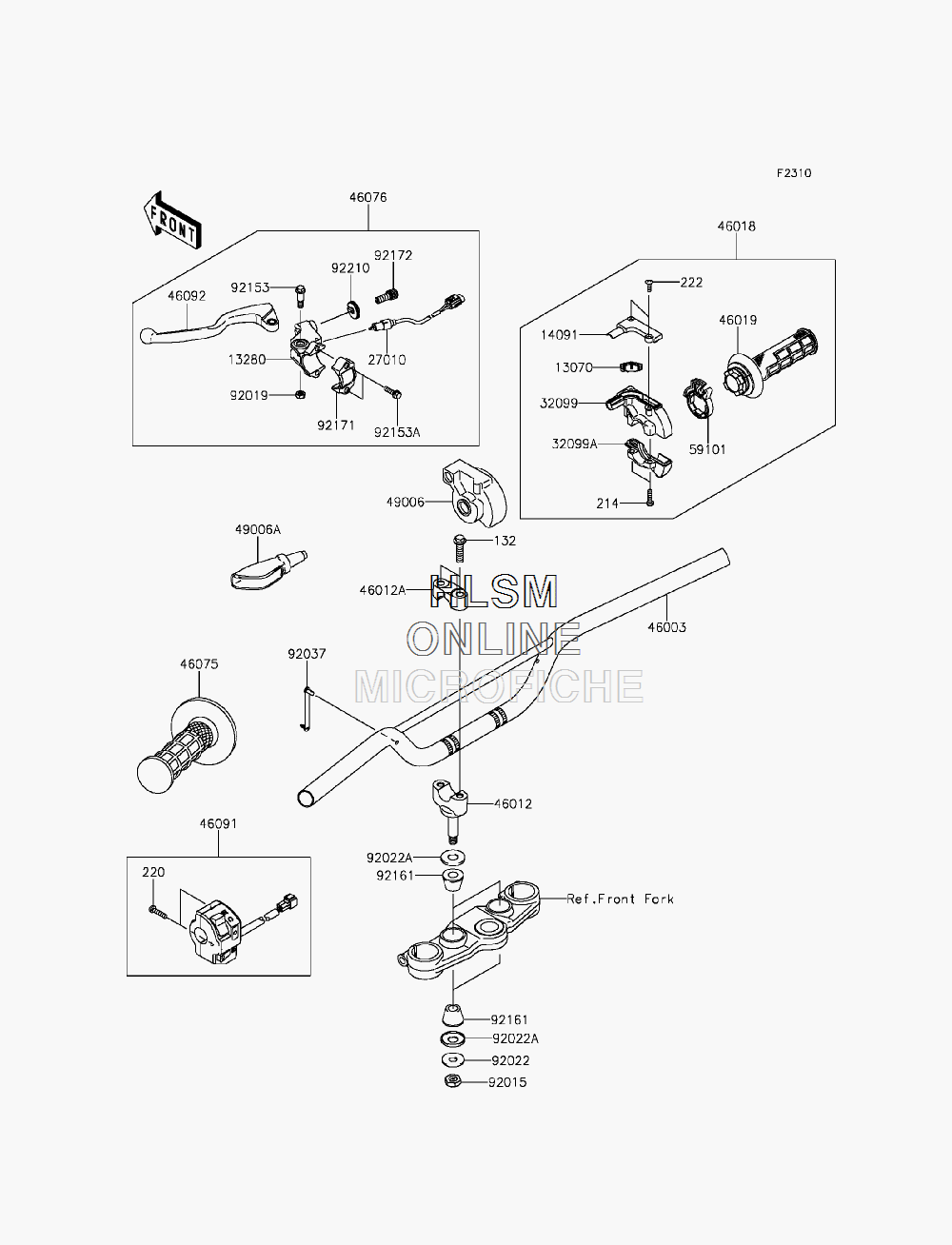

HANDLEBAR для Kawasaki KLX140 (KLX140AEF) - 2014 года выпуска
-
№АртикулНазвание
-
132132BC0830 BOLT-FLANGED-SMALL,8X30BOLT-FLANGED-SMALL,8X30
-
214214AB0518 SCREW-PAN+-,5X18SCREW-PAN+-,5X18
-
220220AB0522 SCREW-PAN-CROS,5X22SCREW-PAN-CROS,5X22
-
222222AB0412 SCREW-CSK-RD-CROS,4X12SCREW-CSK-RD-CROS,4X12
-
1307013070-0083 GUIDE,THROTTLEGUIDE,THROTTLE
-
1328013280-0256 HOLDER,CLUTCH LEVERHOLDER,CLUTCH LEVER
-
1409114091-0873 COVER,THROTTLE CASE,UPPERCOVER,THROTTLE CASE,UPPER
-
2701027010-0071 SWITCH,CLUTCHSWITCH,CLUTCH
-
3209932099-0037 CASE,THROTTLE,UPPERCASE,THROTTLE,UPPER
-
32099A32099-0038 CASE,THROTTLE,LOWERCASE,THROTTLE,LOWER
-
4600346003-0205-458 HANDLE,(P.SILVER)HANDLE,(P.SILVER)
-
4601246012-0013-458 HOLDER-HANDLE,LOWER,(P.SILVER)HOLDER-HANDLE,LOWER,(P.SILVER)
-
46012A46012-0023-458 HOLDER-HANDLE,UPPER,(P.SILVER)HOLDER-HANDLE,UPPER,(P.SILVER)
-
4601846018-0073 GRIP-ASSY-THROTTLEGRIP-ASSY-THROTTLE
-
4601946019-0023 GRIP-ASSY,THROTTLEGRIP-ASSY,THROTTLE
-
4607546075-0072 GRIP, LEFT HANDGRIP, LEFT HAND
-
4607646076-0049 LEVER-ASSY-GRIP,CLUTCHLEVER-ASSY-GRIP,CLUTCH
-
4609146091-0226 HOUSING-ASSY-CONTROL, LEFT HANDHOUSING-ASSY-CONTROL, LEFT HAND
-
4609246092-0026 LEVER-GRIP,CLUTCHLEVER-GRIP,CLUTCH
-
4900649006-0075 BOOT,THROTTLE CASEBOOT,THROTTLE CASE
-
49006A49006-0080 BOOT, LEVER HOLDERBOOT, LEVER HOLDER
-
5910159101-0005 REEL,THROTTLEREEL,THROTTLE
-
9201592015-1962 NUT,LOCK,10MMNUT,LOCK,10MM
-
9201992019-008 NUT,LOCK,6MMNUT,LOCK,6MM
-
9202292022-1088 WASHER,10.2X28X2WASHER,10.2X28X2
-
92022A92022-1737 WASHERWASHER
-
9203792037-1163 CLAMP,SPEED,L=58CLAMP,SPEED,L=58
-
9215392153-1897 BOLT,6MMBOLT,6MM
-
92153A92153-1898 BOLT,5X20BOLT,5X20
-
9216192161-0632 DAMPER,HANDLE HOLDERDAMPER,HANDLE HOLDER
-
9217192171-1671 CLAMP, LEVER HOLDERCLAMP, LEVER HOLDER
-
9217292172-0330 SCREW,CABLE ADJUST,8MMSCREW,CABLE ADJUST,8MM
-
9221092210-0411 NUT,CABLE ADJUSTNUT,CABLE ADJUST
