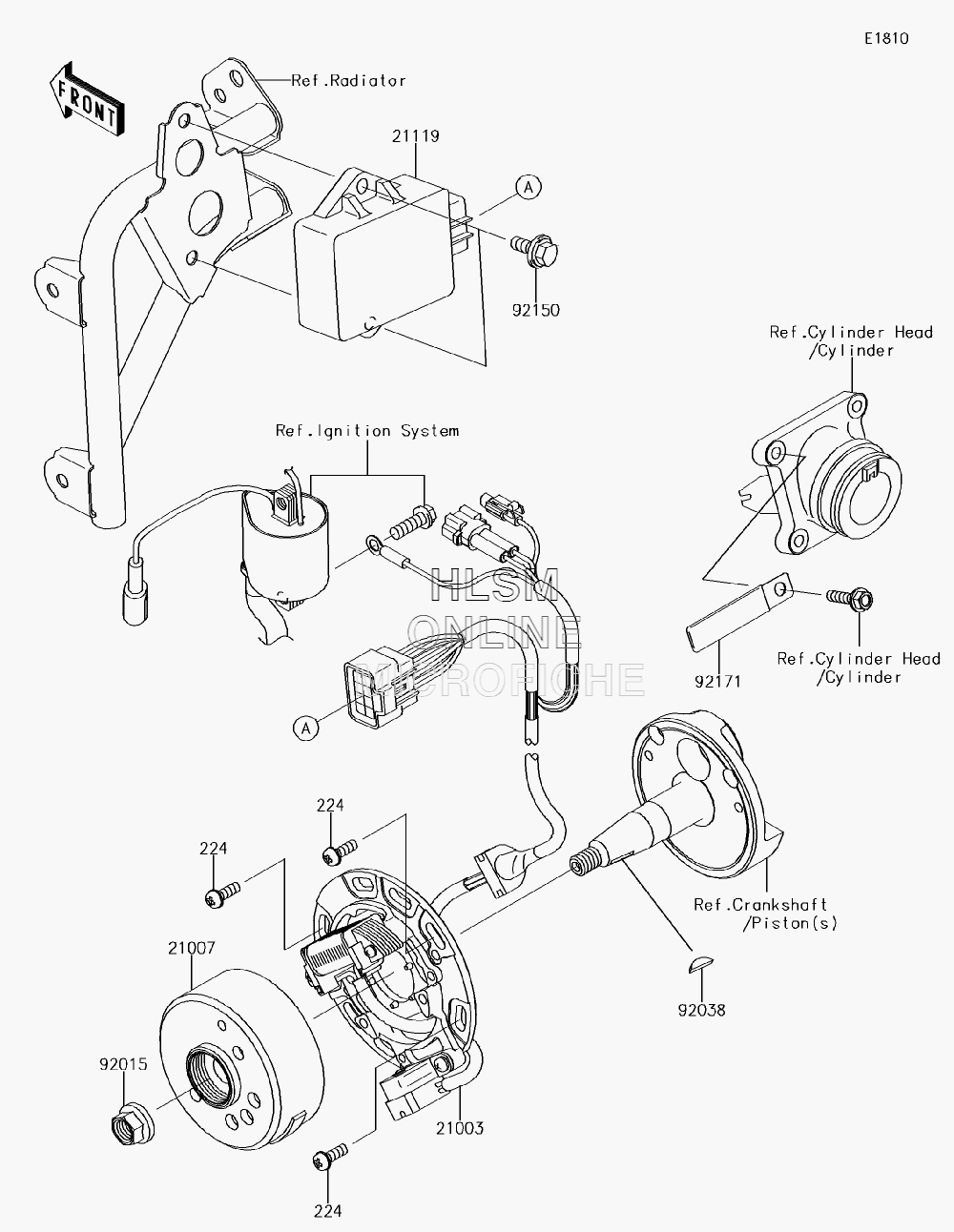

GENERATOR для Kawasaki KX100 (KX100FEF) - 2014 года выпуска
-
№АртикулНазвание
-
2100321003-0150 STATORSTATOR
-
2100721007-0073 ROTORROTOR
-
2111921119-0588 IGNITERIGNITER
-
224224AA0614 SCREW-PAN-WP-CROS, 6X14SCREW-PAN-WP-CROS, 6X14
-
9201592015-077 NUT, FLANGED, 10MMNUT, FLANGED, 10MM
-
9203892038-001 KEY, WOODRUFFKEY, WOODRUFF
-
9215092150-1506 BOLT, FLANGED, 6X16BOLT, FLANGED, 6X16
-
9217192171-0652 CLAMP, L=60CLAMP, L=60
