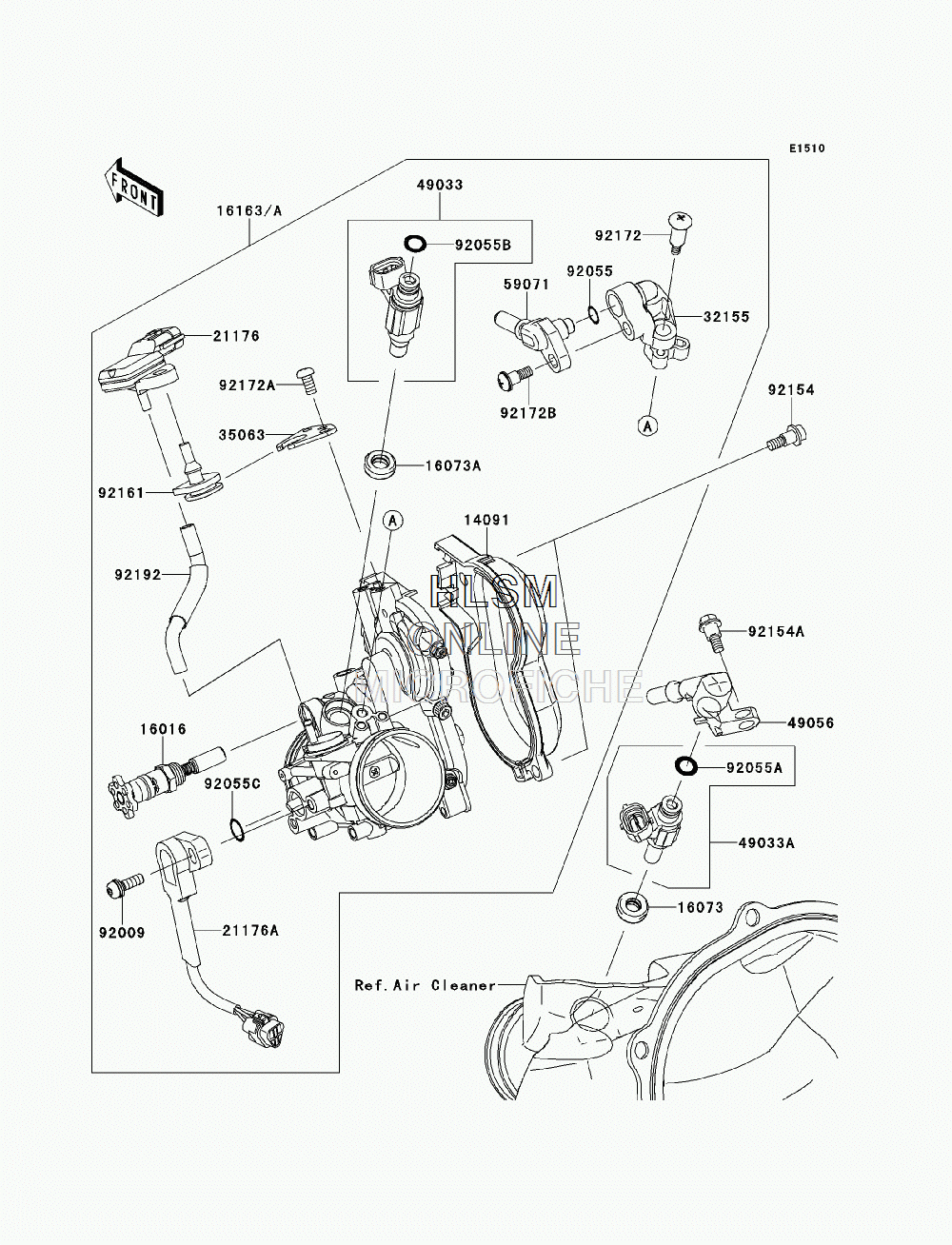

THROTTLE ASSY для Kawasaki KX250F (KX250ZEF) - 2014 года выпуска
-
№АртикулНазвание
-
1409114091-1815 COVER, THROTTLE DUSTCOVER, THROTTLE DUST
-
1601616016-0025 PLUNGERPLUNGER
-
1607316073-0129 INSULATORINSULATOR
-
16073A16073-3707 INSULATORINSULATOR
-
16163A16163-0797 THROTTLE-ASSYTHROTTLE-ASSY
-
2117621176-0058 SENSOR, PRESSURESENSOR, PRESSURE
-
21176A21176-0129 SENSOR, THROTTLE POSITIONSENSOR, THROTTLE POSITION
-
3215532155-0112 PIPE, FUELPIPE, FUEL
-
3506335063-0647 STAYSTAY
-
4903349033-0026 NOZZLE-INJECTIONNOZZLE-INJECTION
-
49033A49033-0560 NOZZLE-INJECTIONNOZZLE-INJECTION
-
4905649056-0036 PIPE-INJECTIONPIPE-INJECTION
-
5907159071-0049 JOINTJOINT
-
9200992009-1981 SCREW, THROTTLE SENSORSCREW, THROTTLE SENSOR
-
9205592055-0064 RING-ORING-O
-
92055A92055-0124 RING-O, INJECTION NOZZLERING-O, INJECTION NOZZLE
-
92055B92055-1622 RING-O, INJECTION NOZZLERING-O, INJECTION NOZZLE
-
92055C92055-1671 RING-ORING-O
-
9215492154-0243 BOLTBOLT
-
92154A92154-1021 BOLT, FLANGED, 5X8BOLT, FLANGED, 5X8
-
9216192161-0041 DAMPERDAMPER
-
9217292172-0064 SCREW, PIPE INJECTIONSCREW, PIPE INJECTION
-
92172A92172-0438 SCREWSCREW
-
92172B92172-0776 SCREWSCREW
-
9219292192-0823 TUBETUBE
