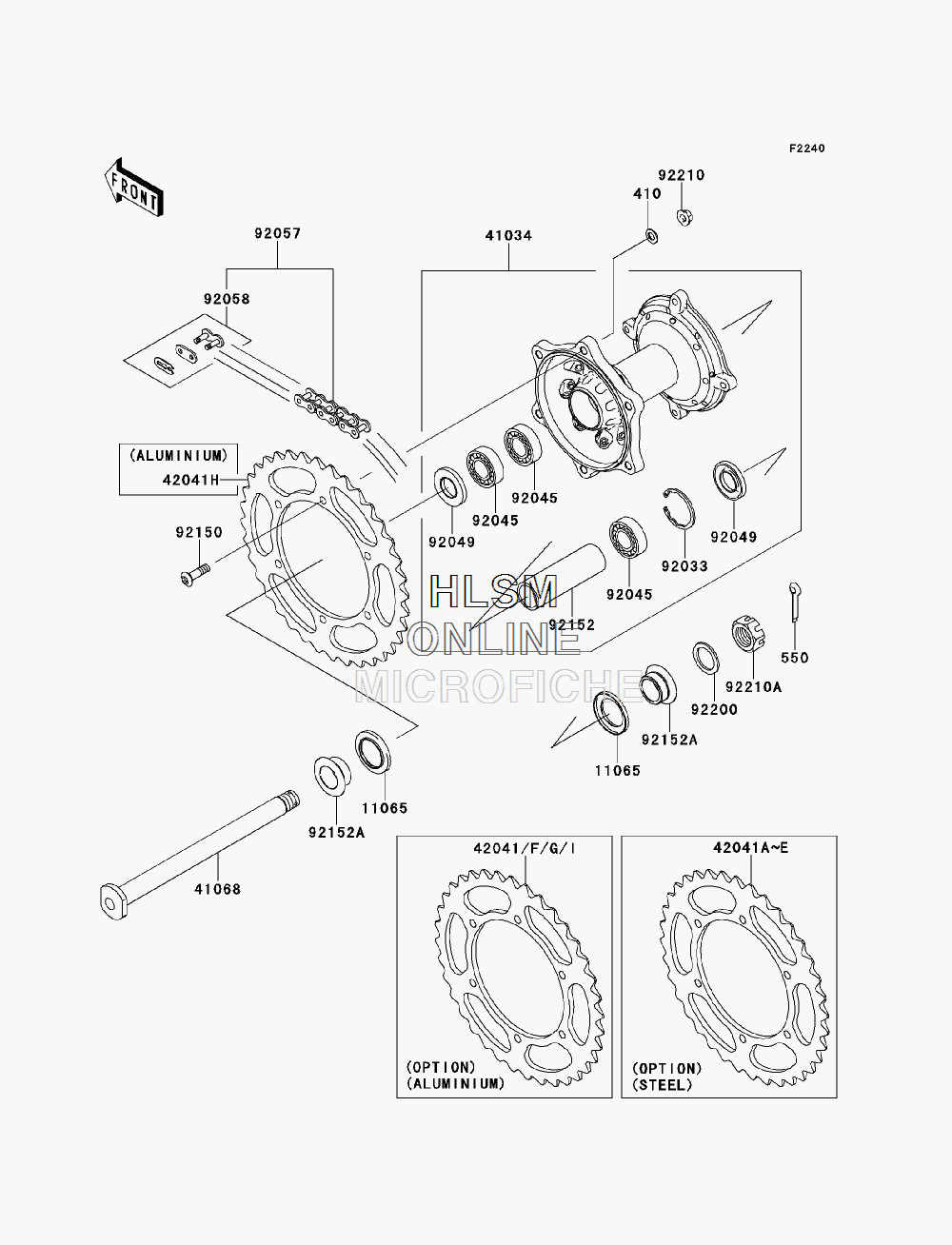

REAR HUB для Kawasaki KX450F (KX450FEF) - 2014 года выпуска
-
№АртикулНазвание
-
410410AA0800 WASHER-PLAIN-SMALL, 8MMWASHER-PLAIN-SMALL, 8MM
-
550550AA3035 PIN-COTTER, 3.0X35PIN-COTTER, 3.0X35
-
1106511065-1253 CAP, AXLECAP, AXLE
-
4103441034-0057 DRUM-ASSY, REAR BRAKEDRUM-ASSY, REAR BRAKE
-
4106841068-1466 AXLE, REARAXLE, REAR
-
4204142041-0001 SPROCKET-HUB, 52T, AL (OPTION)SPROCKET-HUB, 52T, AL (OPTION)
-
42041A42041-1383 SPROCKET-HUB, 48T, STEEL (OPTION)SPROCKET-HUB, 48T, STEEL (OPTION)
-
42041B42041-1384 SPROCKET-HUB, 49T, STEEL (OPTION)SPROCKET-HUB, 49T, STEEL (OPTION)
-
42041C42041-1408 SPROCKET-HUB, 50T, STEEL (OPTION)SPROCKET-HUB, 50T, STEEL (OPTION)
-
42041D42041-1428 SPROCKET-HUB, 51T, STEEL (OPTION)SPROCKET-HUB, 51T, STEEL (OPTION)
-
42041E42041-1429 SPROCKET-HUB, 52T, STEEL (OPTION)SPROCKET-HUB, 52T, STEEL (OPTION)
-
42041F42041-1448 SPROCKET-HUB, 48T, AL (OPTION)SPROCKET-HUB, 48T, AL (OPTION)
-
42041G42041-1449 SPROCKET-HUB, 49T, AL (OPTION)SPROCKET-HUB, 49T, AL (OPTION)
-
42041H42041-1450 SPROCKET-HUB, 50T, ALSPROCKET-HUB, 50T, AL
-
42041I42041-1451 SPROCKET-HUB, 51T, AL (OPTION)SPROCKET-HUB, 51T, AL (OPTION)
-
9203392033-1041 RING-SNAP, 42MMRING-SNAP, 42MM
-
9204592045-1446 BEARING-BALL, 69052RSBEARING-BALL, 69052RS
-
9204992049-1614 SEAL-OILSEAL-OIL
-
9205792057-0192 CHAIN, DRIVE, DID520DMA4X114LCHAIN, DRIVE, DID520DMA4X114L
-
9205892058-1074 JOINT-CHAIN, DRIVEJOINT-CHAIN, DRIVE
-
9215092150-1978 BOLT, SOCKET, 8X28BOLT, SOCKET, 8X28
-
9215292152-1427 COLLAR, REAR BRAKE DRUM, L=106.5COLLAR, REAR BRAKE DRUM, L=106.5
-
92152A92152-1544 COLLAR, REAR HUBCOLLAR, REAR HUB
-
9220092200-1623 WASHER, 22.5X35X2.3WASHER, 22.5X35X2.3
-
9221092210-0493 NUT, FLANGED, LOCK, 8MMNUT, FLANGED, LOCK, 8MM
-
92210A92210-1411 NUT, CASTLE, 22MMNUT, CASTLE, 22MM
