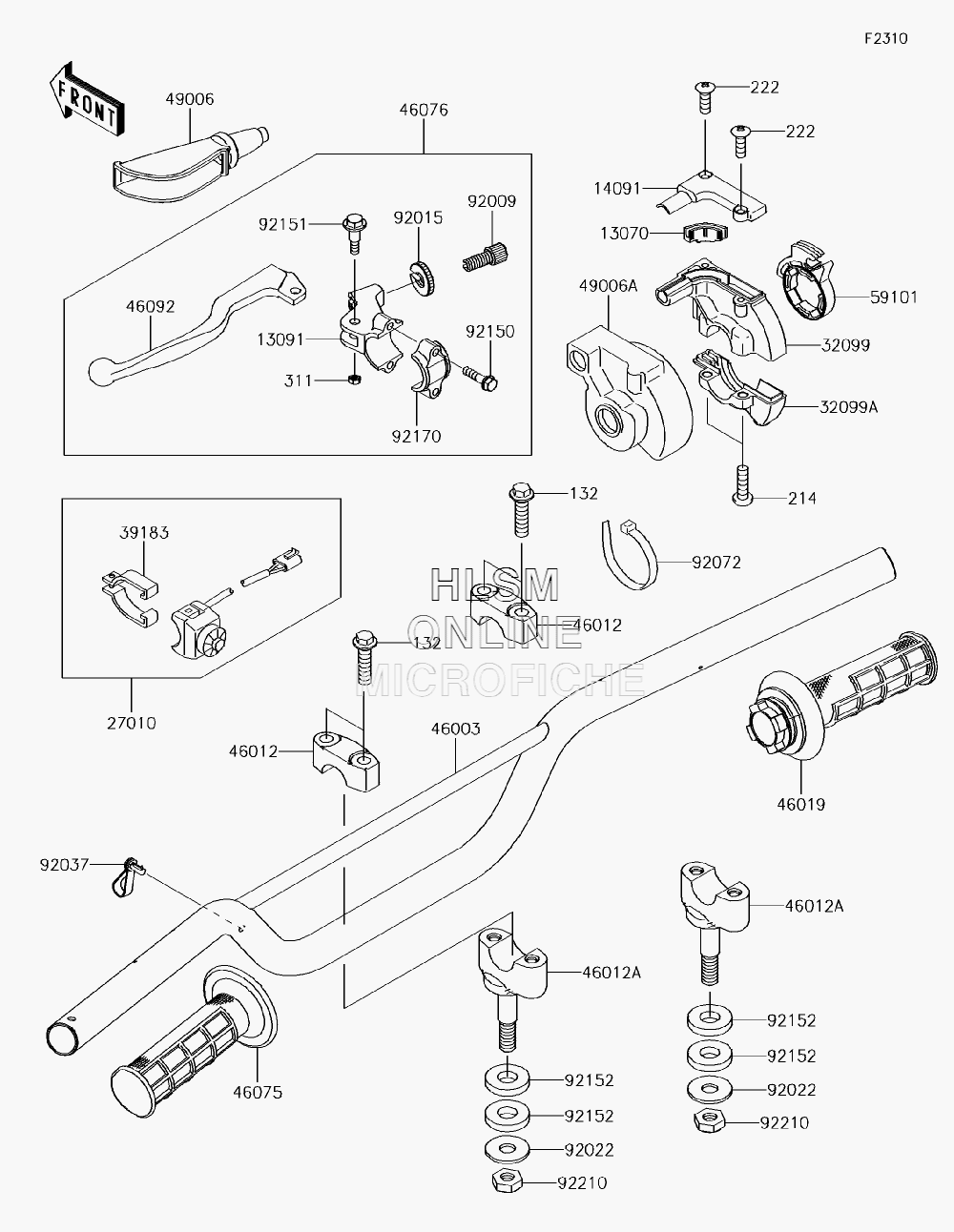

HANDLEBAR для Kawasaki KX85 (KX85CEF) - 2014 года выпуска
-
№АртикулНазвание
-
1307013070-0083 GUIDE, THROTTLEGUIDE, THROTTLE
-
1309113091-1728 HOLDER, CLUTCH LEVERHOLDER, CLUTCH LEVER
-
132132BA0835 BOLT-FLANGED-SMALL, 8X35BOLT-FLANGED-SMALL, 8X35
-
1409114091-0873 COVER, THROTTLE CASE, UPPERCOVER, THROTTLE CASE, UPPER
-
214214AB0518 SCREW-PAN+-, 5X18SCREW-PAN+-, 5X18
-
222222AB0412 SCREW-CSK-RD-CROS, 4X12SCREW-CSK-RD-CROS, 4X12
-
2701027010-0047 SWITCH, ENGINE STOPSWITCH, ENGINE STOP
-
311311AA0500 NUT-HEX, 5MMNUT-HEX, 5MM
-
3209932099-0037 CASE, THROTTLE, UPPERCASE, THROTTLE, UPPER
-
32099A32099-0038 CASE, THROTTLE, LOWERCASE, THROTTLE, LOWER
-
3918339183-1059 BAND-ASSY, SWITCHBAND-ASSY, SWITCH
-
4600346003-0205-18R HANDLE, (F.S.BLACK) (FOR 777)HANDLE, (F.S.BLACK) (FOR 777)
-
4601246012-0011-21 HOLDER-HANDLE, UPPER, (F.BLACK) (FOR 777)HOLDER-HANDLE, UPPER, (F.BLACK) (FOR 777)
-
46012A46012-0342-21 HOLDER-HANDLE, LOWER, (F.BLACK) (FOR 777)HOLDER-HANDLE, LOWER, (F.BLACK) (FOR 777)
-
4601946019-0023 GRIP-ASSY, THROTTLEGRIP-ASSY, THROTTLE
-
4607546075-0072 GRIP, LEFT HANDGRIP, LEFT HAND
-
4607646076-1203 LEVER-ASSY-GRIP, CLUTCHLEVER-ASSY-GRIP, CLUTCH
-
4609246092-1165 LEVER-GRIP, CLUTCHLEVER-GRIP, CLUTCH
-
4900649006-1017 BOOT, LEVER HOLDERBOOT, LEVER HOLDER
-
49006A49006-1097 BOOT, THROTTLE CASEBOOT, THROTTLE CASE
-
5910159101-0003 REEL, THROTTLEREEL, THROTTLE
-
9200992009-1476 SCREW, CABLE ADJUST, 8MMSCREW, CABLE ADJUST, 8MM
-
9201592015-1596 NUT, CABLE ADJUST LOCK, 8MMNUT, CABLE ADJUST LOCK, 8MM
-
9202292022-1088 WASHER, 10.2X28X2WASHER, 10.2X28X2
-
9203792037-1163 CLAMP, SPEED, L=58CLAMP, SPEED, L=58
-
9207292072-0055 BAND, L=100BAND, L=100
-
9215092150-1474 BOLTBOLT
-
9215192151-1103 BOLT, LEVER SET, 5MMBOLT, LEVER SET, 5MM
-
9215292152-1716 COLLAR, 12.5X28X5COLLAR, 12.5X28X5
-
9217092170-1226 CLAMP, LEVER HOLDERCLAMP, LEVER HOLDER
-
9221092210-1184 NUT, LOCK, 10MMNUT, LOCK, 10MM
