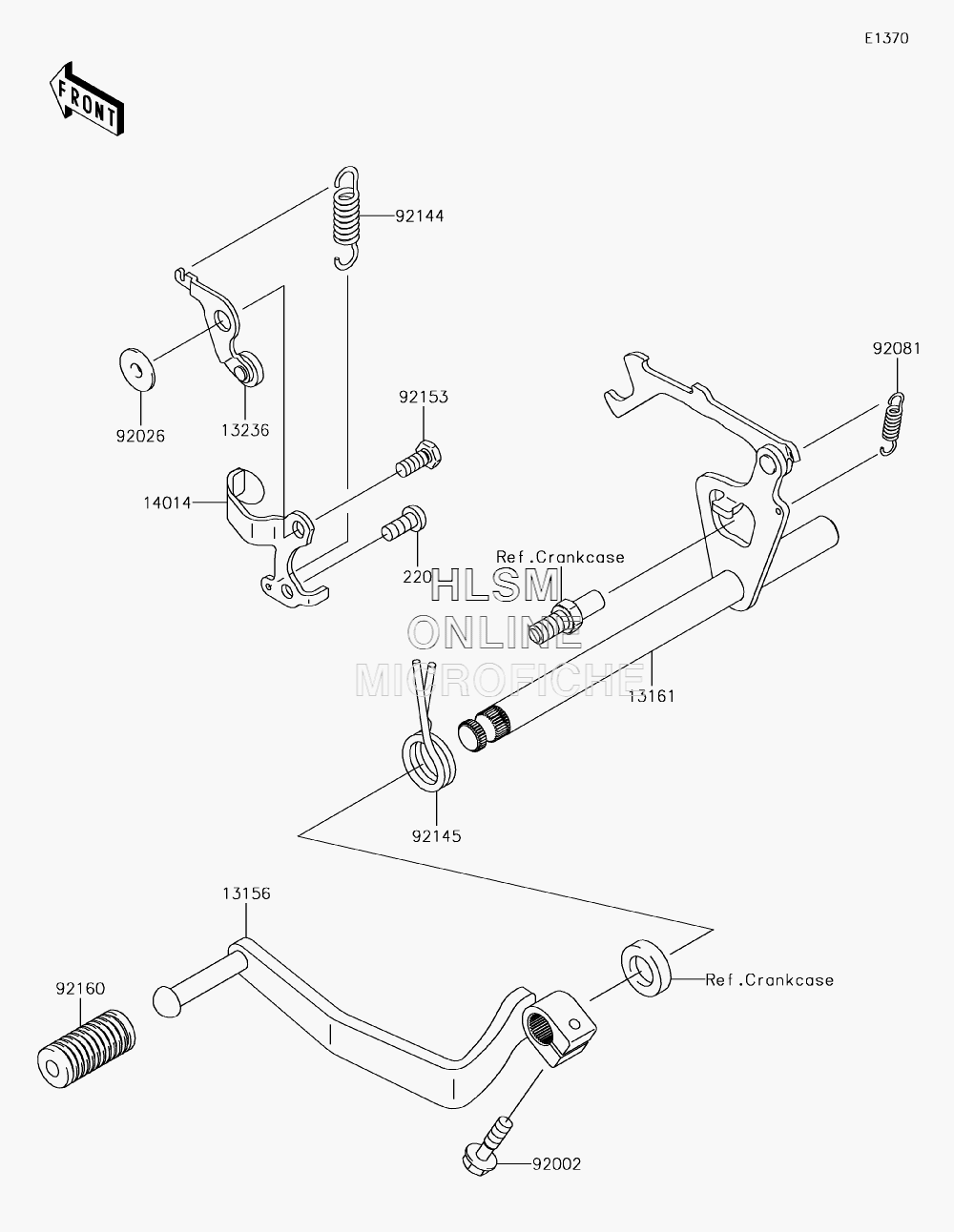

GEAR CHANGE MECHANISM для Kawasaki KLX110L (KLX110DFF) - 2015 года выпуска
-
№АртикулНазвание
-
1315613156-0144 LEVER-CHANGELEVER-CHANGE
-
1316113161-0072 LEVER-COMP-CHANGE SHAFTLEVER-COMP-CHANGE SHAFT
-
1323613236-1256 LEVER-COMP, POSITIONLEVER-COMP, POSITION
-
1401414014-0037 PLATE-POSITIONPLATE-POSITION
-
220220AA0614 SCREW-PAN-CROS, 6X14SCREW-PAN-CROS, 6X14
-
9200292002-1237 BOLT, 6X20BOLT, 6X20
-
9202692026-1217 SPACERSPACER
-
9208192081-076 SPRING, CHANGE LEVERSPRING, CHANGE LEVER
-
9214492144-1590 SPRINGSPRING
-
9214592145-0757 SPRINGSPRING
-
9215392153-0571 BOLT, 6X14BOLT, 6X14
-
9216092160-1036 DAMPER, CHANGE PEDALDAMPER, CHANGE PEDAL
