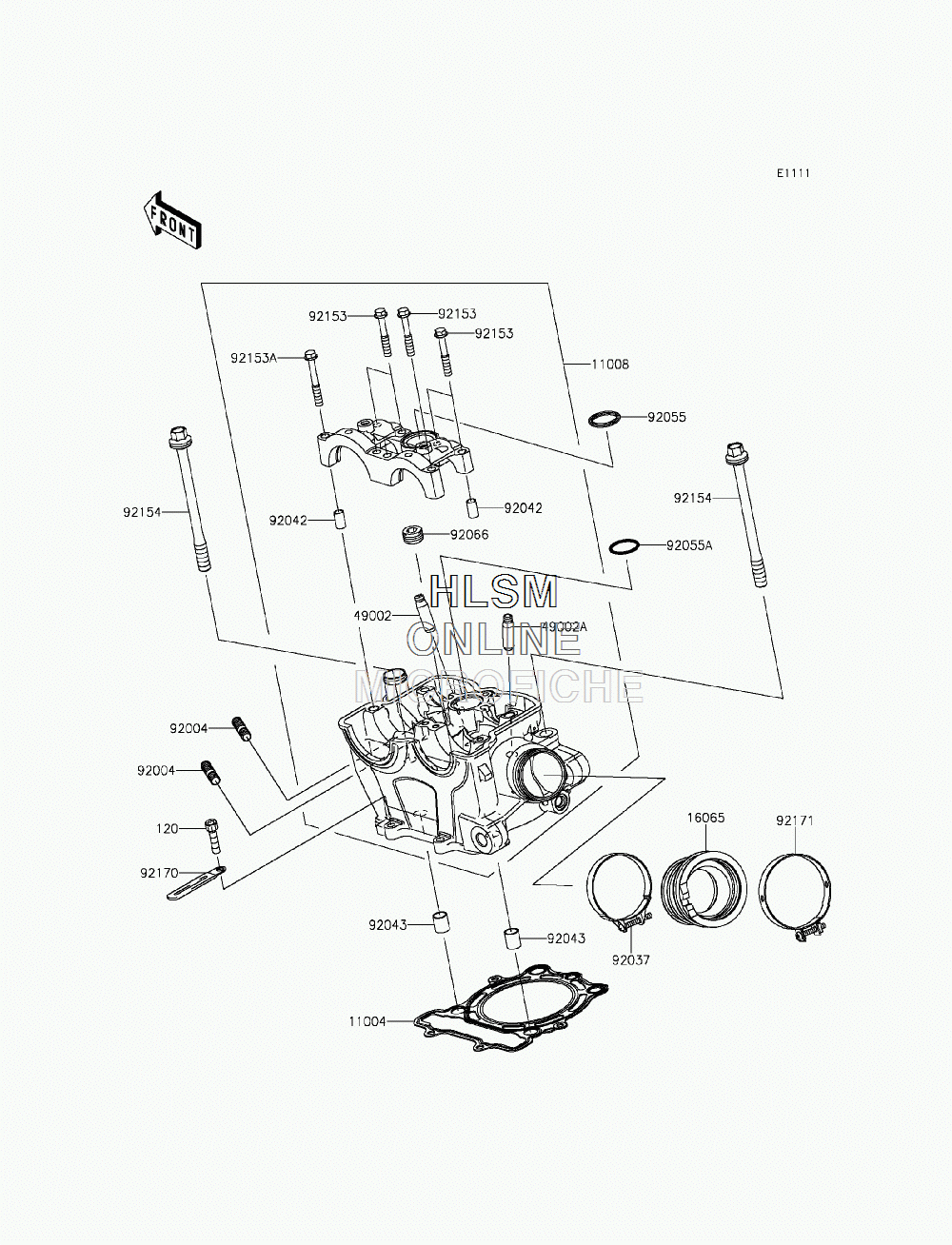

CYLINDER HEAD для Kawasaki KX250F (KX250ZFF) - 2015 года выпуска
-
№АртикулНазвание
-
120120CA0625 BOLT-SOCKET,6X25BOLT-SOCKET,6X25
-
1100411004-0738 GASKET-HEADGASKET-HEAD
-
1100811008-0842 HEAD-COMP-CYLINDERHEAD-COMP-CYLINDER
-
1606516065-0074 HOLDER-CARBURETORHOLDER-CARBURETOR
-
4900249002-0003 GUIDE-VALVEGUIDE-VALVE
-
49002A49002-0016 GUIDE-VALVEGUIDE-VALVE
-
9200492004-0025 STUD,8X22STUD,8X22
-
9203792037-1523 CLAMPCLAMP
-
9204292042-007 PIN,DOWEL,6.3X8X14PIN,DOWEL,6.3X8X14
-
9204392043-4009 PIN,10.1X12X14PIN,10.1X12X14
-
9205592055-0150 RING-O,24.7X2.4RING-O,24.7X2.4
-
92055A92055-0729 RING-O,25X1.9X1.35RING-O,25X1.9X1.35
-
9206692066-3777 PLUG,10X16.6PLUG,10X16.6
-
9215392153-0338 BOLT,6X38BOLT,6X38
-
92153A92153-0339 BOLT,6X45BOLT,6X45
-
9215492154-1094 BOLT,FLANGED,10X122BOLT,FLANGED,10X122
-
9217092170-1514 CLAMPCLAMP
-
9217192171-0857 CLAMP,62MMCLAMP,62MM
