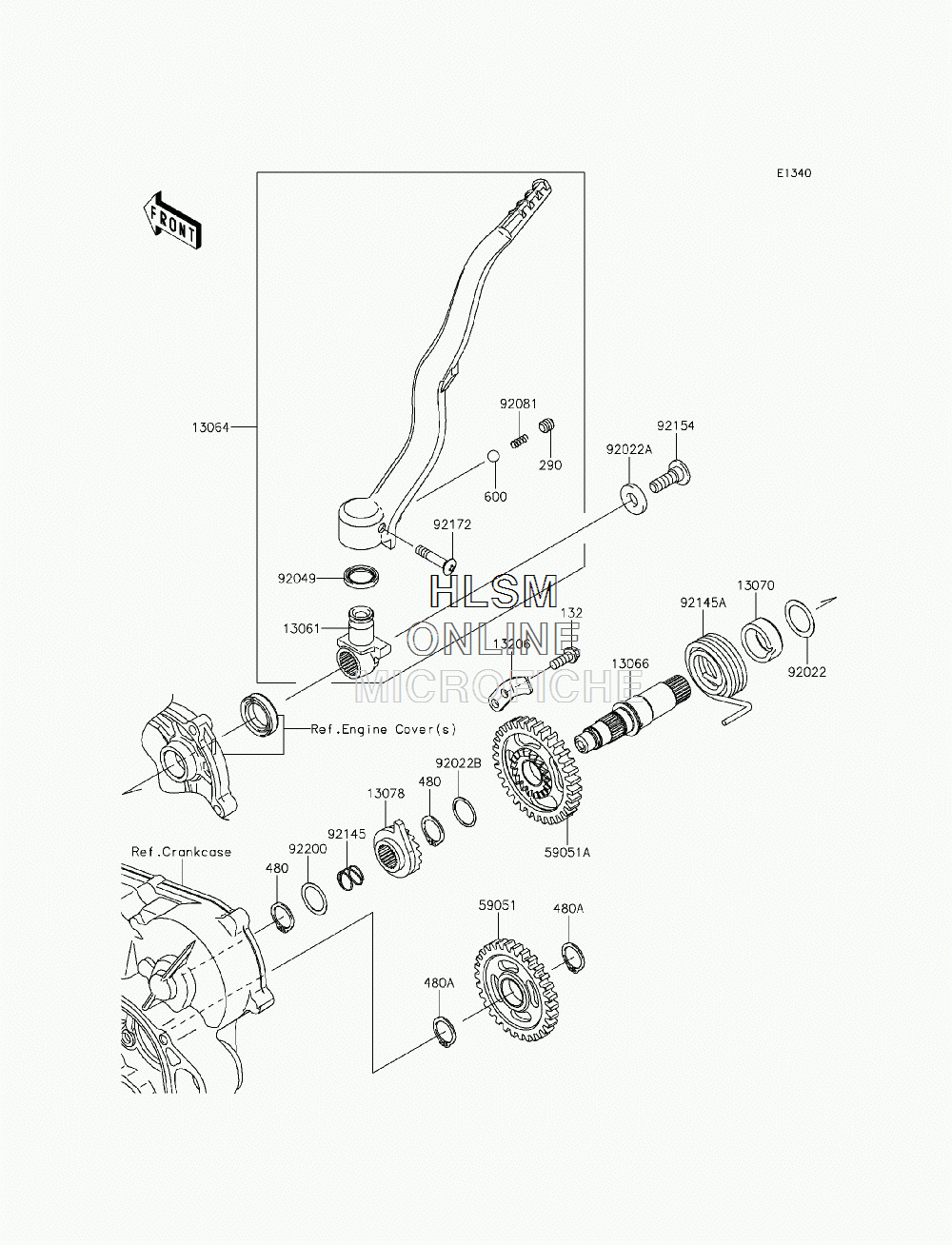

KICKSTARTER MECHANISM для Kawasaki KX450F (KX450FFF) - 2015 года выпуска
-
№АртикулНазвание
-
132132BA0616 BOLT-FLANGED-SMALL,6X16BOLT-FLANGED-SMALL,6X16
-
290290CA0808 SCREW-SET-SOCKET,8X8SCREW-SET-SOCKET,8X8
-
480480J1800 CIRCLIP-TYPE-C,18MMCIRCLIP-TYPE-C,18MM
-
480A480J1900 CIRCLIP-TYPE-C,19MMCIRCLIP-TYPE-C,19MM
-
600600A0800 BALL-STEEL,1/4BALL-STEEL,1/4
-
1306113061-0146 BOSSBOSS
-
1306413064-0051 LEVER-ASSY-KICKLEVER-ASSY-KICK
-
1306613066-0010 SHAFT-KICKSHAFT-KICK
-
1307013070-1378 GUIDE,KICK SPRINGGUIDE,KICK SPRING
-
1307813078-0558 RATCHETRATCHET
-
1320613206-0007 GUIDE-KICKGUIDE-KICK
-
5905159051-0030 GEAR-SPUR,30TGEAR-SPUR,30T
-
59051A59051-0046 GEAR-SPUR,33TGEAR-SPUR,33T
-
9202292022-1885 WASHER,20.3X28.0X0.5WASHER,20.3X28.0X0.5
-
92022A92022-1944 WASHER,10X22X3.2WASHER,10X22X3.2
-
92022B92022-271 WASHER,18.3X22X0.5WASHER,18.3X22X0.5
-
9204992049-1387 SEAL-OIL,KICK PEDALSEAL-OIL,KICK PEDAL
-
9208192081-020 SPRING,KICK PEDALSPRING,KICK PEDAL
-
9214592145-0162 SPRINGSPRING
-
92145A92145-0297 SPRING, RETURNSPRING, RETURN
-
9215492154-0898 BOLT,SOCKET,8X25BOLT,SOCKET,8X25
-
9217292172-1088 SCREW,6X30SCREW,6X30
-
9220092200-0075 WASHER,18.3X24X0.5WASHER,18.3X24X0.5
