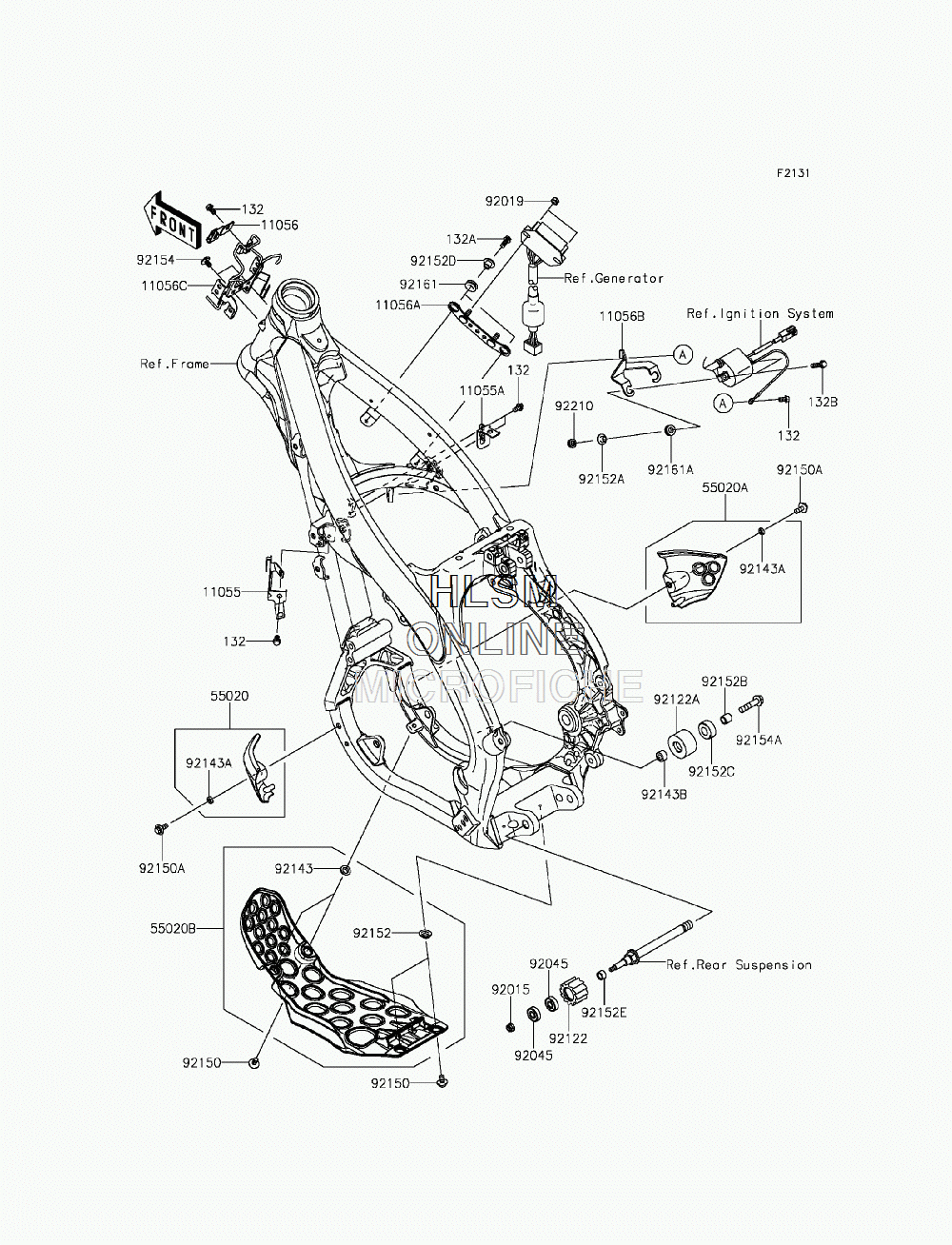

FRAME FITTING(S) для Kawasaki KX250F (KX250ZGF) - 2016 года выпуска
-
№АртикулНазвание
-
132132BA0610 BOLT-FLANGED-SMALL,6X10BOLT-FLANGED-SMALL,6X10
-
132A132BA0614 BOLT-FLANGED-SMALL,6X14BOLT-FLANGED-SMALL,6X14
-
132B132BA0625 BOLT-FLANGED-SMALL,6X25BOLT-FLANGED-SMALL,6X25
-
1105511055-1540 BRACKET,COUPLERBRACKET,COUPLER
-
11055A11055-1541 BRACKETBRACKET
-
1105611056-0070 BRACKET,DIAG CONNECTORBRACKET,DIAG CONNECTOR
-
11056A11056-0624 BRACKET, REGULATORBRACKET, REGULATOR
-
11056B11056-0961 BRACKET,IG. COILBRACKET,IG. COIL
-
11056C11056-1657 BRACKET,ECUBRACKET,ECU
-
5502055020-0435-6C GUARD,ENGINE,SIDE, LEFT HAND,(EBONY)GUARD,ENGINE,SIDE, LEFT HAND,(EBONY)
-
55020A55020-0436-6C GUARD,ENGINE,SIDE, RIGHT HAND,(EBONY)GUARD,ENGINE,SIDE, RIGHT HAND,(EBONY)
-
55020B55020-0443-6C GUARD,ENGINE,LOWER,(EBONY)GUARD,ENGINE,LOWER,(EBONY)
-
9201592015-1339 NUT,LOCK,FLANGED,6MMNUT,LOCK,FLANGED,6MM
-
9201992019-008 NUT,LOCK,6MMNUT,LOCK,6MM
-
9204592045-0060 BEARING-BALL,608LLU/2ABEARING-BALL,608LLU/2A
-
9212292122-0016 ROLLER,CHAIN GUIDEROLLER,CHAIN GUIDE
-
92122A92122-0042 ROLLER,CHAINROLLER,CHAIN
-
9214392143-1196 COLLARCOLLAR
-
92143A92143-1307 COLLARCOLLAR
-
92143B92143-1642 COLLAR,8.5X15X9COLLAR,8.5X15X9
-
9215092150-1435 BOLT,6X12BOLT,6X12
-
92150A92150-1506 BOLT,FLANGED,6X16BOLT,FLANGED,6X16
-
9215292152-0052 COLLARCOLLAR
-
92152A92152-0620 COLLARCOLLAR
-
92152B92152-0944 COLLAR,8.5X12.5X12.5COLLAR,8.5X12.5X12.5
-
92152C92152-0945 COLLAR,12.7X27.2X12COLLAR,12.7X27.2X12
-
92152D92152-1449 COLLARCOLLAR
-
92152E92152-1624 COLLAR,8.1X12.5X7.5COLLAR,8.1X12.5X7.5
-
9215492154-0774 BOLT,SOCKET,6X10BOLT,SOCKET,6X10
-
92154A92154-0913 BOLT,FLANGED,8X35BOLT,FLANGED,8X35
-
9216192161-0266 DAMPERDAMPER
-
92161A92161-0878 DAMPER,8.5X15.5X5.5DAMPER,8.5X15.5X5.5
-
9221092210-0630 NUT,FLANGED,6MMNUT,FLANGED,6MM
