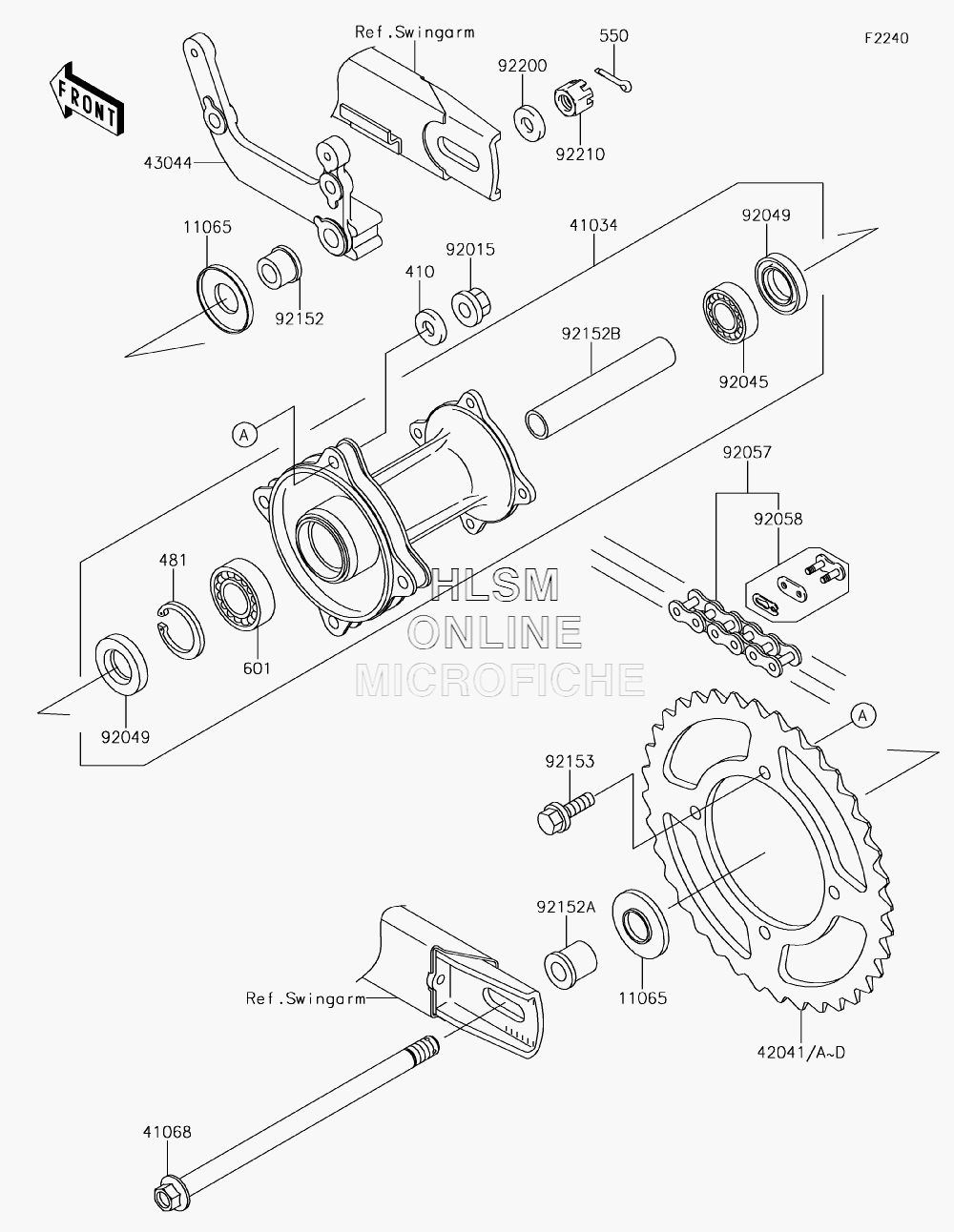

REAR HUB W/CHAIN для Kawasaki KX65 (KX65AGF) - 2016 года выпуска
-
№АртикулНазвание
-
1106511065-1137 CAPCAP
-
410410AA0800 WASHER-PLAIN-SMALL, 8MMWASHER-PLAIN-SMALL, 8MM
-
4103441034-1303 DRUM-ASSY, REAR BRAKEDRUM-ASSY, REAR BRAKE
-
4106841068-1419 AXLE, REARAXLE, REAR
-
4204142041-1526 SPROCKET-HUB, 45T (OPTION)SPROCKET-HUB, 45T (OPTION)
-
42041A42041-1527 SPROCKET-HUB, 46T (OPTION)SPROCKET-HUB, 46T (OPTION)
-
42041B42041-1528 SPROCKET-HUB, 47TSPROCKET-HUB, 47T
-
42041C42041-1529 SPROCKET-HUB, 48T (OPTION)SPROCKET-HUB, 48T (OPTION)
-
42041D42041-1549 SPROCKET-HUB, 49T (OPTION)SPROCKET-HUB, 49T (OPTION)
-
4304443044-1127 HOLDER-COMP-CALIPER, REARHOLDER-COMP-CALIPER, REAR
-
481481J3700 CIRCLIP-TYPE-C, 37MMCIRCLIP-TYPE-C, 37MM
-
550550AA3025 PIN-COTTER, 3.0X25PIN-COTTER, 3.0X25
-
601601B6301UU BEARING-BALL, #6201UUC3BEARING-BALL, #6201UUC3
-
9201592015-1432 NUT, 8MMNUT, 8MM
-
9204592045-1062 BEARING-BALL, TMB201LLUC3/2ABEARING-BALL, TMB201LLUC3/2A
-
9204992049-1257 SEAL-OIL, TC20376.5SEAL-OIL, TC20376.5
-
9205792057-1504 CHAIN, DRIVE, DID420MBK1X110LCHAIN, DRIVE, DID420MBK1X110L
-
9205892058-1073 JOINT-CHAIN, DRIVEJOINT-CHAIN, DRIVE
-
9215292152-1196 COLLAR, AXLE, L=15.5COLLAR, AXLE, L=15.5
-
92152A92152-1198 COLLAR, REAR AXLE, L=22COLLAR, REAR AXLE, L=22
-
92152B92152-1199 COLLAR, REAR BRAKE DRUM, L=89COLLAR, REAR BRAKE DRUM, L=89
-
9215392153-1101 BOLT, FLANGED, 8X28BOLT, FLANGED, 8X28
-
9220092200-1004 WASHER, 12.3X23X2.3WASHER, 12.3X23X2.3
-
9221092210-7501 NUT, 12MMNUT, 12MM
