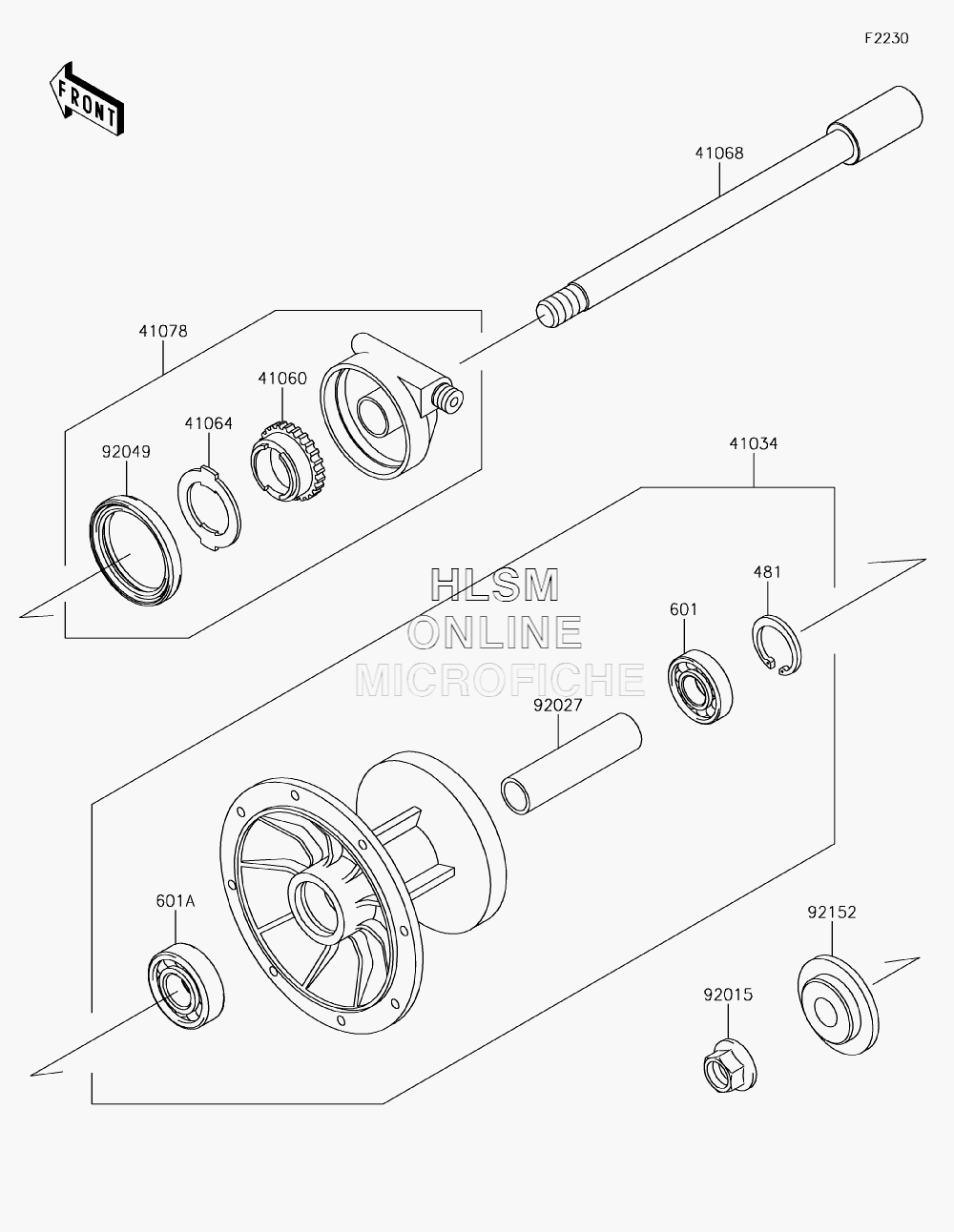

FRONT HUB для Kawasaki KLR650 CAMO (KL650EJFA) - 2018 года выпуска
-
№АртикулНазвание
-
4103441034-0040-21 DRUM-ASSY, FRONT BRAKE, (F.BLACK)DRUM-ASSY, FRONT BRAKE, (F.BLACK)
-
4106041060-1101 GEAR-METER SCREW, 24TGEAR-METER SCREW, 24T
-
4106441064-1051 RECEIVER-SPEEDOMETERRECEIVER-SPEEDOMETER
-
4106841068-0055 AXLE, FRONTAXLE, FRONT
-
4107841078-1051 CASE-ASSY-METER GEARCASE-ASSY-METER GEAR
-
481481J3500 CIRCLIP-TYPE-C, 35MMCIRCLIP-TYPE-C, 35MM
-
601601B6202UG BEARING-BALL, #6202UGBEARING-BALL, #6202UG
-
601A601B6203UG BEARING-BALL, #6203UGBEARING-BALL, #6203UG
-
9201592015-1407 NUT, 14MMNUT, 14MM
-
9202792027-1683 COLLAR, FRONT BRAKE DRUM, L=79COLLAR, FRONT BRAKE DRUM, L=79
-
9204992049-1172 SEAL-OIL, METER GEAR CASESEAL-OIL, METER GEAR CASE
-
9215292152-0850 COLLARCOLLAR
